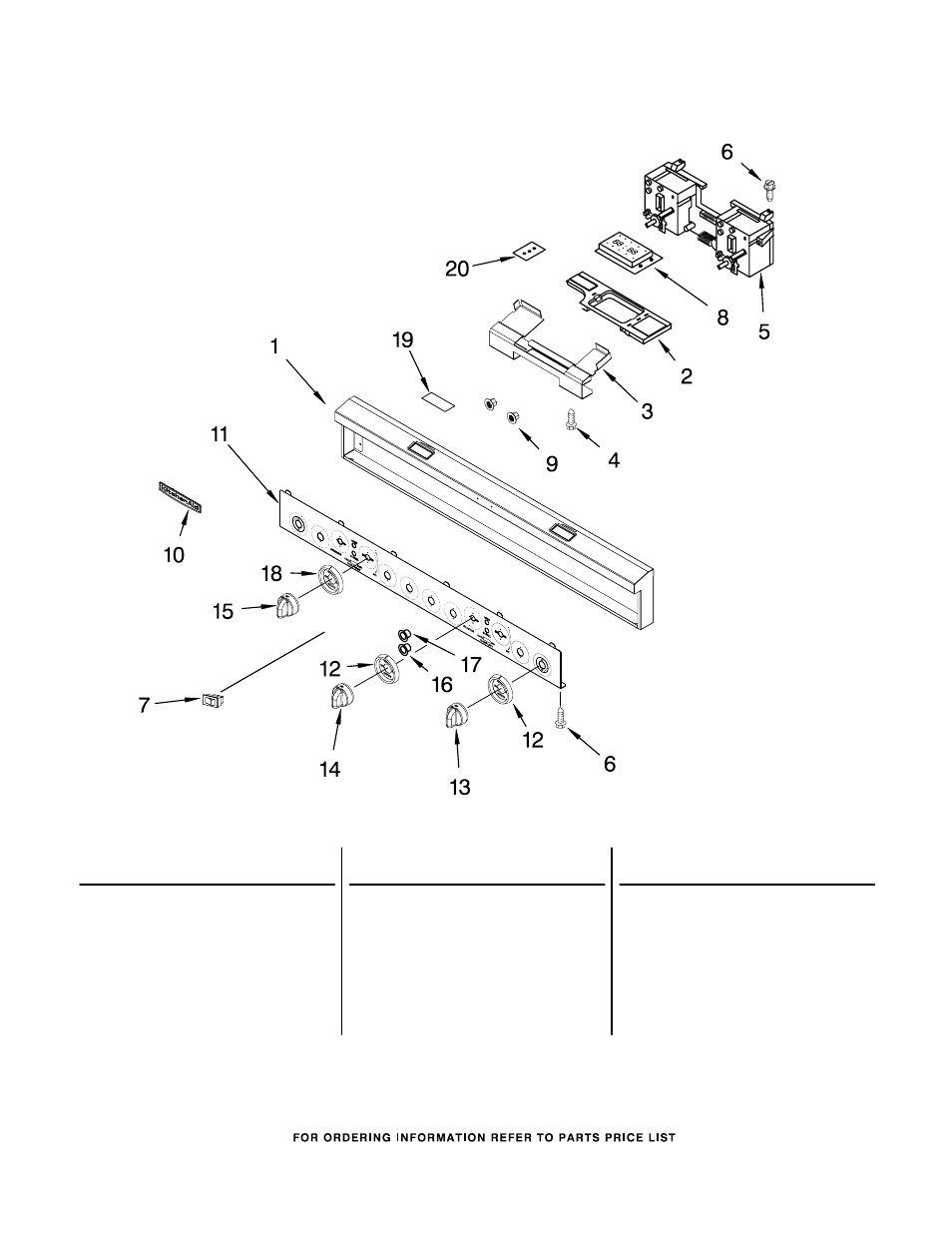

CONTROL PANEL PARTS
5
For Model:KDRP487MSS03
(Stainless Steel)
8186197
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
4457197 Panel, Control
2
4453000 Bracket, Display
3
4457171 Display, Mounting
Bracket
4
3196537 Screw, 8−18 x 3/8
5
8300203 Control, Zodiac
6
4449899 Screw, 6−19 x 1
7
4452842 Switch, Rocker
8
4452999 Module, Display
9
2004333 Palnut
10
2005292 Nameplate
11
4457200 Face, Control
Panel
12
4455192 Bezel, Knob
13
4454970 Knob, Control
14
4455115 Knob, Temp/Time
15
4455141 Knob, Selector
16
4457218 Button, Cancel
4457278 Wire, Jumper
17
4452997 Button, Enter
18
4457152 Bezel, T−Stat
19
4455806 Glass, Display
20
3192439 Seal, Limiter
