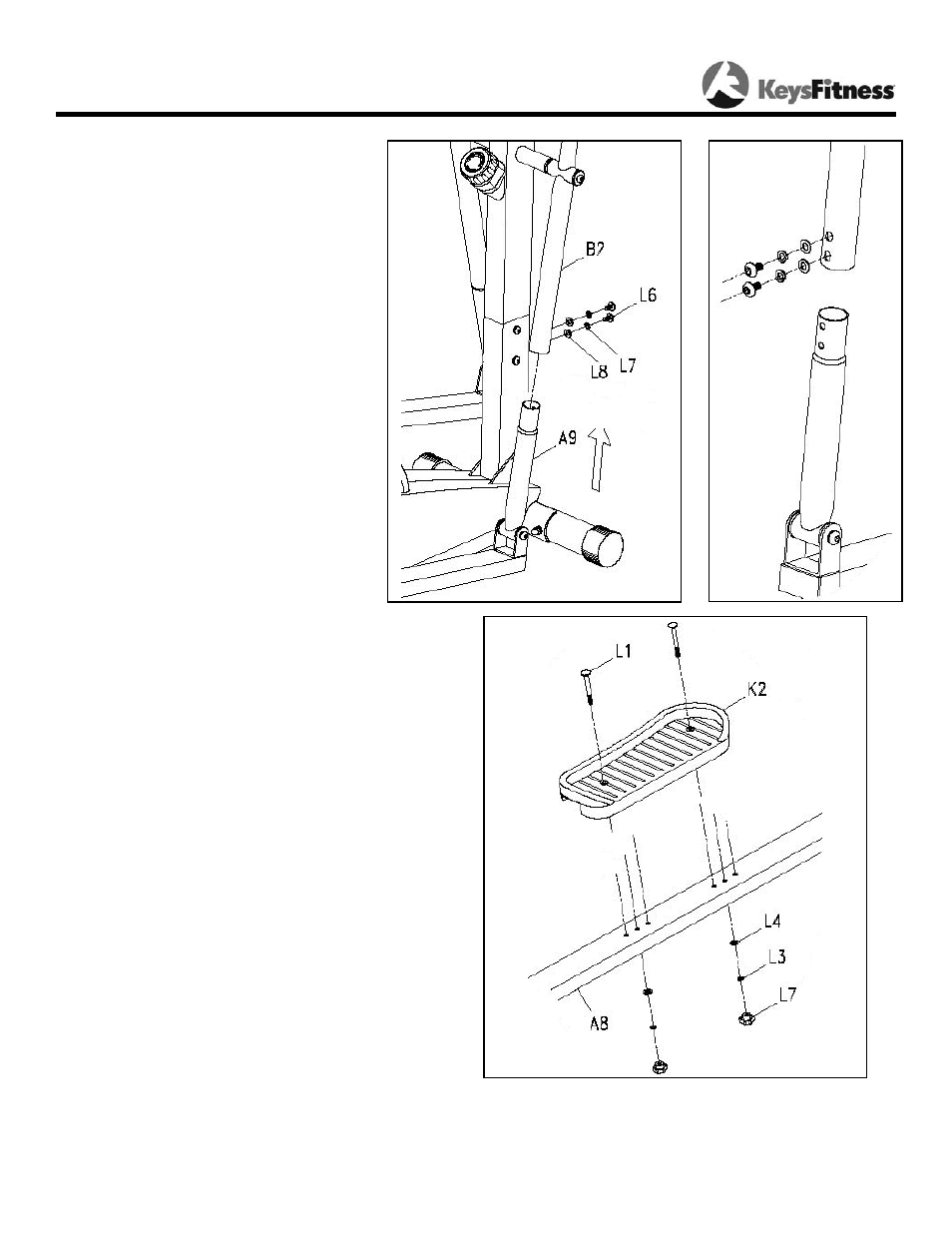

FIGURE 6
Step 1:
Lift up the Connection Tube (A9) and
slide it into the Handlebar (B2). Secure
the Connection Tube (A9) in place using
two Washers M8 (L9), two Spring
Washers M8 (L8), and two Screws
M8*15mm (L6).
Repeat Step 1 for the Left Handlebar (B1).
FIGURE 7
Step 1:
Install the Foot Rest (K2) onto the Right
Foot Rest Support (A8) and secure in
place using two Screws M6*45mm (L1),
two Washers M6 (L4), two Spring
Washers M6 (L3), and two Star
Knob Nuts (L7).
Note: There are 3 adjustable positions to
place the Foot Rest (K2).
Repeat Step 1 to complete the left side.
Assembly
9
Congratulations!
You have completed the assembly of your new Cardiomax 705el Elliptical!
Figure 6a
Figure 6b
Figure 7
