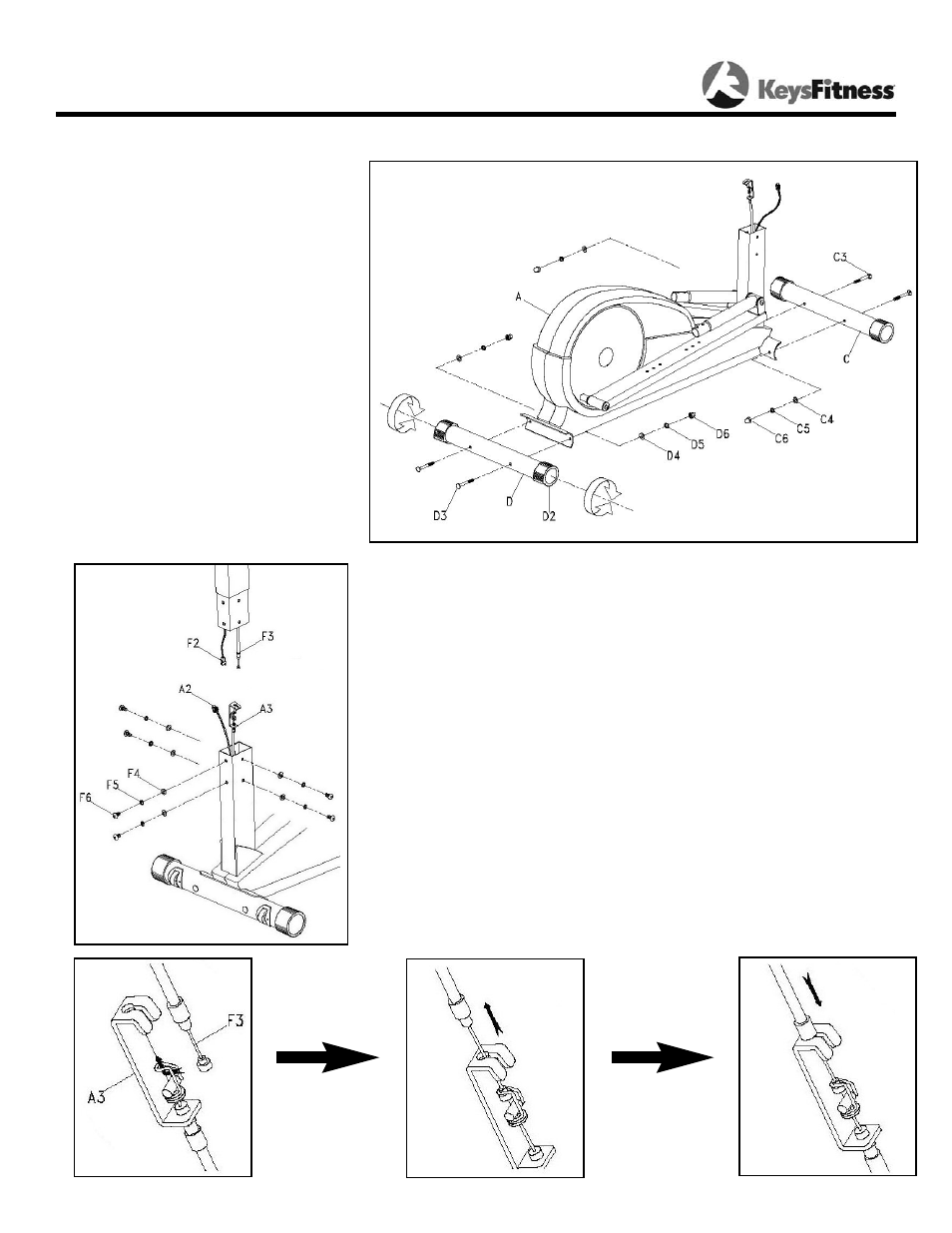

FIGURE 1
Step 1:
Attach the Front Foot (C) to the Base
Frame (A) by using two Carriage Bolts
M8*70mm (C3), two Washers M8 (C4),
two Spring Washers M8 (C5), and two
Cap Nuts M8 (C6).
Step 2:
Attach the Rear Foot (D) to the Base
Frame (A) by using two Carriage Bolts
M8*70mm (D3), two Washers M8 (D4),
two Spring Washers M8 (D5), and two
Cap Nuts M8 (D6).
FIGURE 2
Step 1:
Connect the Lower Sensor Wire (A2) to the Upper Sensor Wire (F2).
Step 2:
Fit the Tension Control Cable (F3) into the slot of the Tension Cable
Bracket (A3). (Figure 2a)
Step 3:
Pull the brass end of the Tension Control Cable (F3) over the lip of
them Tension Cable Bracket (A3). (Figure 2b) The connection should
look like Figure 2c when completed.
Step 4:
Slide the Support Tube (F) into the Base Frame (A) and secure in place
using six Screws M8*15mm (F6), six Spring Washers M8 (F5), and six
Washers M8 (F4).
Assembly
6
Figure 2a
Figure 2
Figure 1
Figure 2b Figure 2c
