Assembly
8

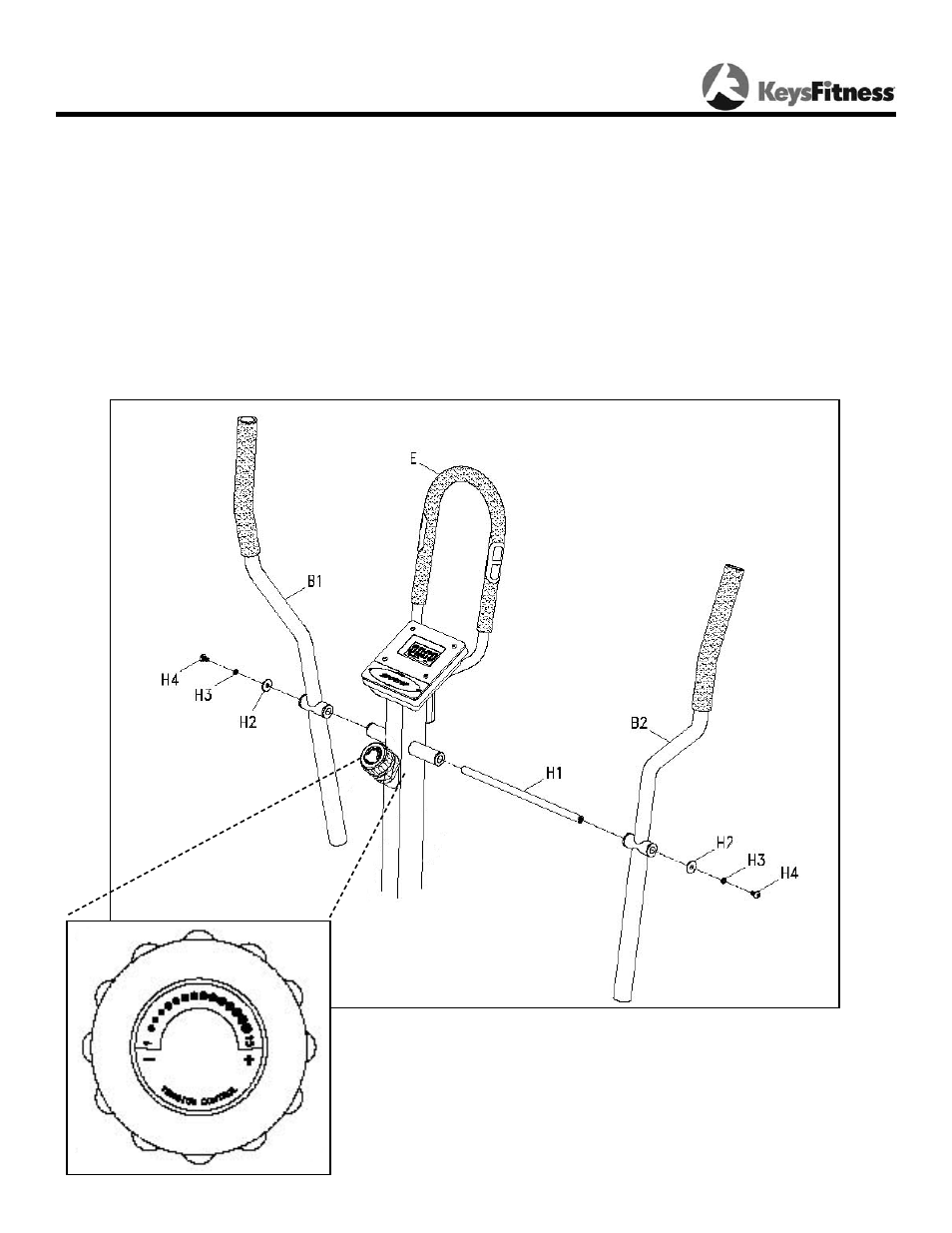

FIGURE 5
Step 1:
Remove the hardware from the Axle Tube (H1).
Step 2:
Push the Axle Tube (H1) through the Support Tube (F2) as shown in Figure 5a.
Step 3:
Push the Left and Right Handlebars (B2 & B1) onto each side of the Axle Tube (H1).
Note: The handles must be positioned so that the upper ends are bent outward.
Step 4:
Secure the assembly in place using 2 Washers M8 (H2), two Spring Washers M8, and two
Allen Bolts M8*15mm.
You can adjust the resistance by turning the Tension Knob (F3).
-
Less Tension
+
More Tension
Figure 5a
Figure 5b
