Assembly
7

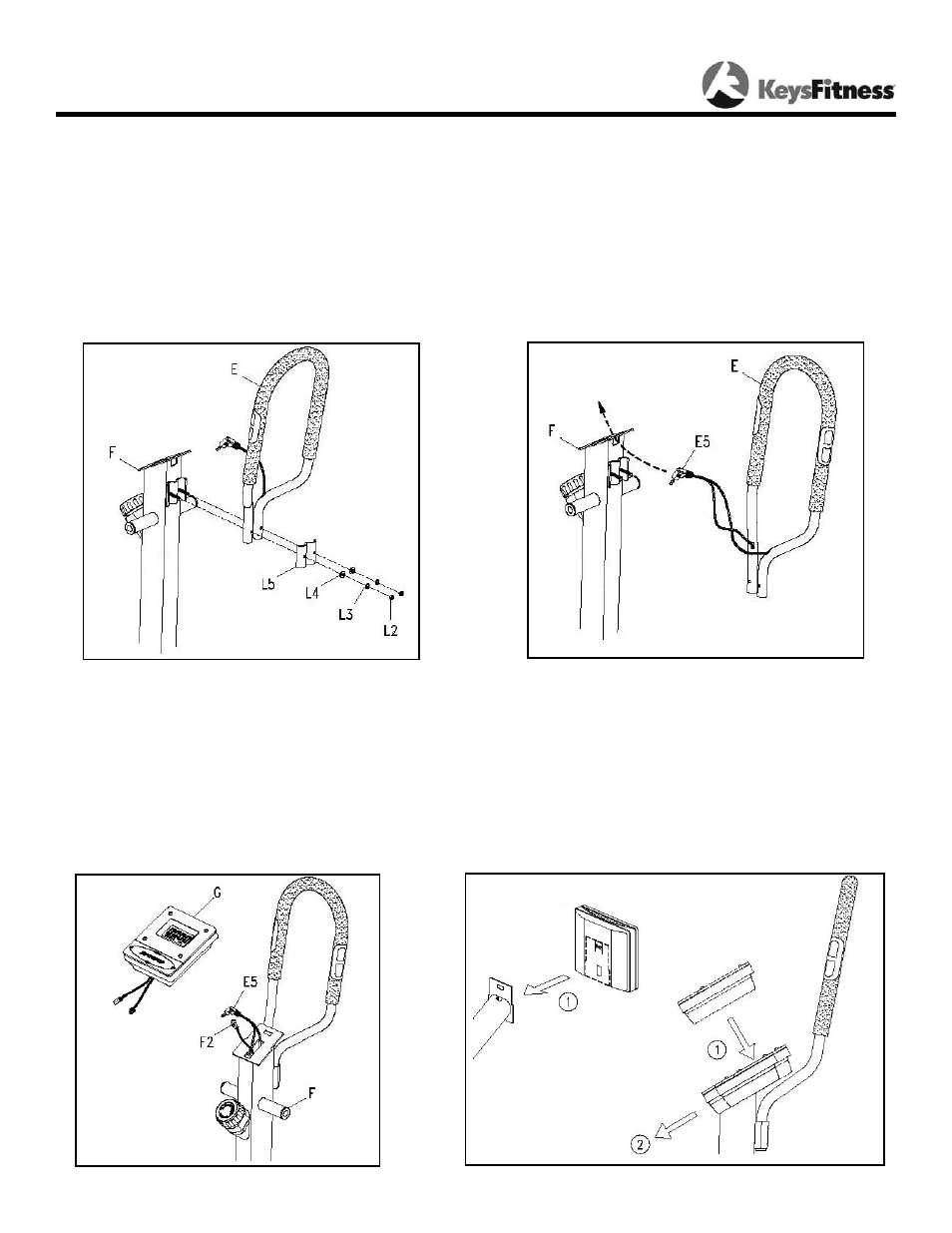

FIGURE 3
Step 1:
Attach the Small Handlebar (E) and the Clamp (L5) to the Support Tube (F) and secure in place using two
Washers M6 (L4), two Spring Washers M6 (L3), and two Nuts M6 (L2). (Figure 3a)
Step 2:
Slide the Pulse Wire (E5) through the hole at the top of the Support Tube (F). (Figure 3b)
FIGURE 4
Step 1:
Connect the Upper Sensor Wire (F2) and Pulse Wire (E5) to the wires coming from the Console (G).
(Figure 4a)
Step 2:
Secure the Console (G) to the top of the Support Tube (F) by sliding it in a downward direction as shown in
Figure 4b.
Figure 3a Figure 3b
Figure 4b Figure 4a
