Controls, Displays and Connections
10
This section contains a brief description
of all controls, displays and connections.

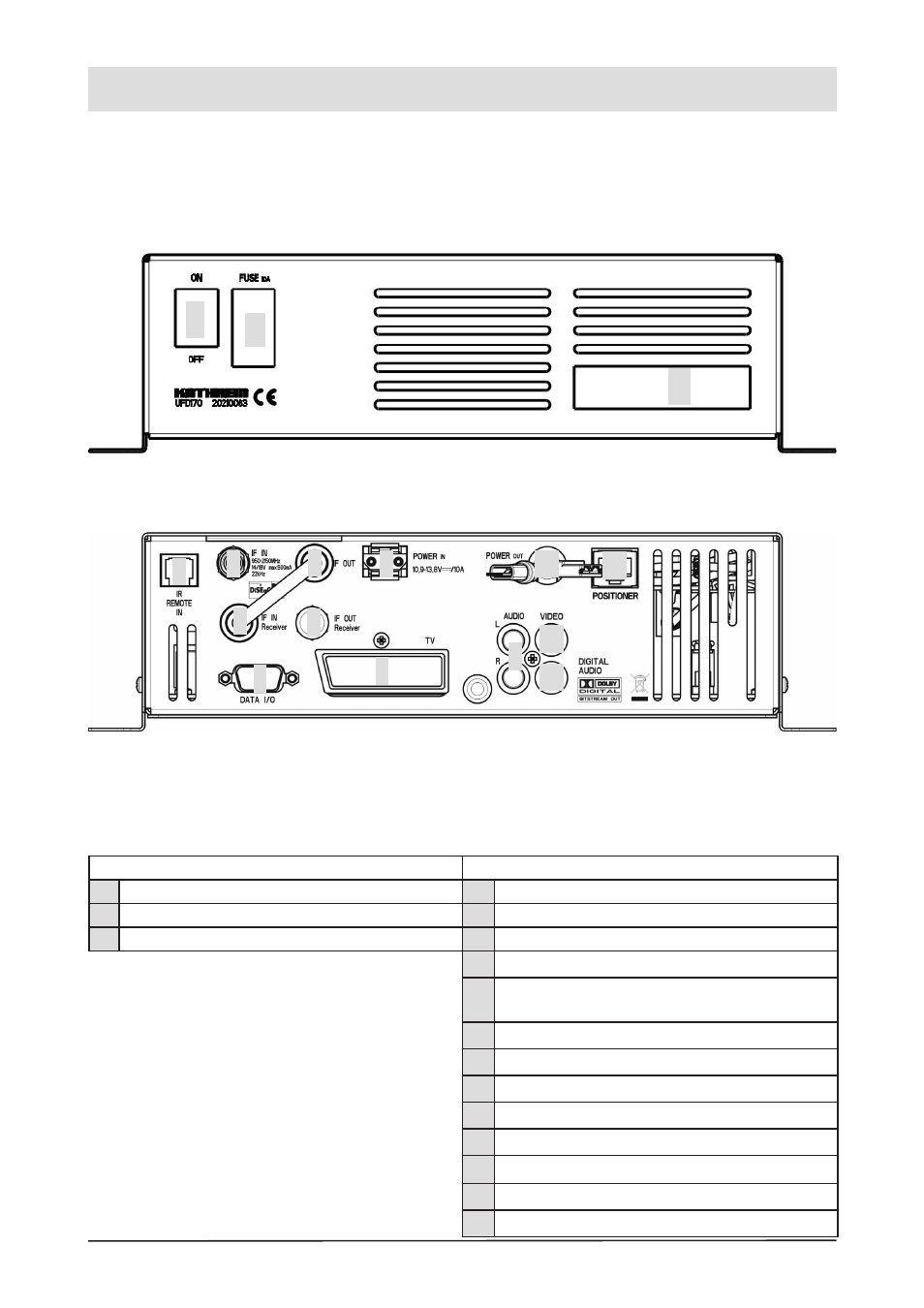

Front View
Rear View
Front View Rear View
1 Power switch (ON/OFF) 1 Connection for separate infrared receiver
2 Fuse 2 Turntable unit SAT-IF signal input
3 2 Common Interface slots for 2 CA modules 3 Receiver SAT-IF signal input(connected to “5”)
4 RS 232 data interface
5 Turntable unit SAT-IF signal loop
output (connected to “3”)
6 SAF-IF signal loop output for receiver
7 Scart socket for TV connection
8 Mains voltage supply
9 Audio outputs, 2 cinch sockets, L+R channel
10 Video output (composite colour)
11 Dolby Digital data stream output (AC 3)
12 Power supply for turntable
13 Output for data connection to turntable
1
2
3
1
2
3
4
5
6
7
8
9
10
11
13 12
