Viewing Network and Device Status

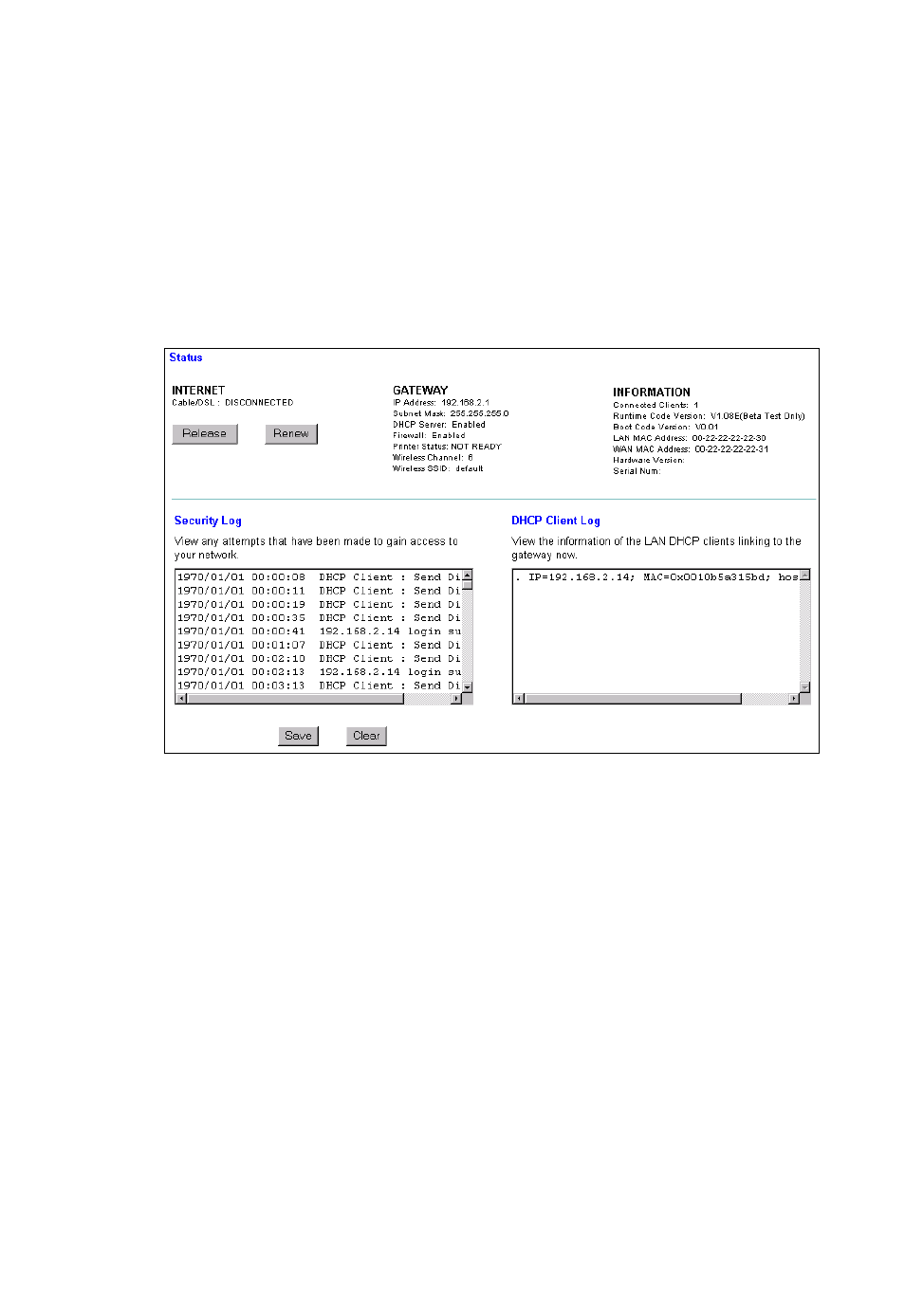

You can use the following screen to display the connection status for
the WAN/WLAN/LAN interfaces, firmware and hardware version
numbers, any illegal attempts to access your network, as well as
information on all DHCP clients connected to your network.
The following items are included in this screen:
Field Description
INTERNET Displays WAN connection type and status.
Release Click on this button to release the WAN IP address.
Renew Click on this button to renew the WAN IP address.
GATEWAY Displays system IP settings, the status for DHCP, and
Firewall services, as well as the wireless interface
settings.
INFORMATION Displays the number of attached clients, the firmware
versions, the physical MAC address for each media
interface, as well as the hardware version and serial
number.
