Inal rx1+ and rx1–. see figure 3-26, Instrument nmea socket (4). see figure 3-26 – Simrad Autopilot AP26 User Manual
Page 80
Simrad AP26 and AP27 Autopilots
78
20221586B
If IS15 Expander is used in the instrument system, the NMEA
connections are made to this unit. See Figure 3-27.

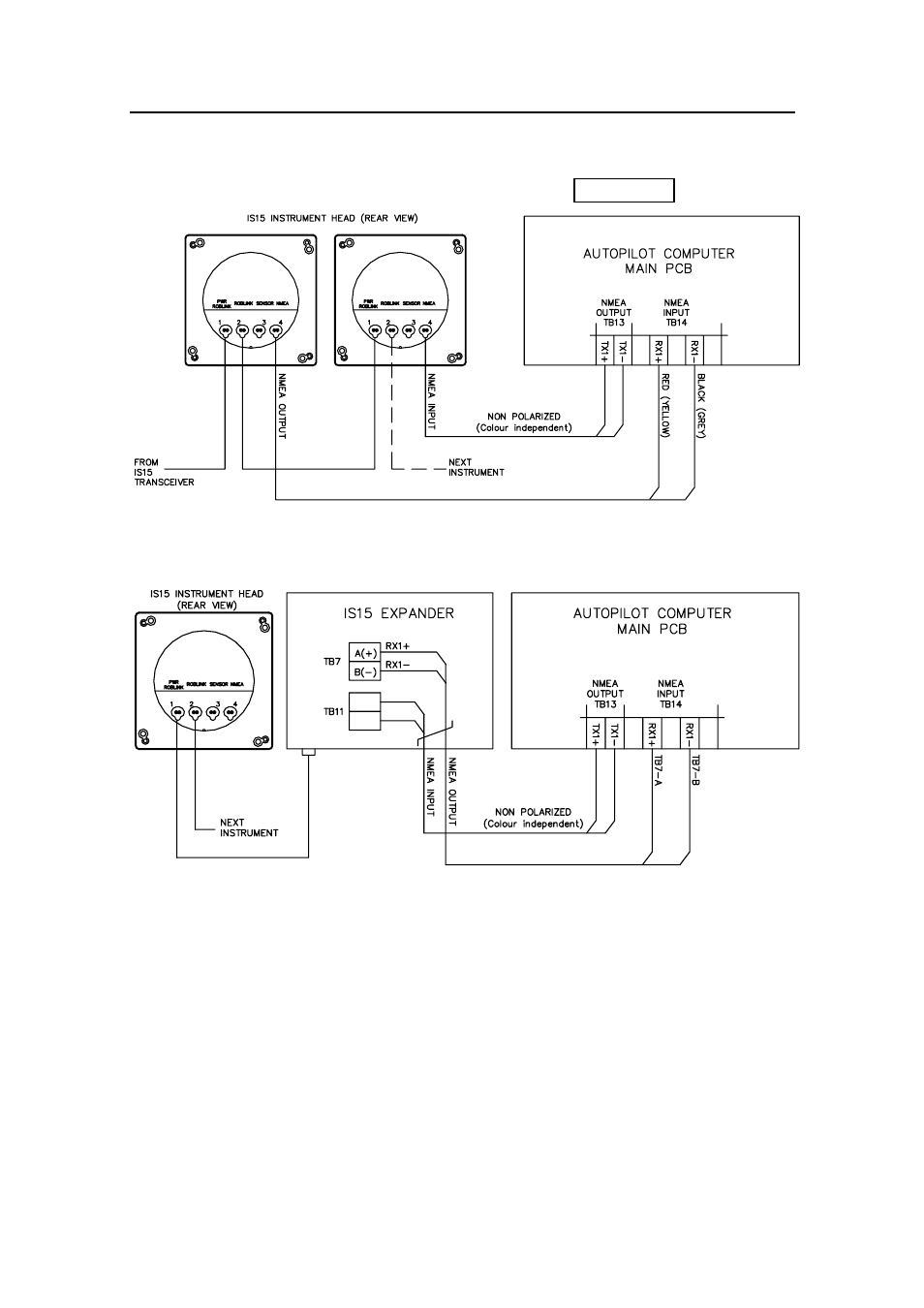

Figure 3-26 IS15 Instruments / Autopilot computer connection
Figure 3-27 IS15 Expander / Autopilot computer connection
