Simrad AP26 and AP27 Autopilots
68
20221586B
3.15 R3000X Remote Control installation
R3000X should be mounted in the supplied bracket that can be
fixed by four mounting screws. The unit is weather proof and
can be mounted outdoor.
TB6
AUTOPILOT COMPUTER
TB3 TB4 TB5
TB7
St
b
d
Po
rt Gn
d
Gn Red Blu
R E M O T E
T B 8
T B 1 T B 2
R3000X
REMOTE CONTROL
La
m
p
Yel
POWER PCB

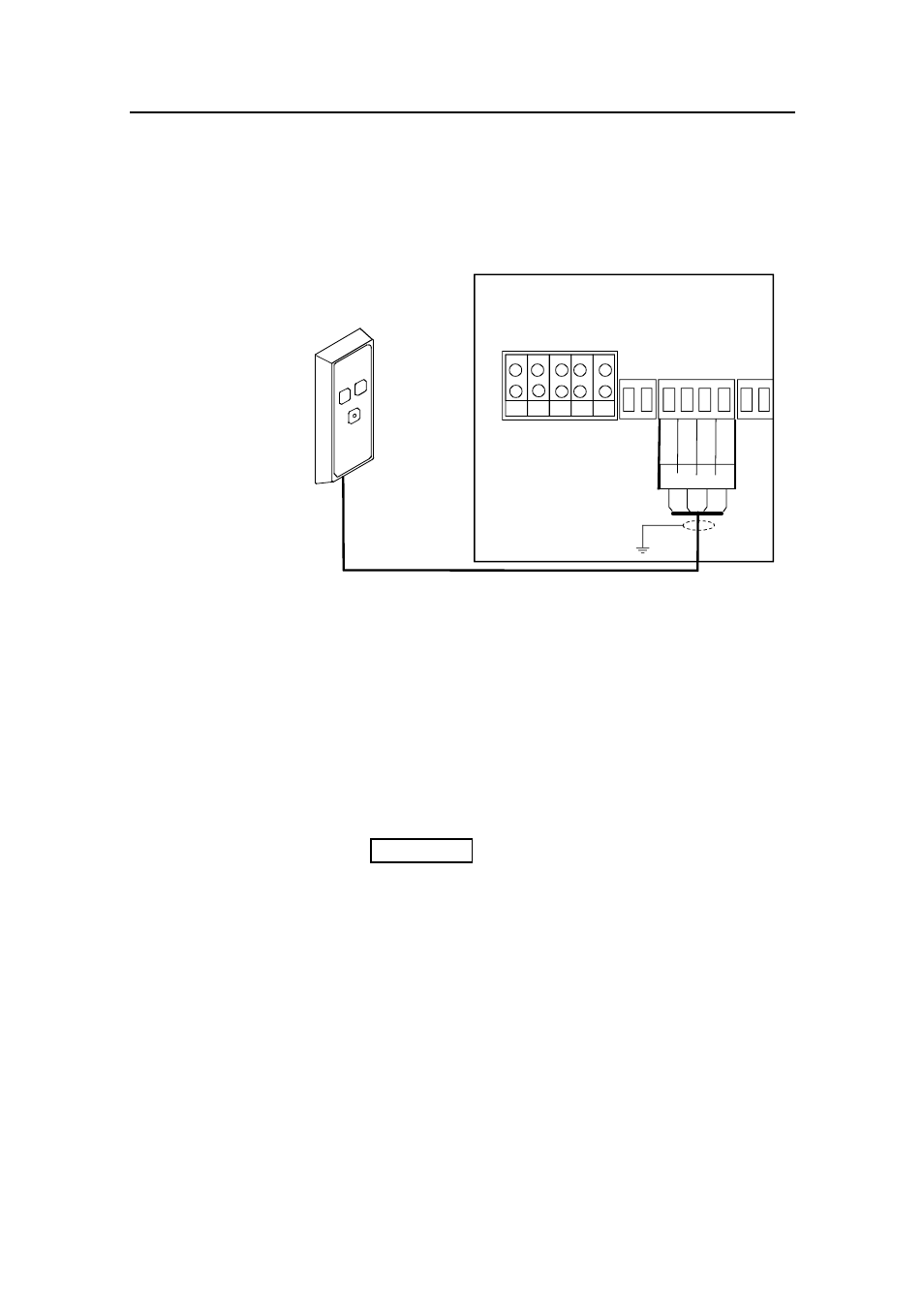

Figure 3-15 R3000X connection
3.16 JS10 Joystick
Refer to separate installation procedure for JS10 Joystick.
3.17 S35 NFU Lever installation
The unit is mounted to a bulkhead or panel by two screws from
the front. The cable is connected to the autopilot computer
according to Figure 3-16. Interchange the Port and Stbd wires to
the screw terminals if necessary to make the direction of the
lever movement coincide with the direction of the rudder
movement.
