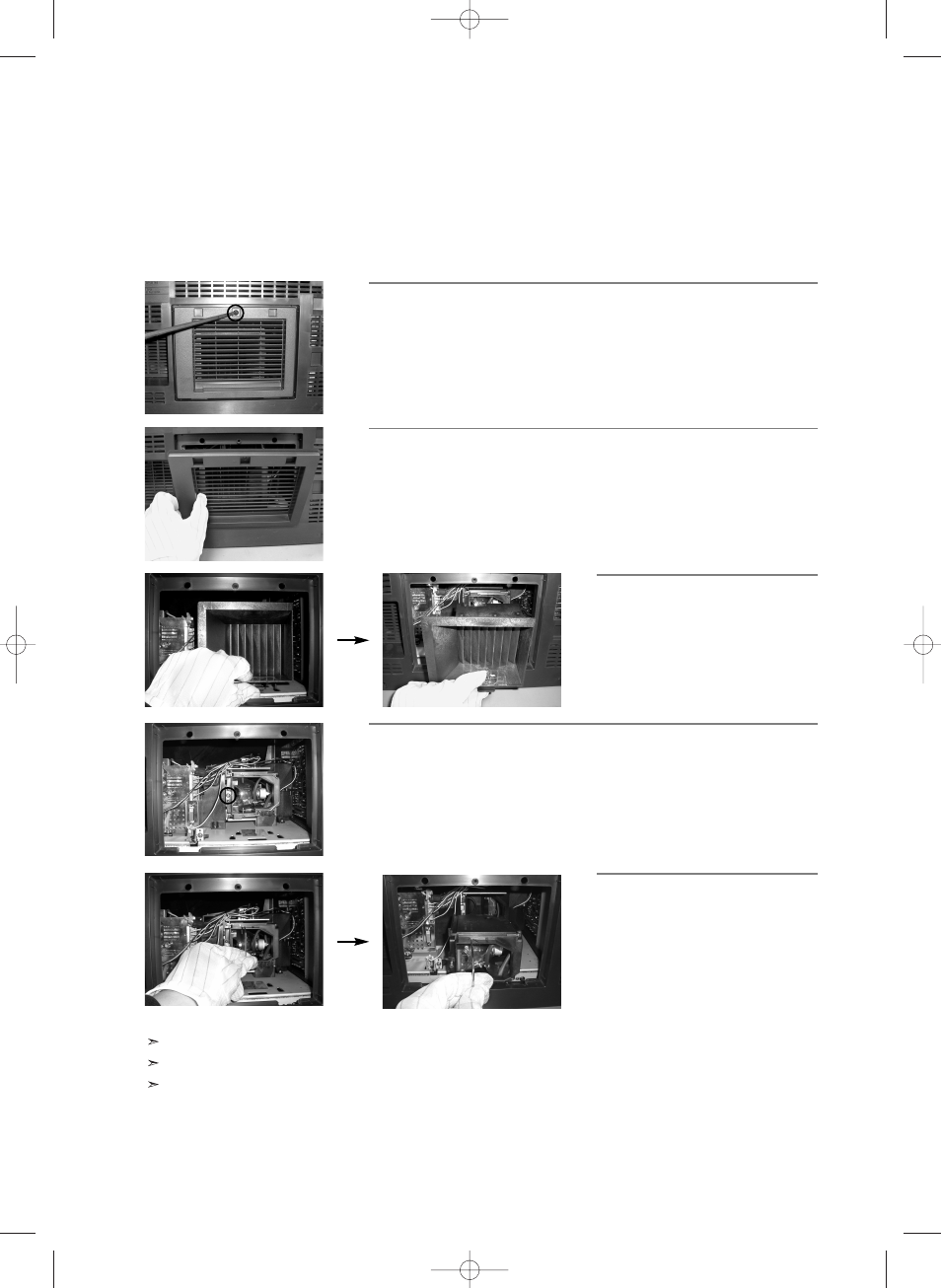

For replacement, you will need a 5.91-Inch screwdriver and a pair of gloves.
1
Unplug TV, then use a screwdriver to remove the screws.
2
Remove the Lamp cover.
4
Remove the screw securing the Lamp by using a screwdriver.
3
Remove the Lamp cover duct
holding the tab and pulling it out.
5
Separate the Lamp from the
engine by holding the handle
and pulling it out.
Be sure the replacement Lamp is the same type.
After replacing the lamp, align the lamp cover with the groove and secure the screws.
The TV will not turn on if the lamp cover is not correctly closed (as this will activate the protective circuit).
