ASSEMBLY
CY84 03/08
Assembly Section 3-4
© 2008 Alamo Group Inc.
ASSEMBL
Y
Axle

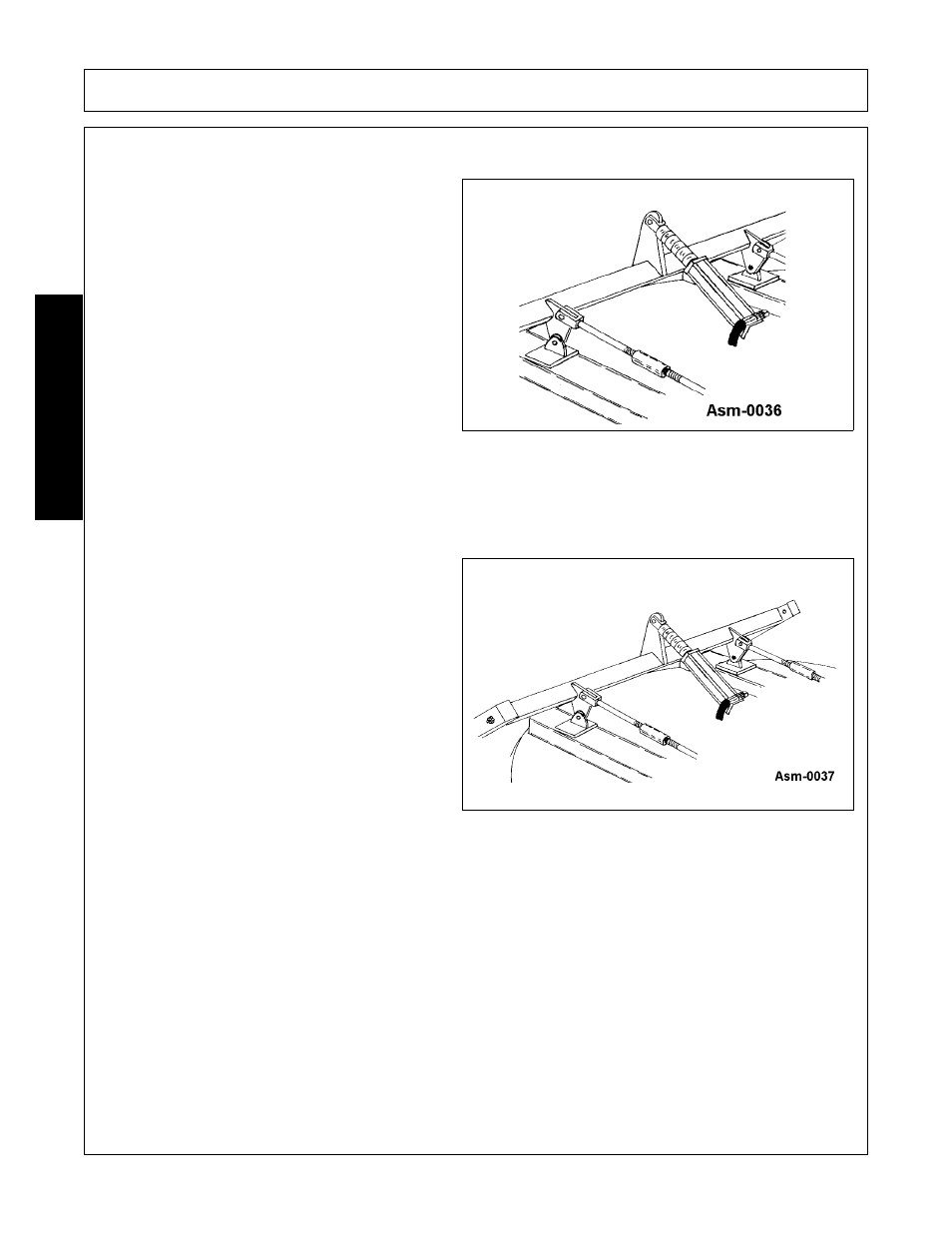

Attach Rear Axle to the lugs on the rear of the
mainframe using (5) 3/4 x 3-1/2 bolts and locknuts
(Figure Asm-0036).
Control Rods
Attach the two level-lift control rods to the lower lugs on tongue and to lugs on the rear axle tube using pins,
washers and cotter pins.
NOTE: The adjusting nuts on control rods should be
to rear of machine (Figure Asm-0037).
