Connections

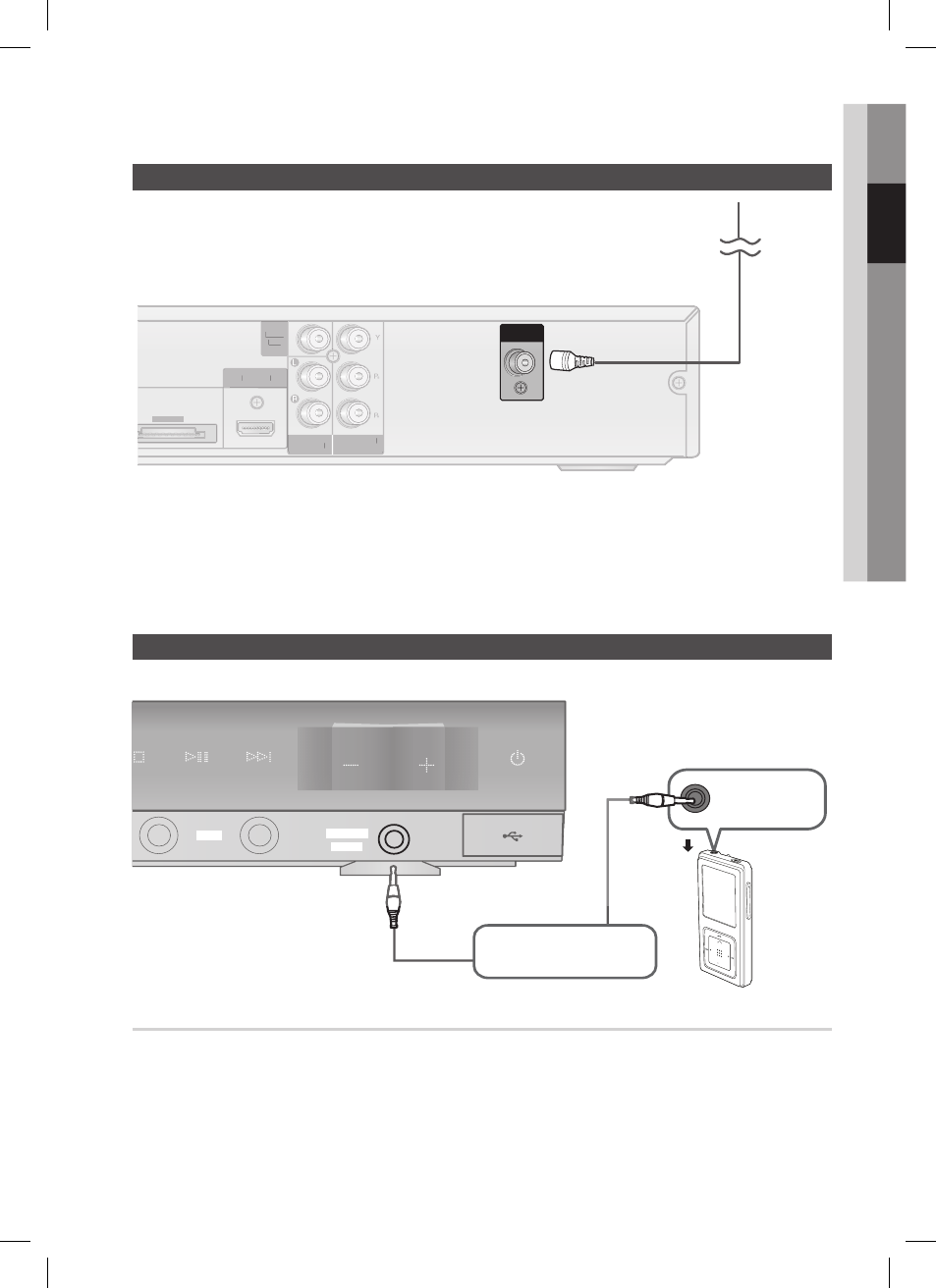

Connecting the fm Antenna
iPod
DIGITAL
AUDIO IN
OPTICAL
WIRELESS
HDMI OUT
AUX IN 2
COMPONENT
OUT
VIDEO
OUT
HDMI OUT
COMPONENT
OUT AUX IN 2
VIDEO
OUT
FM ANT.
Connect the FM antenna supplied to the FM Antenna jack.
Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it to a
wall or other rigid surface.
NOTE
This product does not receive AM broadcasts.
1.
2.
✎
`
FM Antenna (supplied)
Connecting Audio from external Components
AUX IN 1/
ASC IN
MIC 2 MIC 1
Audio Cable
(not supplied)
Audio Out
AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player.
Connect AUX IN1 / ASC IN (Audio) on the front of the product to the Audio Out of the external
component/ MP3 player.
Press the FUNCTION button to select AUX1 input.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ FM.
1.
2.
~
