Connections
English
Connecting the video out to your tv
Choose one of the three methods for connecting to a TV.
FM ANT.
iPod
DIGITAL
AUDIO IN
OPTICAL
WIRELESS
HDMI OUT
AUX IN 2
COMPONENT
OUT
VIDEO
OUT
FM ANT.
AUX IN 2

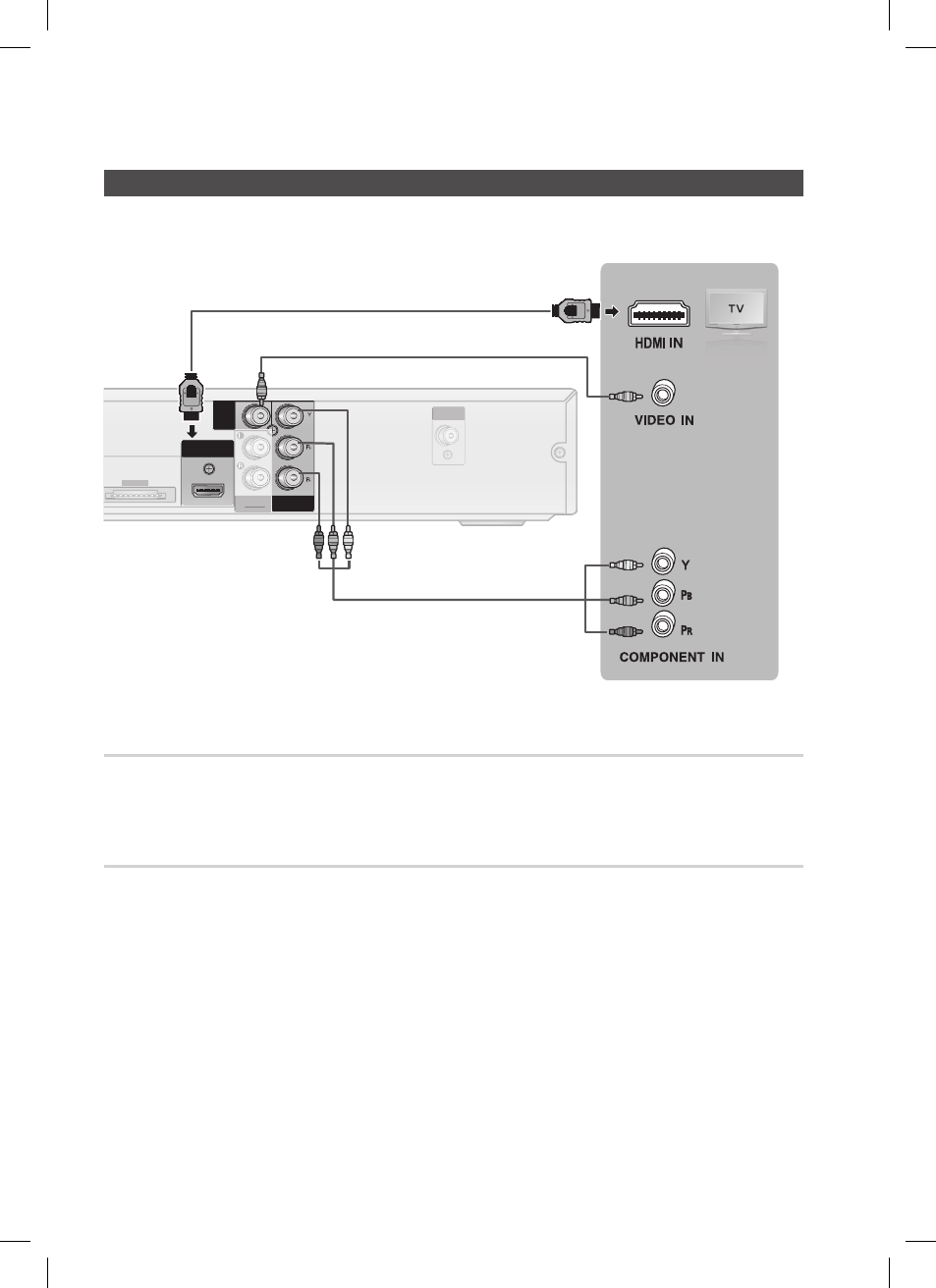

METHOD 1 : HDMI
Connect an HDMI cable (Option) from the HDMI OUT jack on the back of the product to the HDMI IN jack on
your TV.
METHOD 2 : Component Video
If your television is equipped with Component Video inputs, connect a Component video cable(not supplied)
from the COMPONENT OUT (Pr, Pb and Y) jacks on the back of the product to the Component Video Input
jacks on your TV.
METHOD 1 (Option)
METHOD 3 (Option)
METHOD 2
