INSTALLATION
TECHNICAL INSTRUCTIONS FOR THE
INSTALLER
Installation, transformations and maintenances
below listed, may only be carried out by a
competent technician.
A wrong installation may provoke damages to
persons, animals or things, for which the builder
can not be responsible.
3) INSERTING
After having cleared out all the packing components,
make sure of the integrity of the appliance.
Please keep children away from all packing
elements ( carton, polystyrene, nails,..).
Make a cutout in the worktop, according to the
dimensions indicated in fig. 5 and 6; make sure that
will be respected the critical dimensions of the space
in which the appliance has to be installed (fig. 5 - 6
and 7).

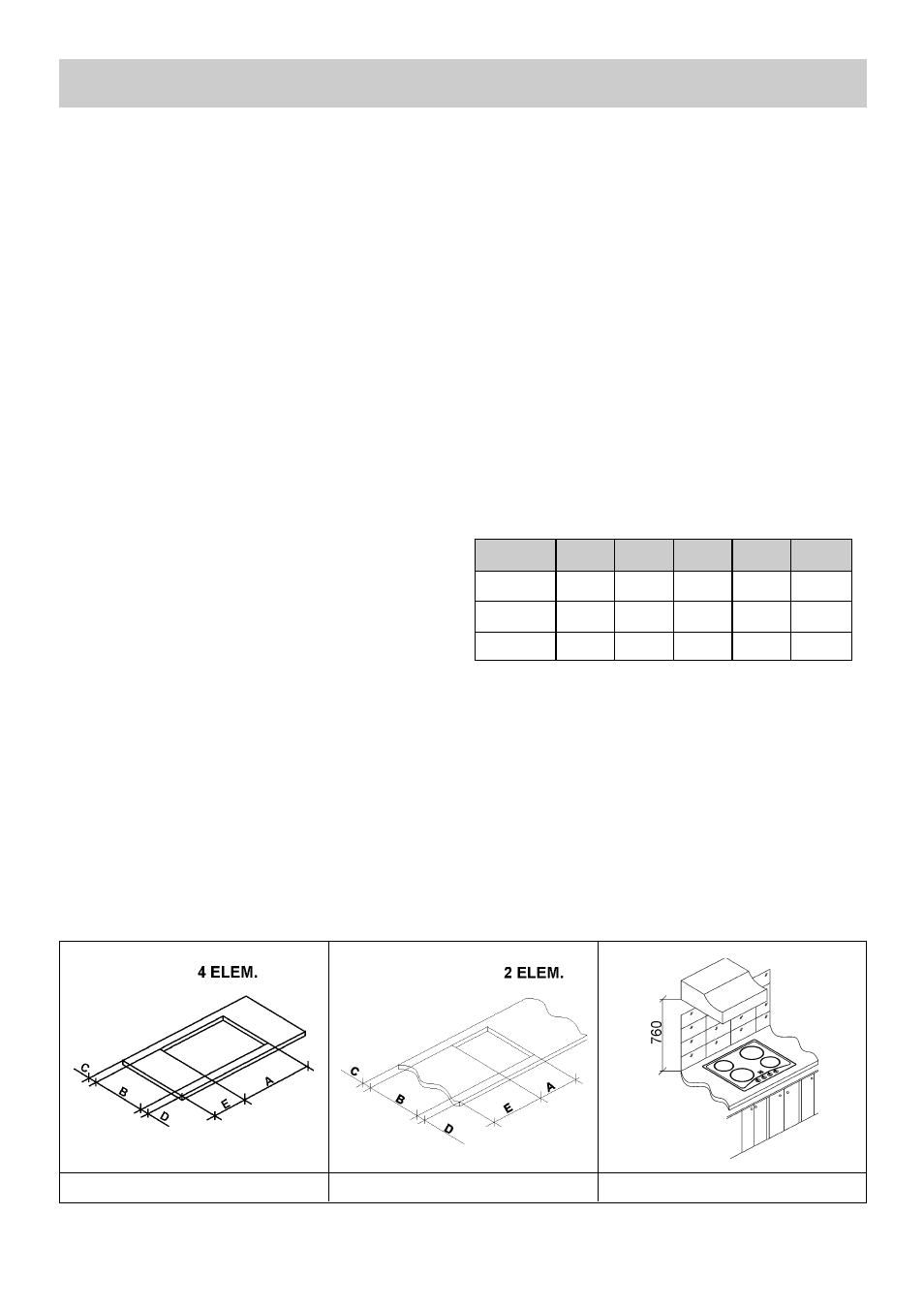

FIG. 5 FIG. 6 FIG. 7
A B C D E
EL. HOB 30
285 485 60 60 60 min.
EL. HOB 60 555 475 65 65 100 min.
EL. HOB 70 653 475 62.5 62.5 123 min.
COMPLY WITH THE DIMENSIONS
(mm)
