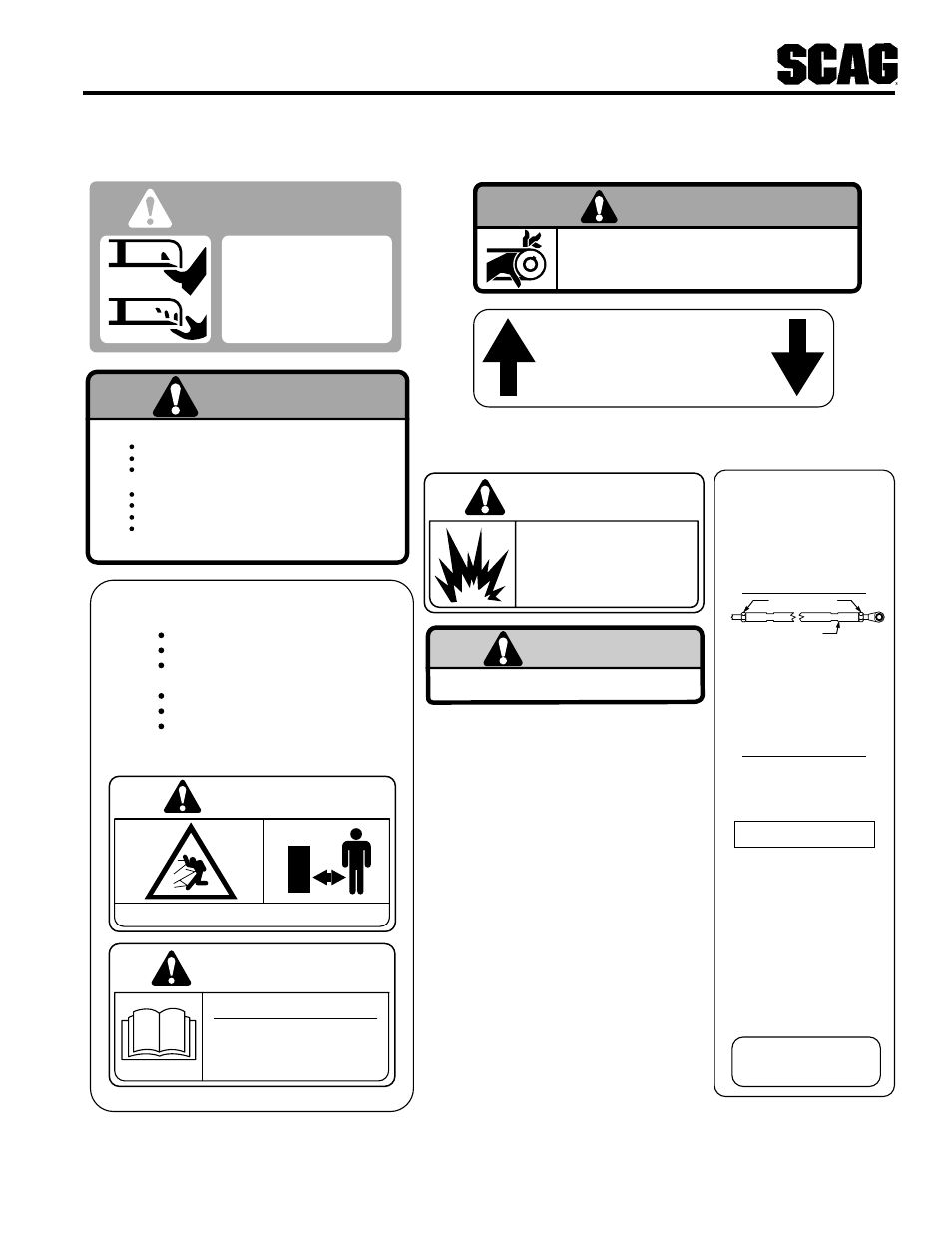

2.6 SAFETY AND INSTRUCTIONAL DECALS
DANGER
SPINNING BLADE
KEEP CLEAR
CONTACT CAN INJURE
48071
ROTATING BLADES AND BELTS
WARNING
KEEP HANDS, FEET & CLOTHING CLEAR
KEEP ALL GUARDS IN PLACE
SHUT OFF ENGINE & DISENGAGE BLADE
CLUTCH BEFORE SERVICING
CLEAR AREA OF DEBRIS BEFORE MOWING
USE CAUTION IN DIRECTING DISCHARGE
KEEP BYSTANDERS, CHILDREN & PETS AWAY
READ INSTRUCTION MANUAL BEFORE OPERATING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED 481040
WARNING
INSTALL BELT COVER BEFORE
OPERATING MACHINE
READ OPERATOR'S MANUAL
481039
CAUTION
AVOID INJURY FROM
BURNS. SHUT OFF
ENGINE BEFORE
REMOVING FUEL
TANK CAP.
481272
390S0150
CAUTION
KEEP BYSTANDERS AWAY
CAUTION
BEFORE OPERATING
READ OPERATOR'S
MANUAL AND SAFETY
INSTRUCTIONS
481567
START / DRIVE
PROCEDURE
ENGAGE PARKING BRAKE
DISENGAGE MOWER DECK DRIVE
MOVE CONTROL HANDLES
TO NEUTRAL LOCK POSITION
START ENGINE
RELEASE PARKING BRAKE
SELECT FORWARD OR
REVERSE SPEED WITH
HYDRO CONTROL HANDLES
481568
FORWARD
REVERSE
F
R
IMPORTANT ADJUSTMENT
PROCEDURES
READ OPERATOR'S MANUAL
FOR MORE DETAILS
NEUTRAL ADJUSTMENT
TRACKING ADJUSTMENT
FREE WHEEL OPERATION
HYDRAULIC TANK FLUID LEVEL
Check tire pressure-
(Drive tires - 12 psi,
Caster tires - 25 psi)
To move machine without running
the engine, rotate both dump valve
levers located at the LH side of
the pumps CCW 1/2 turn to
"freewheel" positions. Return
levers to original position to
operate the mower.
If the machine pulls to the right,
adjust LH control linkage CCW to
slow left wheel. If the machine
pulls to the left, adjust RH control
linkage CCW to slow right wheel.
Readjust neutral if necessary.
With an operator in the seat,
engine running, control levers
in neutral and the parking brake
disengaged - adjust control
linkage. Loosen jam nuts. If wheel
rotates forward, adjust turnbuckle
CCW. If wheel rotates rearward,
adjust turnbuckle CW. Adjust until
drive wheel stops turning. Tighten
jam nuts. Repeat for opposite side.
Check hydraulic fluid level
daily while fluid is cool.
Fluid level should be 3-1/4"
below top of filler neck.
Fill with SAE 20W50 motor oil only.
IMPORTANT!:
Do not overfill. Room for hot
fluid expansion must be allowed
or resulting expansion may cause
leaks in the system.
Gearbox lubricant:
SAE 80W90 gear oil
481588
Loosen jam nuts
Rotate turnbuckle
WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
482165
482165
