B. The steering control levers are in the full forward
position and the mower pulls to one side or the
other when traveling in a forward direction.
(Tracking Adjustment, See Page 20).
Neutral Adjustment
1. Be sure the dump valve levers are in the run position
and the steering control levers are in the neutral lock
position.
2. With an operator in the seat, start the engine and
disengage the parking brake.
3. Run the engine at full operating speed and check if the
machine creeps forward or backwards.

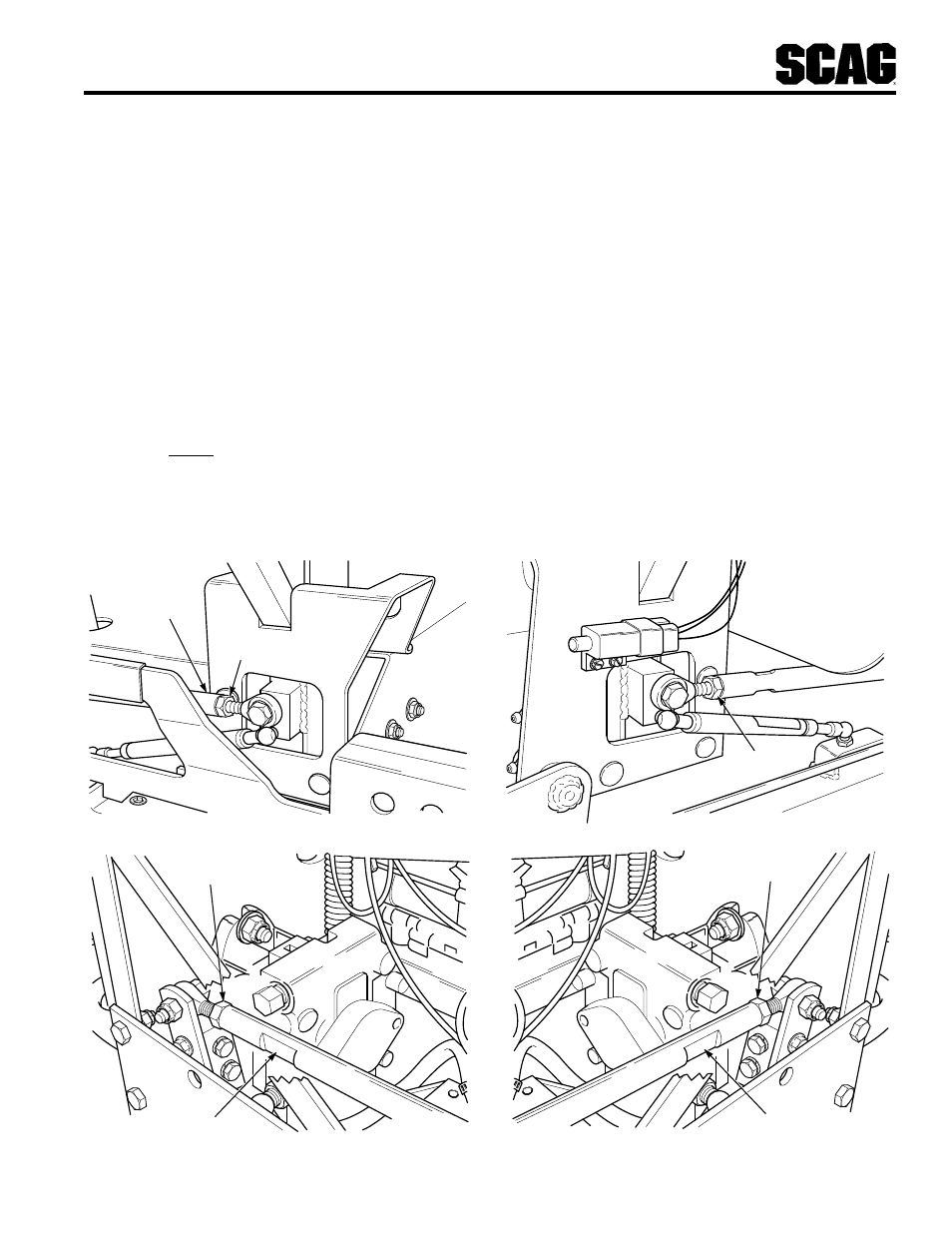

Figure 6-3. RH Steering Control Rod Adjustment
4. Adjust the RH wheel by loosening the jam nuts on the
steering control rod and turning the rod until the drive
wheel turns in the forward direction. Turn the rod
back until the drive wheel stops moving. Turn the
rod an additional 1/2 turn. (See Figure 6-3).
5. Tighten the jam nuts and repeat for the LH wheel.
(See Figure 6-4).
6. Actuate the steering control levers forward and
reverse serveral times and return them to the neutral
position.
7. Check that the drive wheels remained in neutral and
readjust if necessary.
8. Check that the steering control levers hit the stop
before the pumps reach full stroke. Adjust as needed.
Figure 6-4. LH Steering Control Rod Adjustment
