37X Speed Dome Camera 15/50

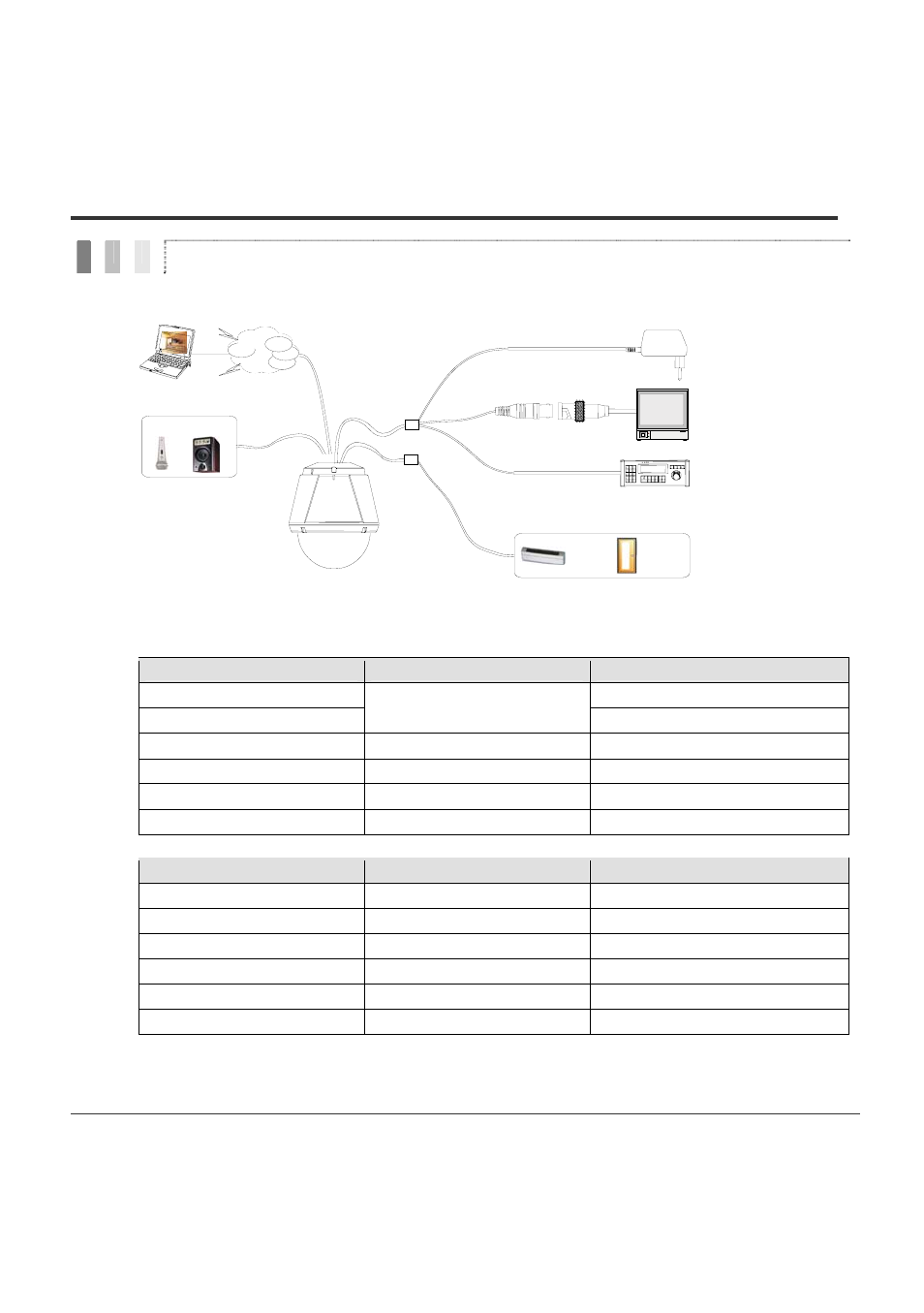

Wiring and Cabling
‰ Port Description
z Main Cable
Port Pin Number (RJ45) Connector / Wire Color Signal
1 Video +
2,4
BNC Connector
Video −
5 Red RS-485 +
3 Yellow RS-485 −
7 Orange Power +
6,8 White Power −
z I/O Cable
Port Pin Number (RJ25) Wire Color Signal
1 Blue IN COM +
2 Yellow IN 1 −
3 Green IN 2 −
4 Red IN 3 −
5 Black OUT A
6 White OUT B
RS-485
BNC
SENSOR I/O
INTERNET
INSTALLATION 2
LAN CABLE
AUDIO
CABLE
MAIN CABLE
I/O CABLE
BROWSER
POWER
MONITOR
CONTROLLER / DVR
MIC SPEAKER
IR
SENSOR
DOOR
SWITCH
