Speco Technologies HTINT650S - Manual

◐NOTES
1. You can install the camera indoors or outdoors.
2. Be careful not to scratch the lens or dome cover.
3. Use 1Amp power supply at 12V DC or 24V AC.
◐FEATURES
1. IP67 (Waterproof)
2. Construction
Body : Aluminum, Dome : Polycarbonate
3. (Optional) Wall, Ceiling and pole mounts available
4. 25M range visible in total darkness with 24pcs of
IR LEDs (depends upon scene reflection)
5. Side control board for easy function adjustment
6. Dual power (12V DC or 24V AC) operation

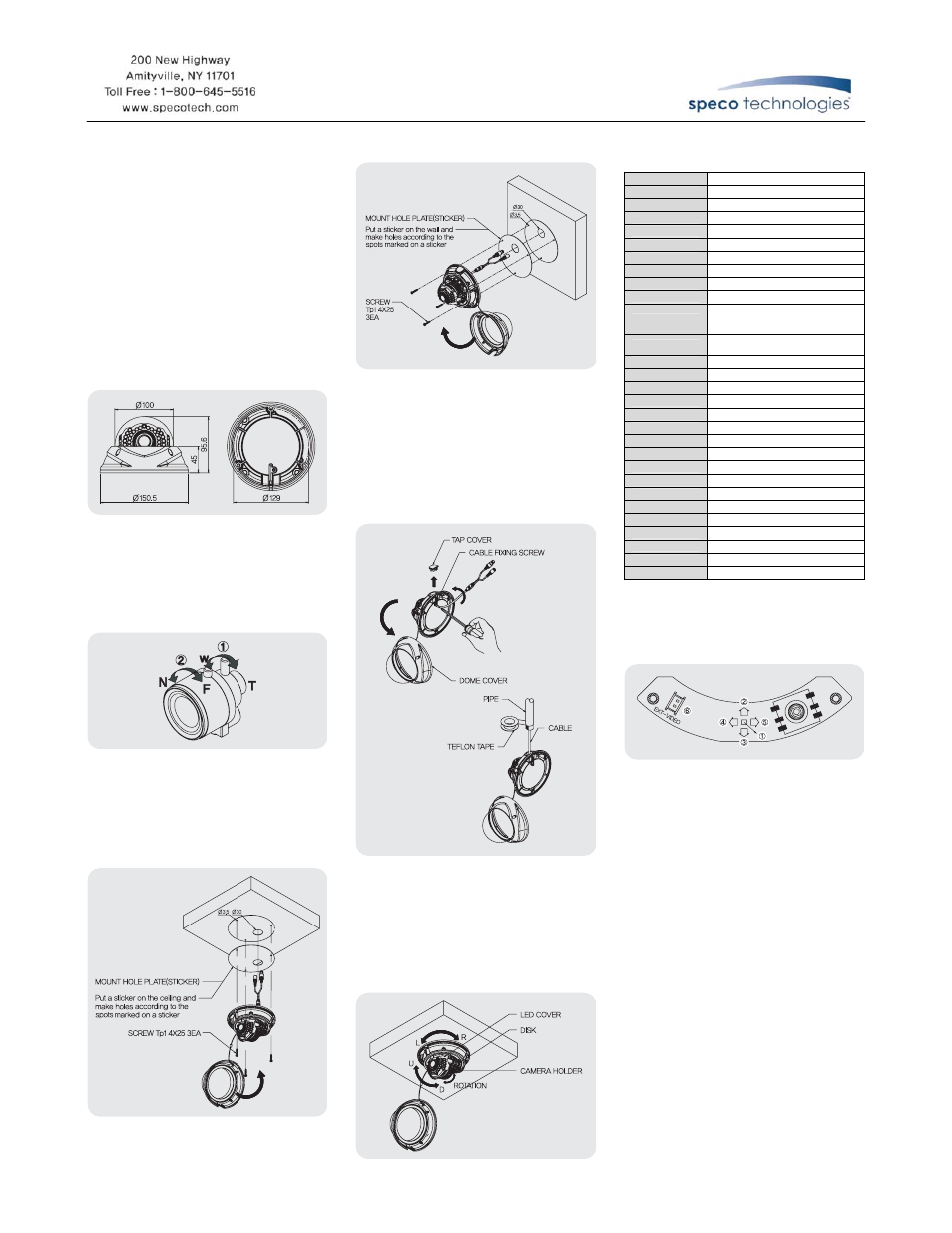

◐DIMENSION
◐HOW TO INSTALL
1. Camera installation
(1) Fix the camera with the supplied screws on
ceiling or wall mount.
(2) Please refer to '3. Camera angle adjustment' regarding
adjust camera angle.
(3) Lens adjustment
After opening the LED cover,
①By turning the "Tele-Wide" knob, you can access a
range of focal lengths within specified limits.
②By turning the "Near-Far" knob, you can set the
focus toward an object.
(4) Reassemble the camera.
2. Pipe application
(1) Remove the screw for fixing a cable on the bottom
of the base.
(2) Open the DOME COVER.
(3) Remove the TAP COVER and place the cables there.
(4) After distributing cables, use the TEPLON tape to
wipe the pipe.
(5) Attach the pipe to the base.
If you don't wipe TEFLON tape on pipe, it
might cause water intrusion issues.
3. Camera angle adjustment
(1) Pan adjustment : Grasp the disk of camera and
adjust direction to the right or left(-160˚~ 190˚)
(2) Tilt adjustment : Grasp the LED cover of camera and
adjust direction to up or down(6˚~ 90˚)
(3) Roll adjustment : Grasp the camera holder and
then rotate(-178˚~ 178˚)
If you try to adjust the camera out of limited
angle, it might cause damage to camera.
HTINT650S, HTINT650W
◐SPECIFICATION
Model No. HTINT650S, HTINT650W
Image Sensor 1/3" SONY SUPER HAD CCDⅡ
Effective Pixel 768(H) X 494(V) PIXEL
Cell Size 6.35㎛(H) X 7.4㎛(V)
Scanning System 2 : 1 Interlace
Sync. Type Internal / Line lock(24V AC)
OSD Multi-language
WDR Set
SSDR / BLC / HLC / OFF
Resolution Color : 600 TV-Line, B/W : 700 TV-Line
S/N Ratio 52dB(AGC OFF, Weight ON)
Min. Illumination
LED ON : 0 Lux(25M Range)
LED OFF : 0.0005 Lux(Color Sense-up),
0.0002 Lux(B/W Sense-up)
Color Temp.
ATW(1,700°K ~ 11,000°K) /
AWC / MANUAL / OUTDOOR / INDOOR
Shutter 1/60 ~ 1/120,000sec
Intensifier AUTO / FIXED / OFF(x2 ~ x512 selectable)
Gain Control LOW / HIGH / OFF
Speco DNR OFF / ON(1 ~ 32 Level adjustable)
V Motion ON / OFF(8 Zone, Alarm output)
Privacy ON / OFF(12 Zone)
Mirror H / V / BOTH / OFF
Clarity ON / OFF(Level adjustable)
D&N ICR(COLOR / Black&White / AUTO)
Stabilize ON / OFF
Digital Zoom ON(x16) / OFF
DPC 256 point(Even 128 point, ODD 128 point)
Power Supply Regulated 12V DC or 24V AC
Current Consumption 150mA(LED OFF), 500mA(LED ON)
Operation Temp.
-20 to 122
Dimension Ø150 x 98.6(H)mm
Weight 1.76Ibs
※The specification is subject to change without any
prior notice to improve the quality.
◐FUNCTIONS
1. Setup for camera functions
①ENTER :
- Push the lever : Used to access the menu and
confirm selection.
- Push the lever for one second : Open the menu or
close the menu.
②Up, ③Down :
Used to move the cursor to up or down.
④Left, ⑤Right :
Used to move the cursor to left or right and change
the value.
⑥EXT-VIDEO :
Extra video output terminal for installation.
Plug your test monitor in here. The cable is option.
