Connecting Your Monitor
Using the Stand
Wall Mounting the Monitor | Attaching a base

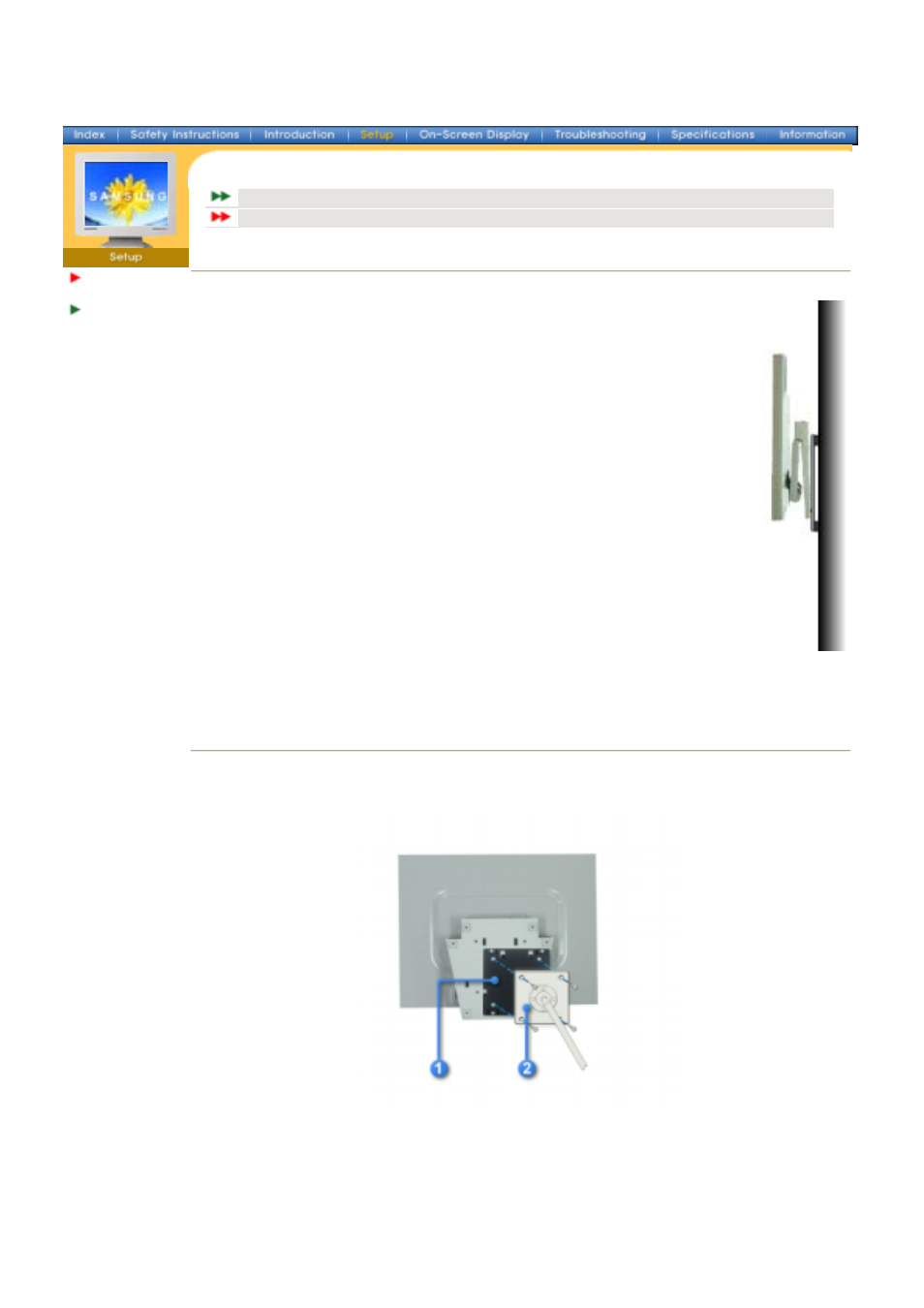

Wall Mounting the Monitor
As shown in the figure above, you first fold the stand. You attach the VESA mounting brackets on
the wall. You hang the monitor aligning its bottom grove with the bracket.
Attaching a base
NOTE: This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.
Squeeze the folded monitor stand into the VESA mounting bracket. Then fasten it using the
four supplied nuts with the monitor, mounting pad and VESA mounting bracket aligned.
1. VESA Mounting Brkt
2. Mounting interface pad
SyncMaster 152x/172x
