Unpacking

Front

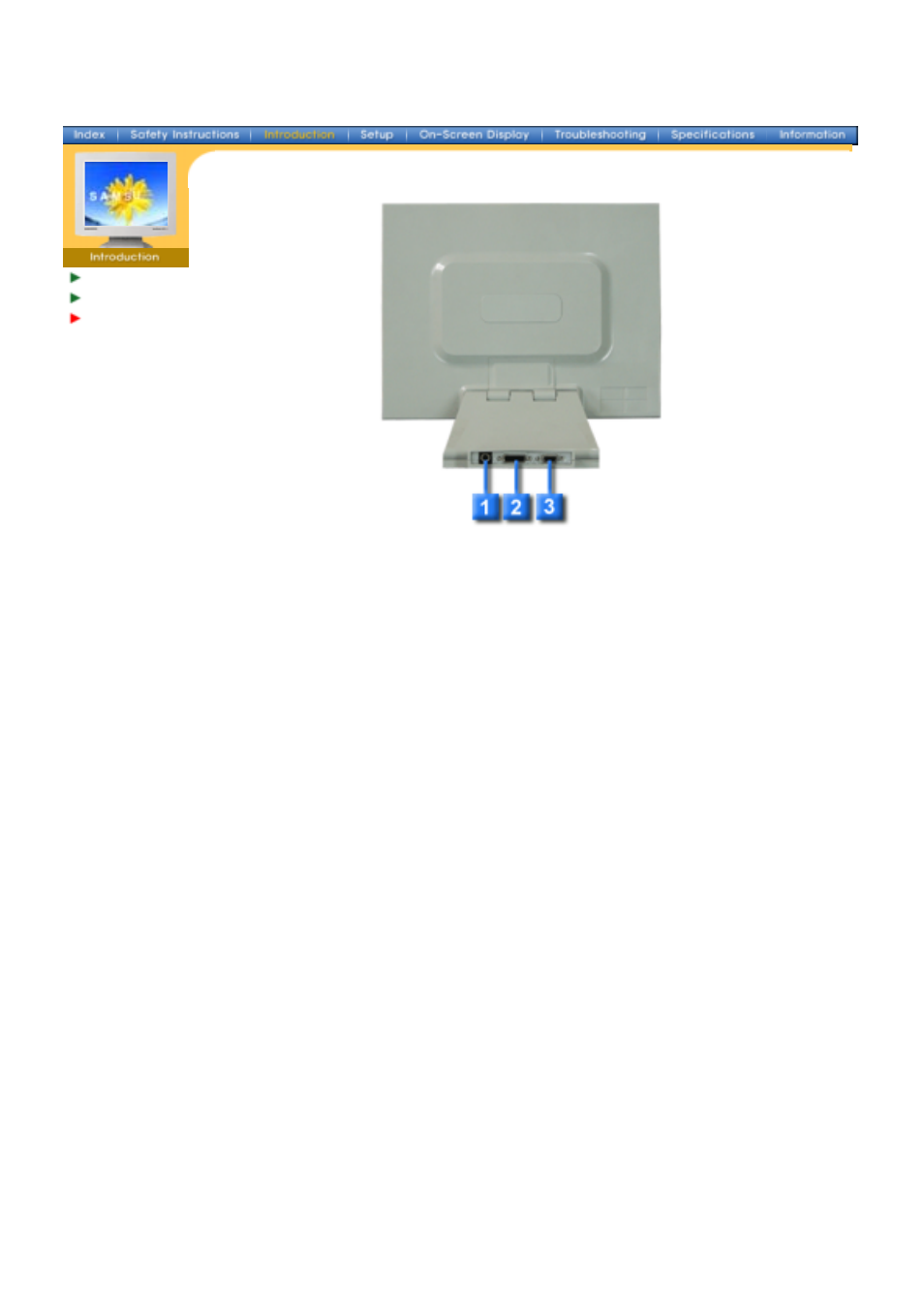

Rear

(The configuration at the back of the monitor may vary from product to product.)

1. Power port

Connect the DC Adapter for your monitor to the power port on the back
of the monitor.

2. DVI port

Connect the DVI Cable to the DVI Port on the back of your Monitor.

3. Signal port

Connect the signal cable to the 15-pin, D-sub connector on the back of
your monitor.

Note:

See

Connecting Your Monitor

for further information regarding cable connections.
