_ setup
setup

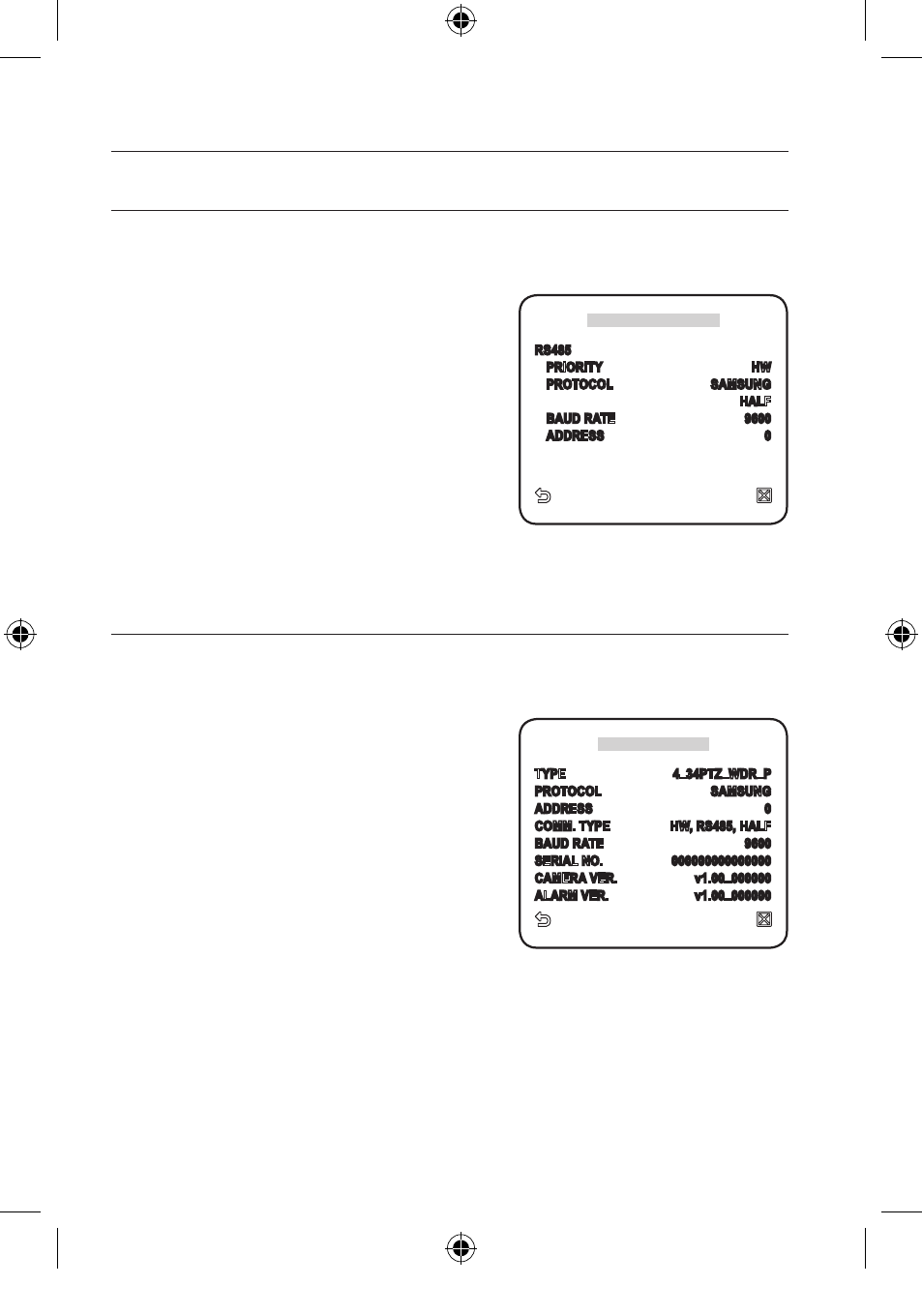

COmmUNICATION
You can set the RS-485 communications setting in regard of the camera.
For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20)
Select
Select each item and set appropriately.
PRIORITY : Set the priority by selecting
When selected
baud rate and address settings will
follow those settings of the adaptor
switch.
PROTOCOL, BAUD RATE, ADDRESS :
When selected
set the protocol, baud rate and address.
SySTEm INFO
You can check the system information.
For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20)
Select
The current system information is displayed.
1.
2.
1.
2.
COMMUNICATION
RS485
PRIORITY
HW
PROTOCOL
SAMSUNG
HALF
BAUD RATE
9600
ADDRESS
0
SYSTEM INFO
TYPE
4_34PTZ_WDR_P
PROTOCOL
SAMSUNG
ADDRESS
0
COMM. TYPE
HW, RS485, HALF
BAUD RATE
9600
SERIAL NO.
000000000000000
CAMERA VER.
v1.00_000000
ALARM VER.
v1.00_000000
