15-57
Chapter 15: Appendix
15

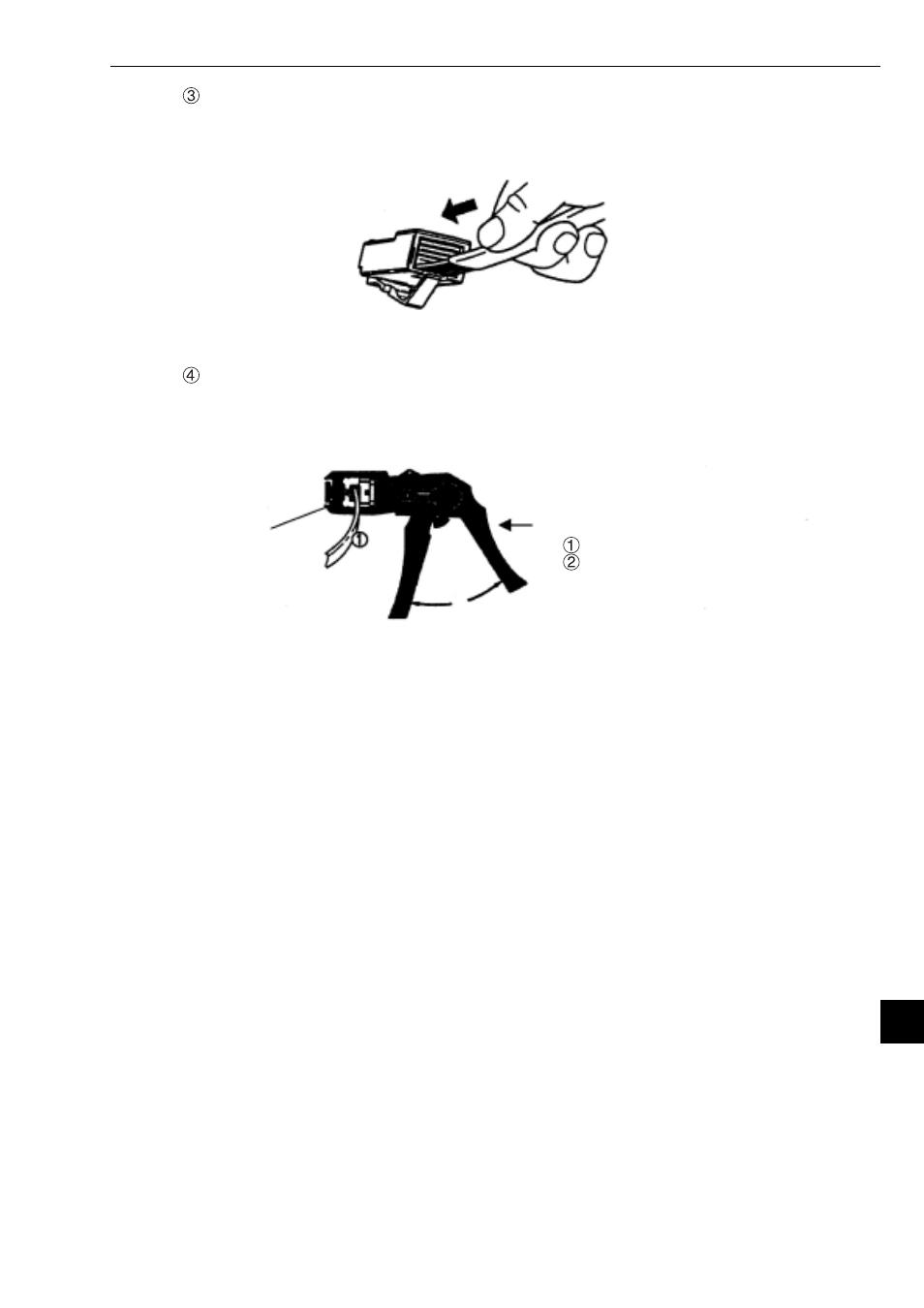

Insert the UTP cable signal lines into the connector
Install the signal lines in the correct order, and check to make sure the wires reach all the way into
the connector. Look at the connector from the front, top and bottom.
Assembling a UTP cable connector
After making sure the signal lines are fully inserted, crimp the connector using a special tool. After
crimping, check the connector using a dedicated tester.
Special tool for crimping UTP connectors
UTP connector
Insert the connector
Crimp with the tool
