B-4. Dip Switch Setting
Each of the switches in the DIP switch array is factory preset to ON. Be sure to
turn the power to both the printer and host computer off before changing the
setting of the DIP switches.
The dip switch array will appear when the ROM cover is removed.
The ROM cover should be returned to its original position after DIP switch
setting.

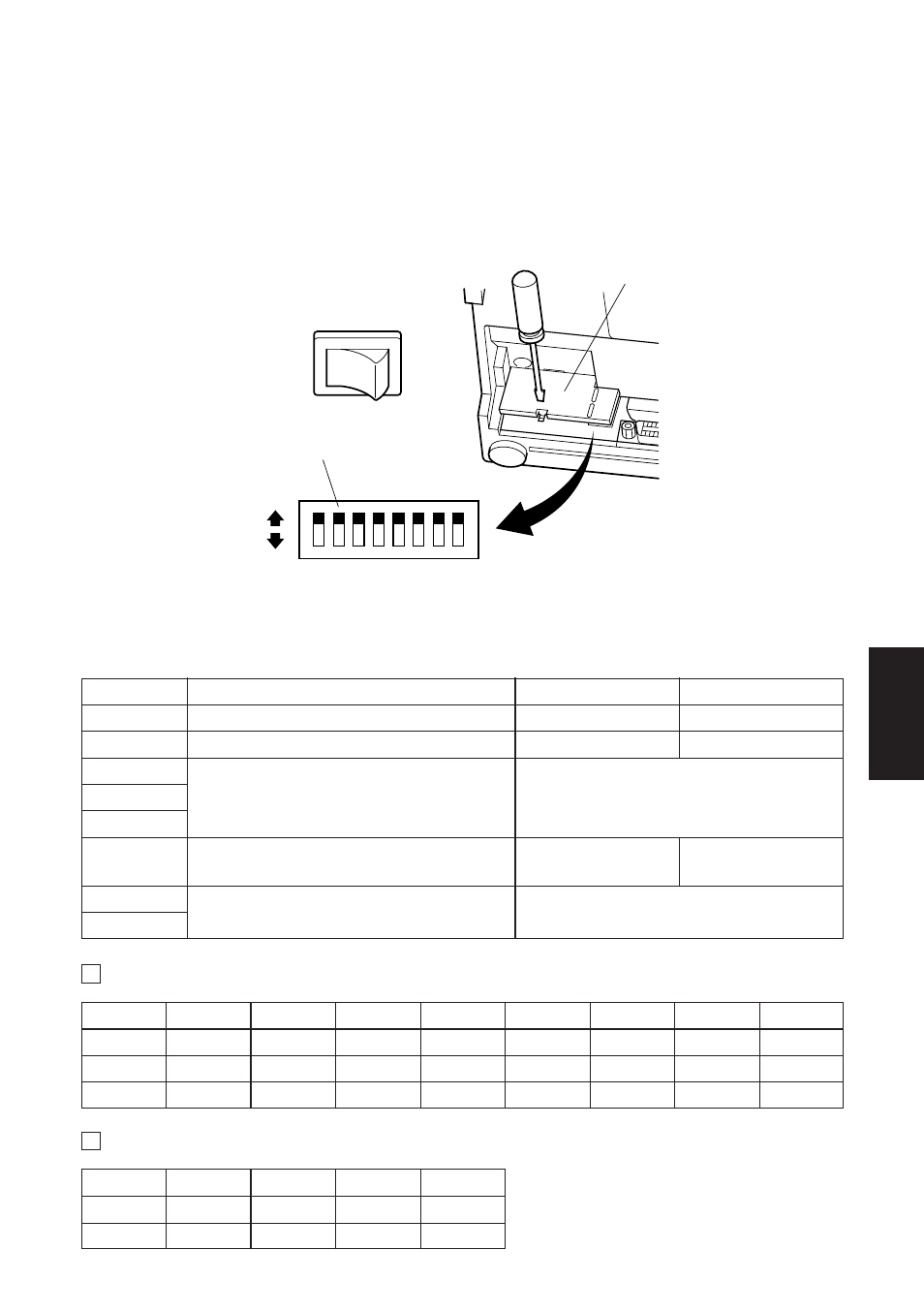

Fig. B-4 DIP switch array
■ DIP-SW
Factory presetting: all on
SW
Function
ON
OFF
1
Paper out detection
Valid
Invalid
2
Control code CR
Invalid
Valid
3
4
International character set
See below
5
6
Data buffer
Available
Unavailable
(approx. 1k byte)
(1 line)
7
Character generation setting
See below
8
International character set
Switch
U.S.A.
France
Germany
England
Denmark
Sweden
Italy
Spain
3
ON
OFF
ON
OFF
ON
OFF
ON
OFF
4
ON
ON
OFF
OFF
ON
ON
OFF
OFF
5
ON
ON
ON
ON
OFF
OFF
OFF
OFF
Character generation
SW
US
EC
JP
JP
7
ON
ON
OFF
OFF
8
ON
OFF
ON
OFF
8
1
ON
OFF
DIP switch
Power off
ROM cover
