APPENDIX
A-3. Dip Switch Setting
Each of the switches in the DIP switch array is factory preset to ON. Be sure to
turn the power to both the printer and host computer off before changing the
setting of the DIP switches.
The dip switch array will appear when the ROM cover is removed.

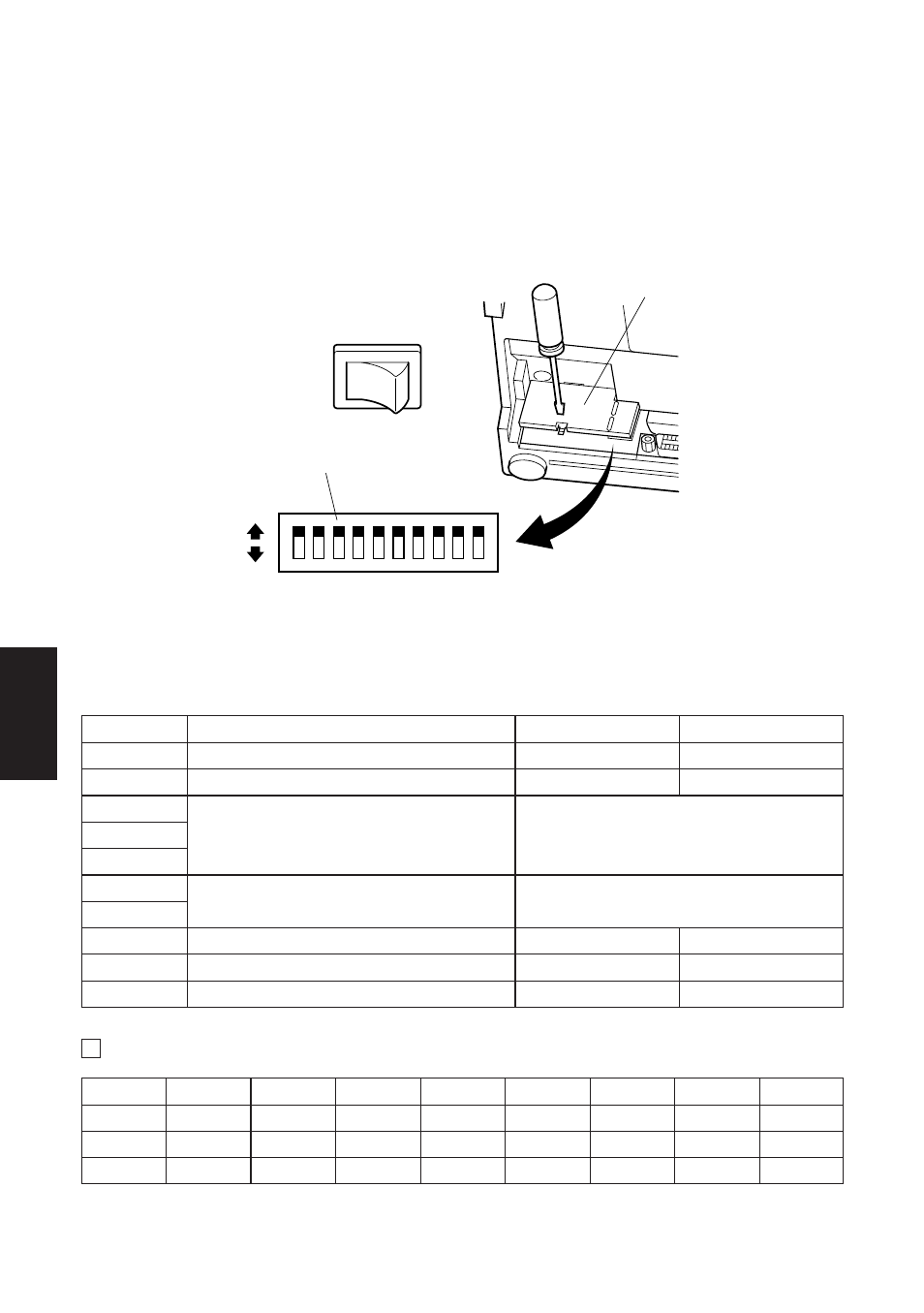

Fig. A-3 DIP switch array
■ DIP-SW Factory presetting: all on
Switch Function ON OFF
1 Command mode STAR mode VeriFone mode
2 Control code CR Invalid Valid
3
4 International character set Refer to the following.
5
6
Data transmission rate Refer to the following.
7
8 Data bit 8-data bit 7-data bit
9 Parity check No Yes
10 Parity Odd Even
International character set
Switch U.S.A. France Germany England Denmark Sweden Italy Spain
3 ON OFF ON OFF ON OFF ON OFF
4 ON ON OFF OFF ON ON OFF OFF
5 ON ON ON ON OFF OFF OFF OFF
10 1
ON
OFF
DIP switch
Power off
ROM cover
