Philips Saeco Modular LUXE CAP001/A - Manual (Page 21)

English
21

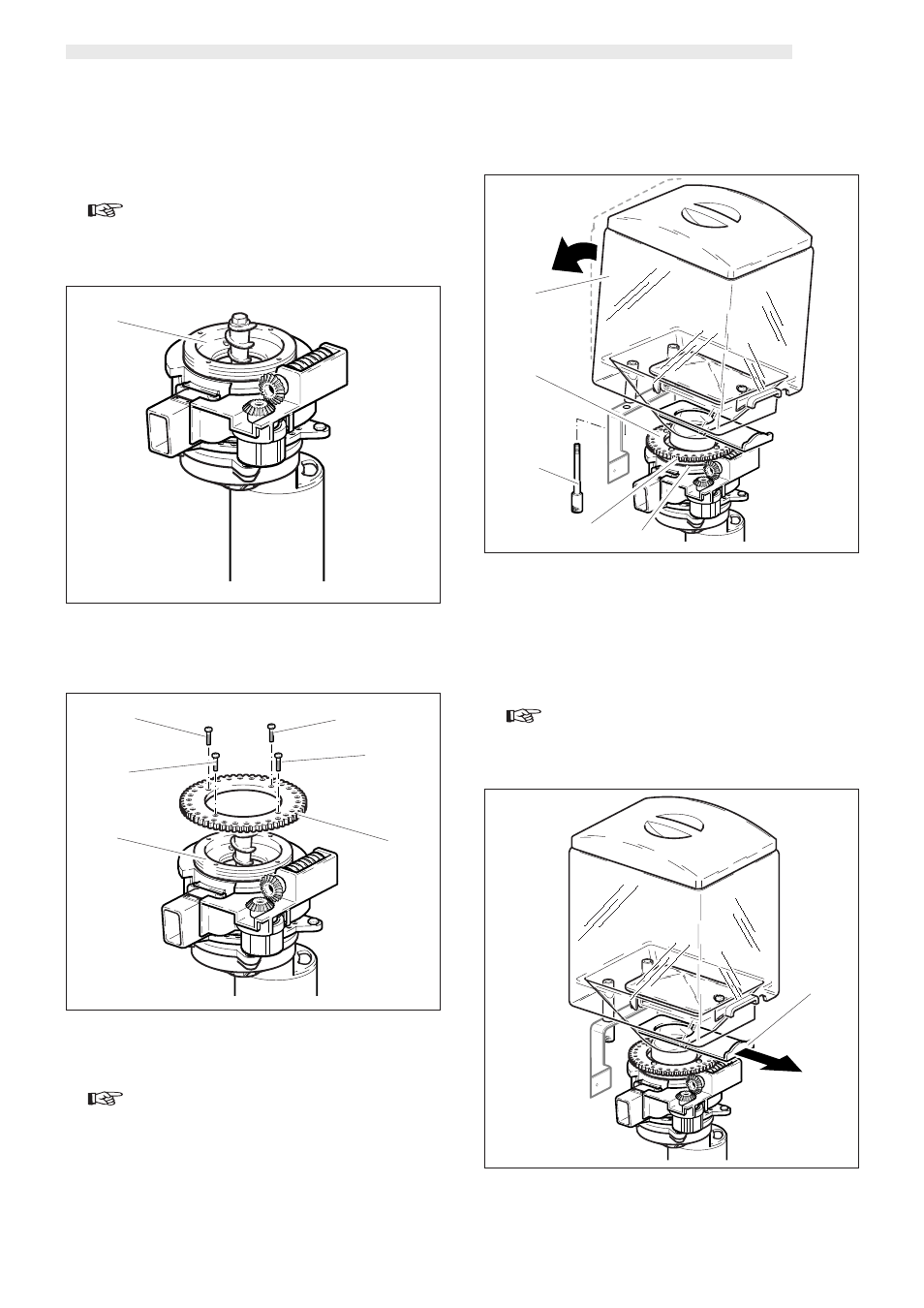

fig. 19
fig. 20
fig. 21
fig. 22
C
D
C
C
C
E
E
1
F
D
E
B
A
To assemble the coffee grinder it is necessary to:
- Completely screw the adjustment ring nut (ref. E, fig. 19), then
unscrew it by half a turn.
Important
This last operation is necessary both to avoid the jamming
and to prevent damaging the grinders.
- Re-position the geared wheel (ref. D, fig. 20) and lock it by
tightening the screws (ref. C, fig. 20).
- Re-position the coffee hopper (ref. 1, fig. 21) by first hooking
the front part and then rotating it downwards.
Important
Attention should be paid to the positioning of the gasket (ref.
F
, fig. 21) which must fit properly in the geared wheel (ref. D,
fig. 21) and the ring nut (ref. E, fig. 21).
- Secure the hopper (ref. 7, fig. 21) by hand-tightening the screws
(ref. B, fig. 21).
- Open the stop slide (ref. A, fig. 22).
- Assemble the cup heating plate, by re-connecting it to the water
outlet pipe (ref. B, fig. 11), and the side panels (see “6.16
Disassembling/assembling the cover panels”)
Important
To resume normal machine operations it is necessary to verify
the correct adjustment of the grinding.
