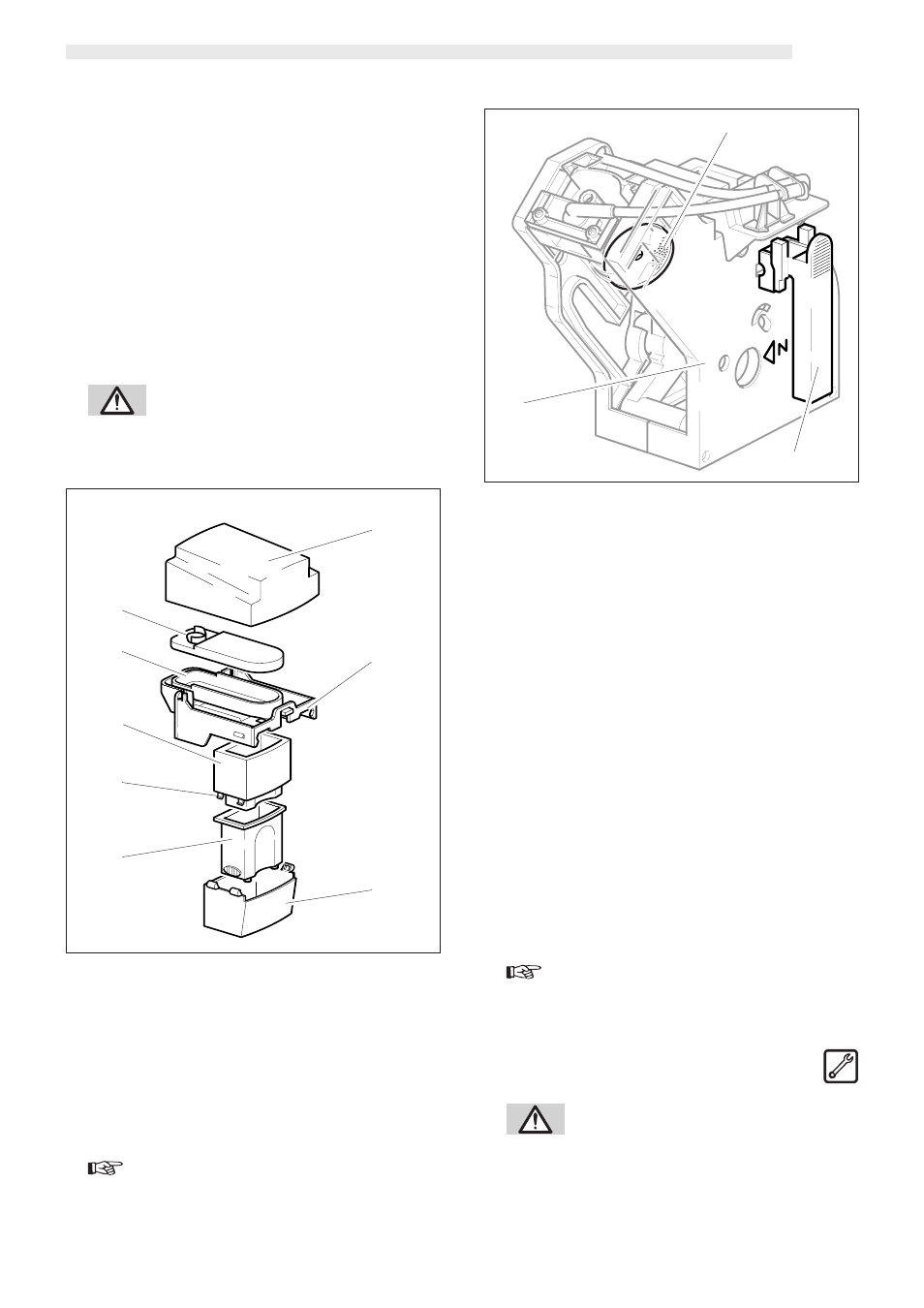

7.2.1 Coffee dispenser
The following can be dismantled:
-
The top cover (ref. A, fig. 12), of the fixed dispenser (ref. F,
fig. 12), by pulling it upwards;
- The rubber gasket (ref. H, fig. 12);
- The mobile dispenser (ref. G, fig. 12) by pulling it downwards;
- The telescopic dispenser (ref. E, fig. 12), sliding it from the
main dispenser (ref. G, fig. 12), after having pressed on the
hooks (ref. C, fig. 12) of the internal element (ref. B, fig. 12).
The metal conveyor (ref. D, fig. 12) has to be cleaned with a
damp cloth without disconnecting it from the fixed dispenser (ref.
F, fig. 12).
Danger of burns
The conveyor (ref. D, fig. 12) is heated by an internal heating
element; before cleaning, wait until it has completely cooled.
fig. 12
fig. 13
A
B
C
D
F
G
E
B
H
6
A
7.2.2 Brewing unit
The unit must be periodically cleaned by using the proper tablets
(see “6.14.2 Functions descriptions – GROUP RINSING”).
- Extract the brewing unit (ref. 6, fig. 13) from machine through
the handle provided (ref. A, fig. 13) and pressing the key
marked with “PRESS”.
- Carefully wash in plenty of warm water.
Do not use detergents.
Important
Never wash the brewing unit in the dishwasher.
- Lightly scratch the top filter (ref. B, fig. 13) with a plastic spoon
or a small spatula.
7.2.3 Drip tray and relative grid
Slide the drip tray (ref. 15, fig. 1) out of the machine and wash in
running water with particular attention for the grid.
7.2.4 Grounds tray
Wash the machine grounds tray (ref. 17, fig. 1) in running water
after having removed the drip tray (ref. 15, fig. 1) and having
removed it from its seat.
7.2.5 Steam/hot water spouts (LUXE version)
Clean the spouts (ref. 16-11, fig. 1) with a soft damp cloth.
In case of clogging of jets, the end part of the dispensers can be
unscrewed and the jets can be opened again with the help of a
needle.
7.2.6 Cup heating plate
Clean the cup heating plate (ref. 4, fig. 1) with a soft damp cloth.
7.2.7 Coffee hopper
Wash the coffee hopper (ref. 7, fig. 1) with water, using a soft
damp cloth.
Important
It is advisable to use up all coffee beans before cleaning.
7.3 Jamming
of the coffee grinder unit
Danger
Operation falling within the competence of the Maintenance
technician.
In case of jamming of the grinders, due to the presence of foreign
bodies among the coffee beans, the machine will lock issuing the
message “GRINDER ERROR” on display.
