Swim'n Play end deck - Manual (Page 12)

12
7 Before continuing, make sure that all the Posts are perfectly straight and tighten all
screws and nuts securely. You may now remove the saw horse or patio blocks and allow
your deck to rest on the ground.

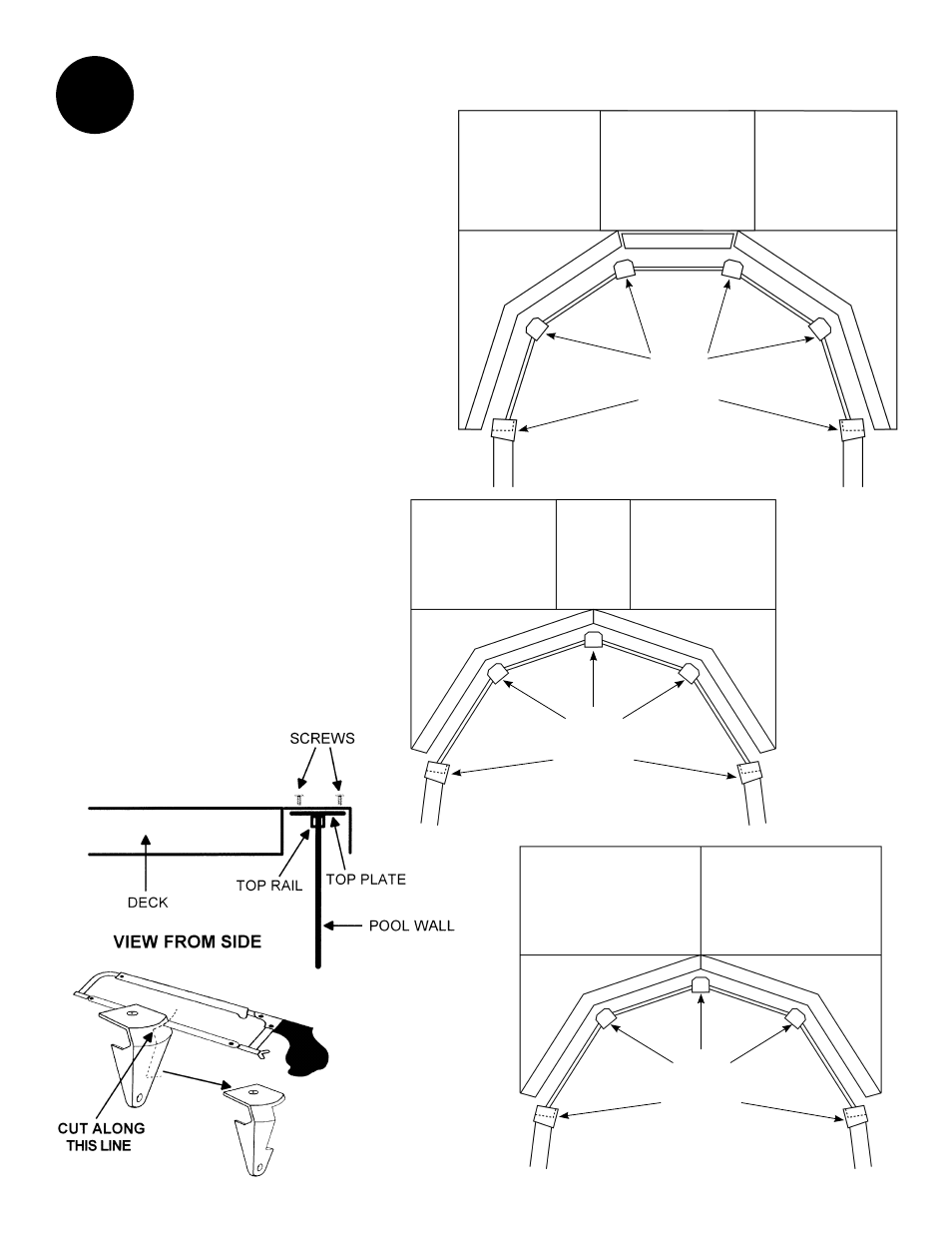

Attach your assembled
deck to your pool as shown.
Remove the ledges where
the deck will be assembled.
Move your deck into its fi nal
position.
On the 12’ and 15’
End Decks attach the
deck ledge to the verticle
top plates.
Drill holes on top of the
deck aligning with the holes
of the top plates and tighten
screws supplied for the
removed ledges.
If your pool is equipped with
full contour style ledge
covers, it is necessary to
cut them with a hacksaw
as illustrated below.
This will enable the deck to
mount closer to the pool.
VIEW FROM
ABOVE
18’ END DECK
PLATES
CUT COVER
15’ END DECK
VIEW FROM
ABOVE
PLATES
CUT COVER
VIEW FROM
ABOVE
12’ END DECK
PLATES
CUT COVER
