Swim'n Play end deck - Manual (Page 11)

11

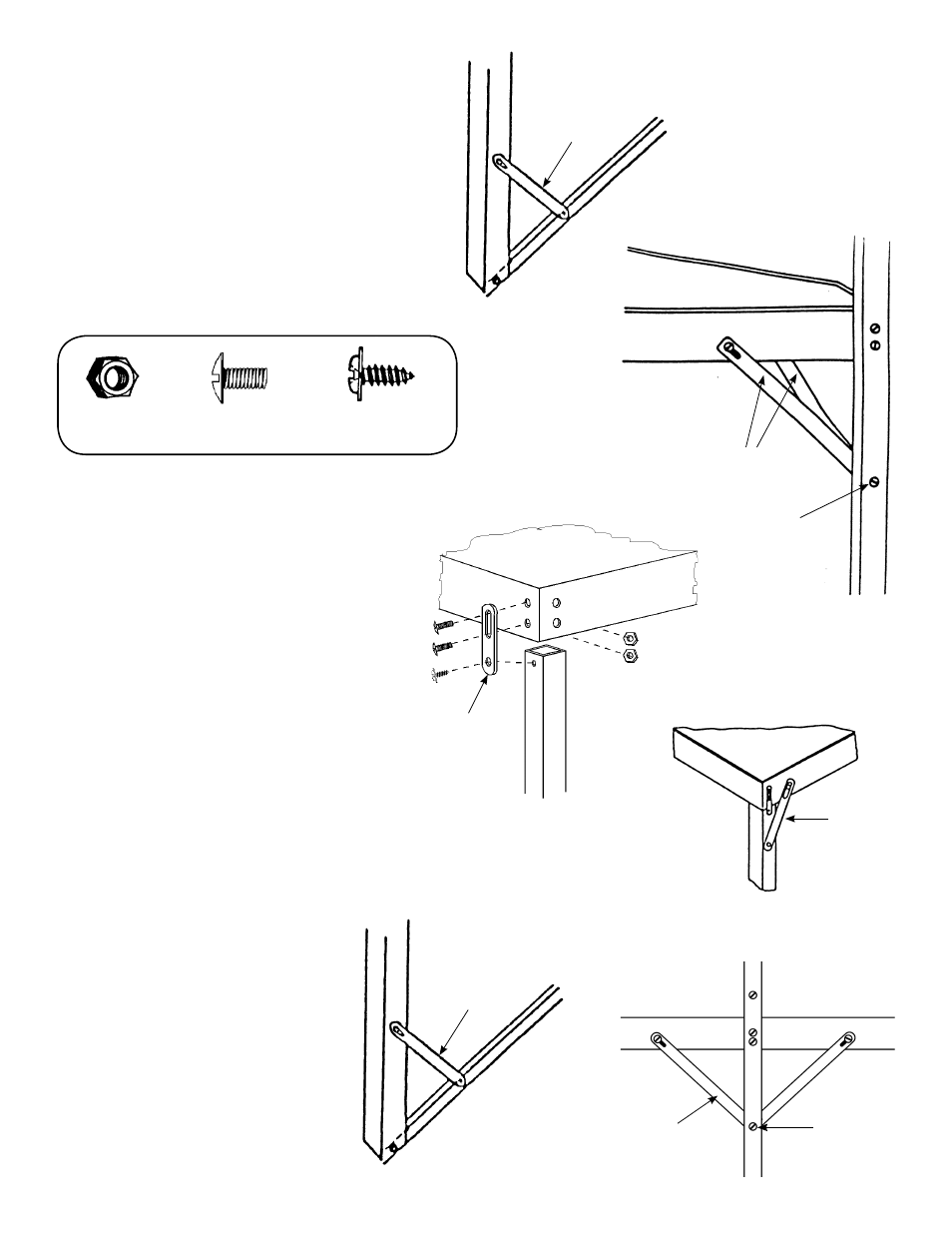

In the locations marked “Location A” (see the
previous page), attach Angle Support Bars to
the top of the Post and Deck as illustrated in
Close-up #16 at right. Also attach Angle
Support Bars to the bottom of the Post and
the Bottom Support Channel as illustrated in
Close-up #17 at right. Note: Where One Angle
Support Bar attach to the Post use the ½”
Sheet Metal Screws. Where Two Angle
Support Bars attach to the Post use the 1”
Sheet Metal Screw. Where they attach to
either the deck or the Bottom Support Channels.
1/4” x 20
HEX NUT
1/2” SHEET
METAL SCREW
1/4” x 20 x 1/2”
TRUSS HEAD SCREW
In the locations marked “Location C”
(see the previous page), attach
49-5/16” Posts to the Deck as illustrated
in Close-up #4 at right. Also attach Angle
Support Bars to the top of the Posts and
the deck as illustrated in Close-up #12
at right. Note: Where One Angle Support
Bar attach to the Post use the ½” Sheet
Metal Screws. Where Two Angle Support
Bars attach to the Post use the 1” Sheet
Metal Screw. Where they attach to the deck
use ½” Truss Head Screws and Hex Nuts.
For the 18’ Decks Only: In the
locations marked “Location B” (see the
previous page), attach Angle Support Bars
to the top of the Post and Deck as illustrated
in Close-up #11 at right. Also attach Angle
Support Bars to the bottom of the Post and
the Bottom Support Channel as illustrated
in Close-up #17 at right.
Note: Where One Angle Support
Bar attach to the Post use the ½”
Sheet Metal Screws.
Where Two Angle Support Bars
attach to the Post use the 1” Sheet
Metal Screw.
Where they attach to either the
deck or the Bottom Support
Channels use ½” Truss Head
Screws and Hex Nuts.
DECK
ANGLE
SUPPORT
BAR
1” SHEET METAL
SCREW
CLOSE UP #11
ANGLE
SUPPORT
BAR
CLOSE UP #17
SHORT
POST
BAR
DECK
CLOSE UP #4
49-5/16”
POST
DECK
CLOSE UP #12
ANGLE
SUPPORT
BAR
ANGLE
SUPPORT
BAR
CLOSE UP #17
CLOSE UP #16
PATIO
ANGLE
SUPPORT
BARS
1” SHEET
METAL SCREW
