FRONT
SPEAKERS
(6 )
SURROUND
SPEAKERS
(6 )
CENTER
SPEAKER
(6 )
SURROUND
BACK
(6 )
Front right
Surround
right
Front left
Surround
left
(Front)
Center
Surround
back
PRE OUT
SUB WOOFER
Powered subwoofer
DIGI-LINK
System
control
cord
Sherwood component
with DIGI LINK II or III
CD player
Tape deck
DVD player

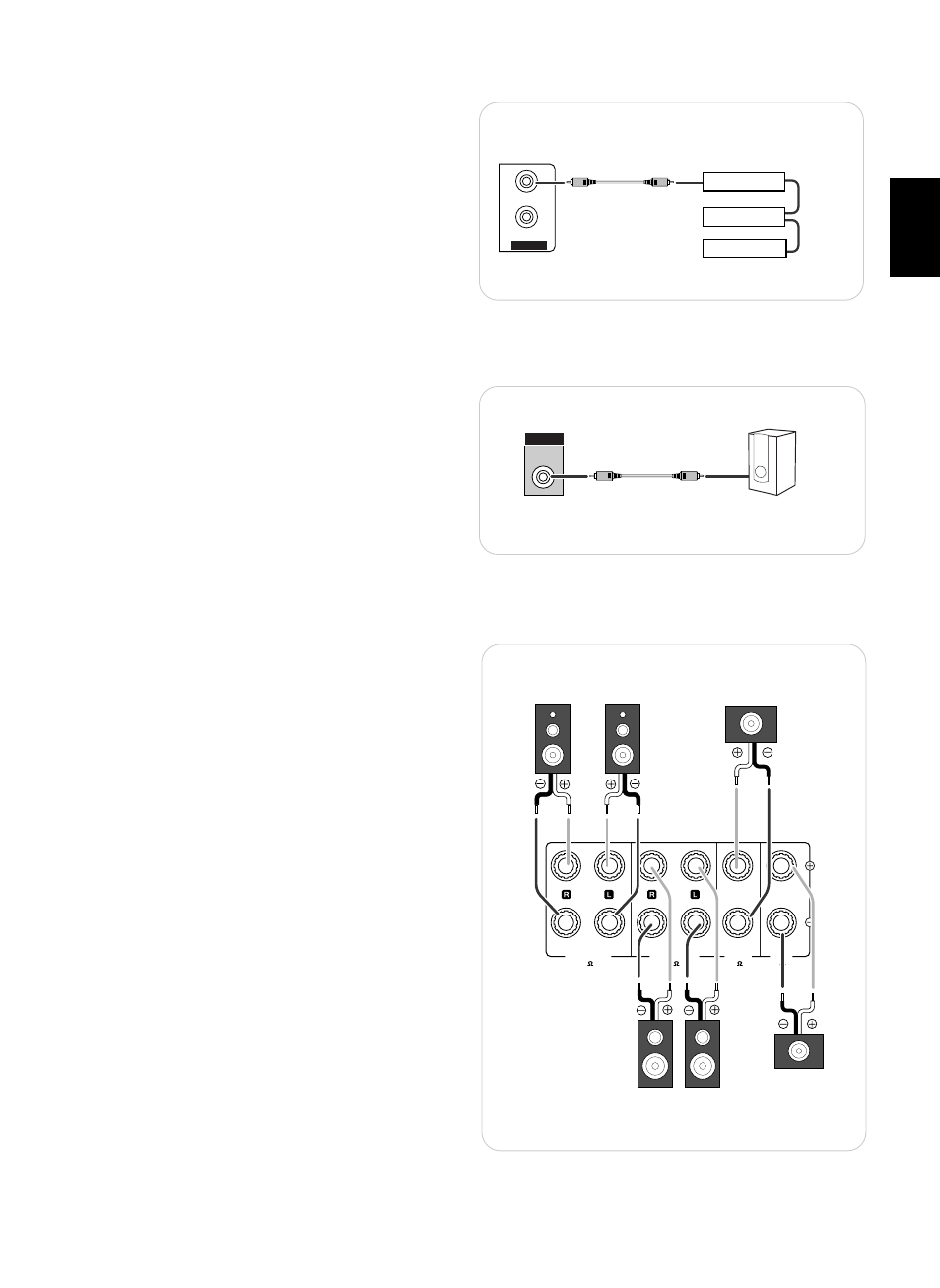

6. CONNECTING SYSTEM CONTROL
• Connect this jack to the DIGI LINK jack of the external
Sherwood component that uses the DIGI LINK II or III
remote control system.
7. SUBWOOFER PREOUT connection
• To emphasize the deep bass sounds, connect a powered
subwoofer.
8. CONNECTING SPEAKERS
• Be sure to connect speakers firmly and correctly according
to the channel(left and right) and the polarity(+ and -). If the
connections are faulty, no sound will be heard from the
speakers, and if the polarity of the speaker connection is
incorrect, the sound will be unnatural and lack bass.
• For installing the speakers, refer to “Speaker placement” on
page 9.
• After installing the speakers, first adjust the speaker settings
according to your environment and speaker layout.(For
details, refer to “Speaker Setup” on page 19.)
Caution :
• Be sure to use the speakers with the impedance of 6 ohms
or above.
• Do not let the bare speaker wires touch each other or any
metal part of this unit. This could damage this unit and/or
the speakers.
