Your SnapGear appliance
The following items are included with your SnapGear appliance:
• Power adapter
• Installation CD
• Printed Quick Install guide
• Cabling including
o 1 normal “straight through” UTP cable (blue color).
o 1 “cross-over” UTP cable (either gray or red color). If you have the LITE+
or LITE2+ you will receive two straight through cables (blue color).
LEDs
The front and rear panels contain LEDs indicating status. The front panel LEDs are
illustrated in the following figure and detailed in the following table.

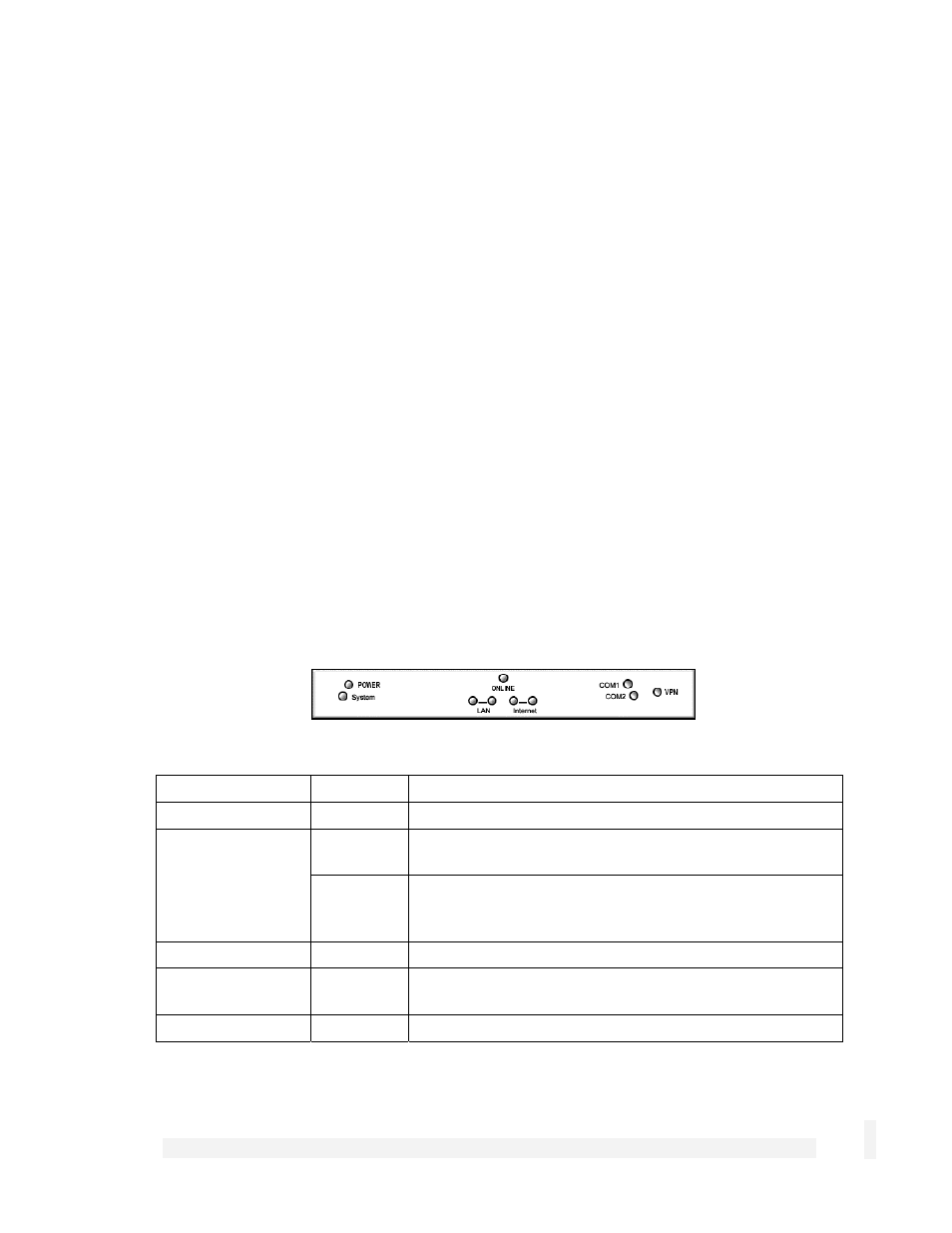

Figure 1.1 SnapGear SOHO+/PRO front panel LEDs
Label Activity
Description
POWER/PWR
On
Power is supplied to the SnapGear appliance.
Flashing
System flashes once every second when the
SnapGear appliance is operating correctly.
System/SYSTEM
On
If the System LED is on and not flashing, an operating
error has occurred. In this situation, the other LEDs
form a diagnostic pattern indicating the failure.
Online/ONLINE
On
Indicates a valid Internet connection is present.
COM 1, 2
Flashing
For either of the SnapGear appliance COM ports,
these LEDs indicate receive and transmit data.
VPN
On
Virtual Private Networking is enabled.
