IPSec setup
The SnapGear appliance supports IPSec tunnels as well as PPTP tunnels. To setup your
VPN using IPSec, select IPSec from the VPN menu to display the following screen:

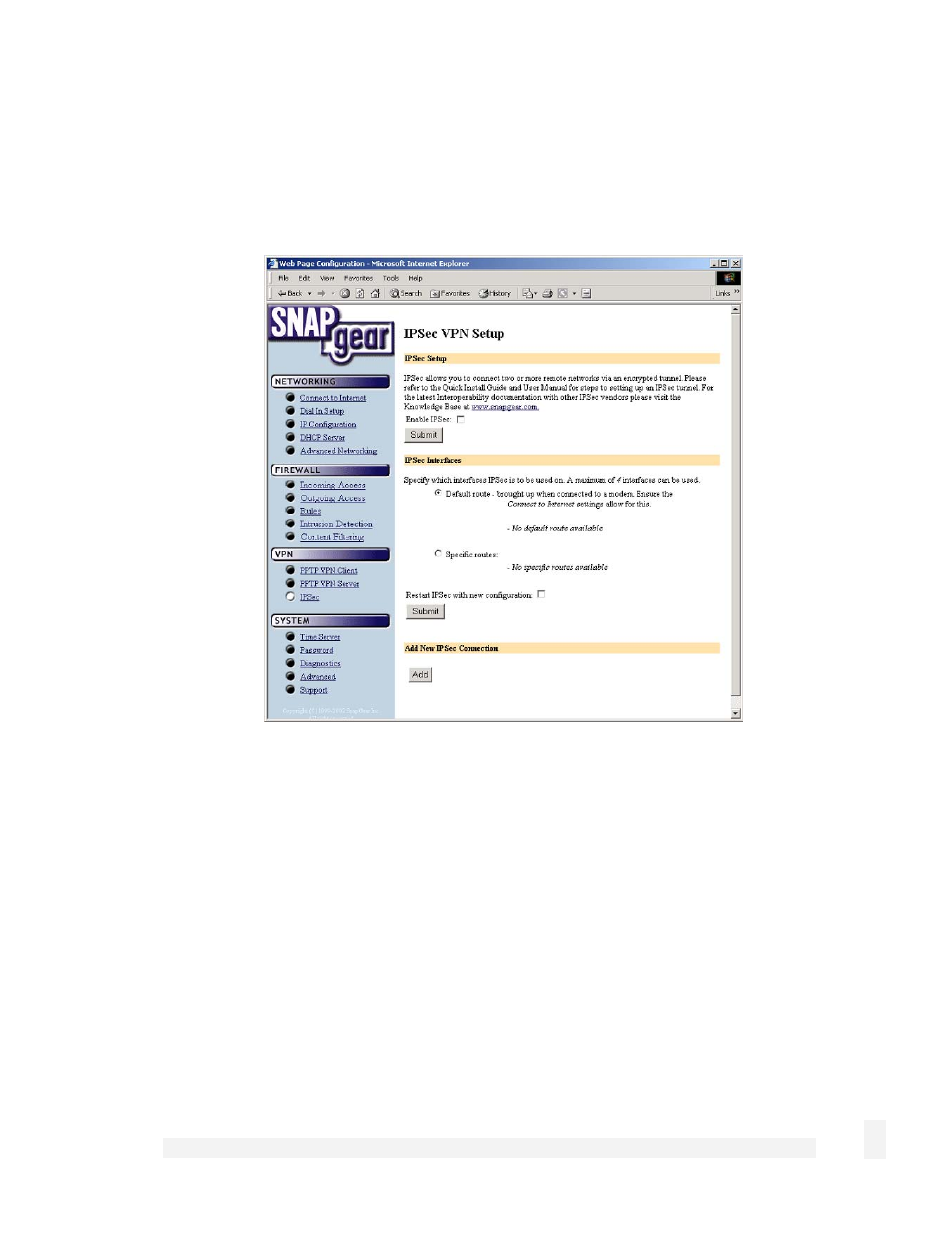

Figure 7.12 IPSec setup
Enable IPSec by clicking the Enable IPSec box underneath the IPSec Setup title and
then click Submit.
Enable the interface where you want to use IPSec. This may be the default gateway or a
PPP interface for ADSL and cable modems, or eth1 if the SnapGear appliance is
connected to a router before connecting to the Internet and then click Submit.
Virtual Private Networking
85
