6
C3X Lumis HOST
VIDEO S-VIDEO COMPONENT / RGBS 12V OUT GRAPHICS RGB
DVI-D HDMI AUDIO-OUT HD-SDI RS-232 USB LAN
2
1
6
5
8
7
10
11
9
4
3
17
16
15
14
13 18
12
CONTROL
R/Pr G/Y B/Pb H/HV V
R/Pb G/Y B/Pb H/HV V
R/Pb G/Y B/Pb H/HV V
R/Pb G/Y B/Pb H/HV V

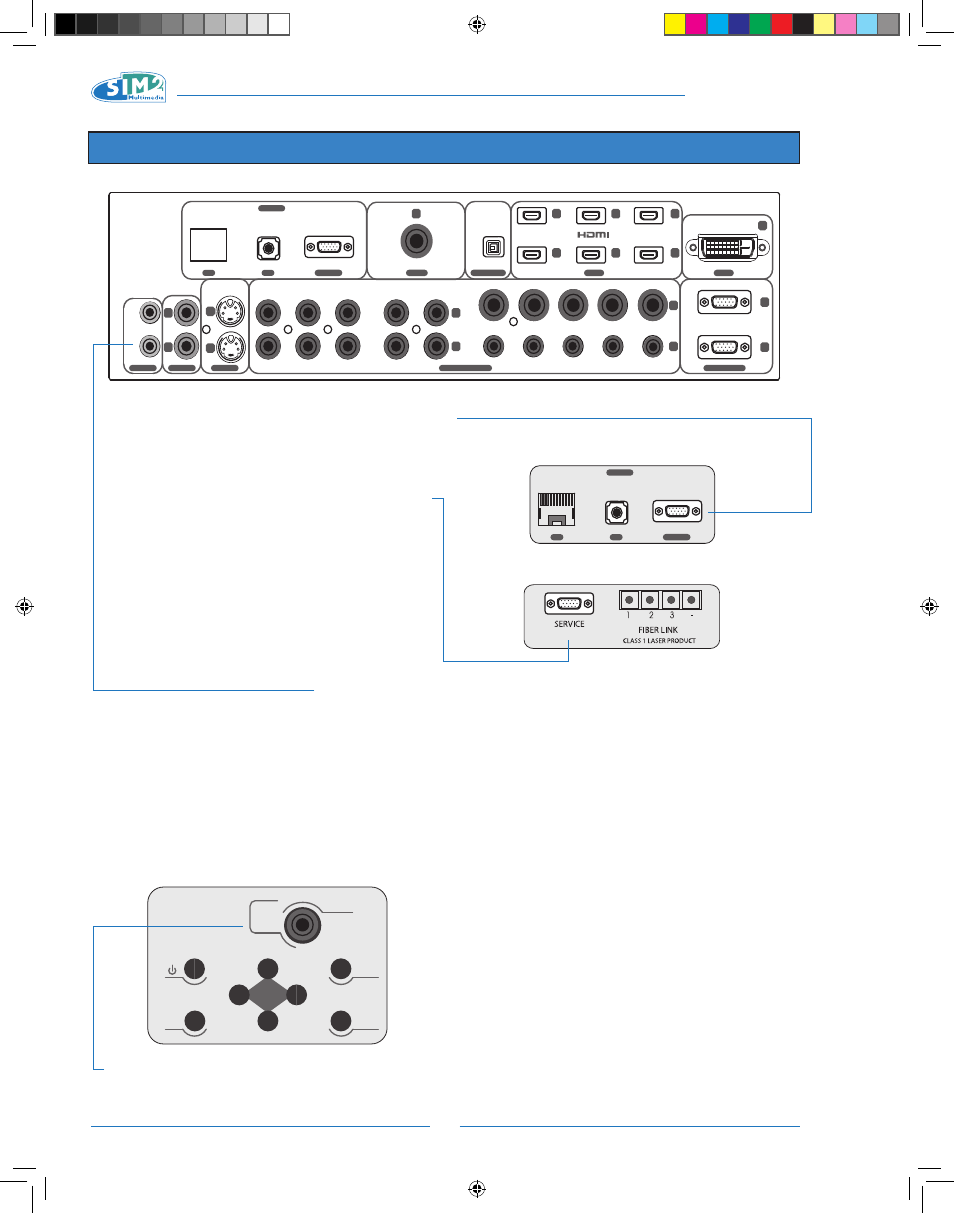

5 CONNECTION PANEL
INPUT USAGE SUGGESTIONS
PROJECTOR BACK PANEL
(1,2) VIDEO
Television receiver, DVD player, VCR, Camcorder, video
game console
(3,4) S-VIDEO
Television receiver, DVD player, VCR, Camcorder, video
game console
(5,6,7,8) COMPONENT / RGBS
Television receiver, HDTV receiver, DVD player, VCR, cam-
corder, video game console, Blu-ray player, HD-DVD player
(9,10) GRAPHICS RGB
Computer
(11) DVI-D
HDTV receiver, DVD player, Computer
DVI-D (Non -HDCP) - The DVD-D input is not equipped with
HDCP (High-bandwidth Digital Copy Protection). This input
will not display images encrypted with HDCP. Some of the
latest graphic cards now support HDCP. Please contact the
card manufacture for more information.
(12,13,14,15,16,17) HDMI
HDTV receiver, DVD player, video game console, Blu-ray
player.
(18) HD-SDI
Professional and broadcasting equipement
MOTORISED SCREEN OUTPUTS
Host system is equipped with 2 outputs (Voltage: 12
Vdc) for motorised projection screen and screen mask-
ing systems, used for masking off the projection area to
match the projected image aspect ratio.
The TRIG1 output is activated when the projector is
switched on and is de-activated when the projector is in
standby mode. The TRIG2 output can be set with the
Screen control adjustment in the Aspect menu.
This output is ideally suited for multiple aspect ratio
screens with motorized masking systems.
The additional 12V Trig output placed on the projector
could be used to control an anamorphic lens placed in
front of the projector.
USB - RS232 INTERFACES (Control)
Projector and HOST system functions can be control-
led remotely from a PC or other dedicated devices con-
nected to the RS232 or USB connectors on the con-
nector panel.
Projector has one RS232 port
(only for service user)
and HOST system has one RS232 and one USB port.
We recommend using high quality serial or USB cables
to ensure that the electrical control signals do not dete-
riorate and are therefore read correctly. A specific SIM2
driver must be installed on the control PC, supplied by
your dealer/distributor to use the USB port.
Upon request, SIM2 will also supply further instructions
on the protocol used for programming remote control
systems.
ESC
MENU
INPUT
12v TRIG
Trigger
Max 100mA
LAN - RJ45 (Control)
The HOST unit in equipped with one LAN RJ45 Port for
remote control. See chapter 8 for further details.
RS-232 USB LAN
CONTROL
