Product overview
Product overview

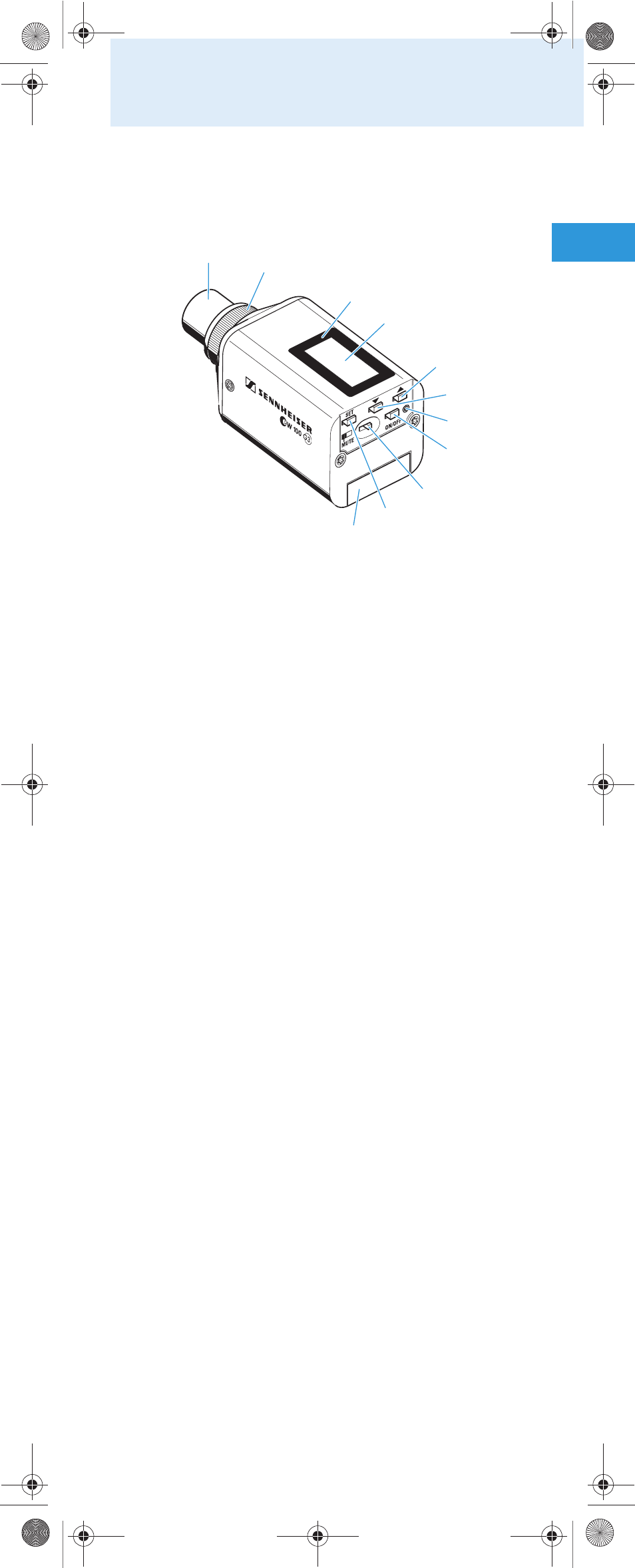

Overview of the SKP 100 G3 plug-on transmitter
³
Microphone input, XLR-3 socket
(female, unbalanced)
·
Mechanical locking ring of
XLR-3 socket
»
Infra-red interface
¿
Display panel, backlit in orange
´ UP
button
(
̆
)
² DOWN
button (
̄
)
¶
Operation and battery status
indicator, red LED
lit =
ON
flashing =
LOW BATTERY
º ON
/
OFF
button
(serves as the ESC (cancel) key
in the operating menu)
¾ MUTE
switch
µ SET
button
¸
Battery compartment cover
·
»
³
¿
²
¶
¾
µ
¸
´
º
