52
Item Part No. Description Qty.*
**
1 22414 Agitator Drive Rear Housing 1
2 22415 Agitator Drive Front Housing 1
3 22416 Agitator Drive Spacer 2
4 22418 3/8” Pitch x 20mm Bore 21T Sprocket 2
5 22422 3/8” Pitch x 20mm Bore 15T Sprocket 2
6 22417 3/8” Pitch x 33 Link BS Chain 2
7 43396 3/8” Pitch Joiner Link 2
8 22425 Agitator Shaft Extension 2
9 22426 Seed Shaft Extension 2
10 43428 Nylon Bush 6
11 22419 Box Shaft Connecting Sleeve, 19 Run 2
11 23633 Box Shaft Connecting Sleeve, 15 Run 2
12 22420 Agitator Shaft Joining Collar 2
13 45415 M8 x 45 Class 4.6 Zinc Plated Bolt 2
14 45416 M8 x 60 Class 4.6 Zinc Plated Bolt 2
15 45137 M8 Nylock Nut 4
16 45180SS M8 x 10 Stainless Steel Socket Head Grub Screw 4
17 47615 6 x 40 Pipe Lynch Pin 4

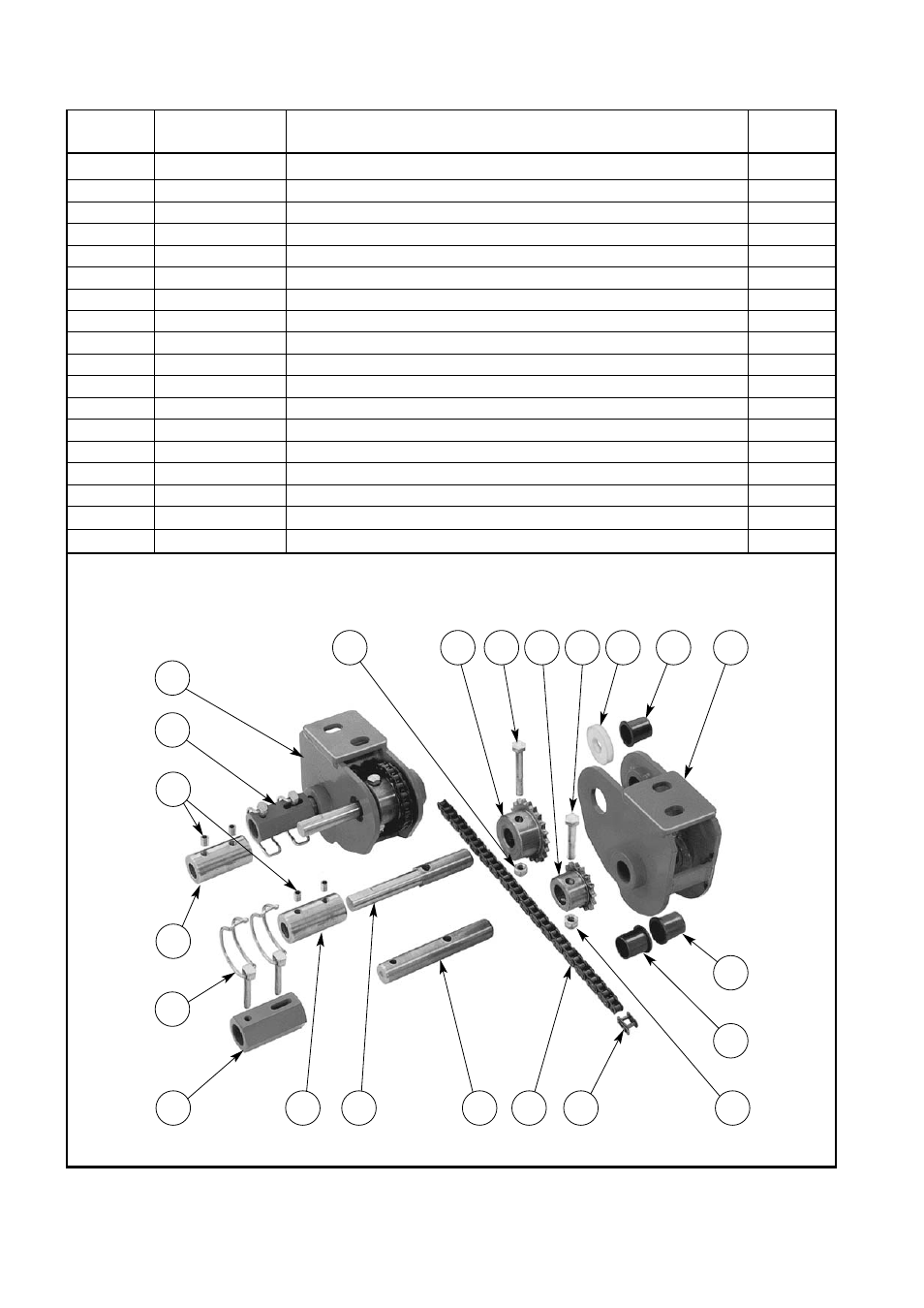

Vineyard Seeder
Agitator Drives
1
2 3 4 5 13 14
6
15
7 15 8 9
10
10
10
11
12
17
12
11
16
Rear Agitator
Drive Complete
Assembly
Pt No 22446
Front Agitator
Drive Complete
Assembly
Pt No 22445
Front assembly only shown exploded
*Quantities shown are sufficient for one rear end and one front agitator assembly
