Vineyard Seeder

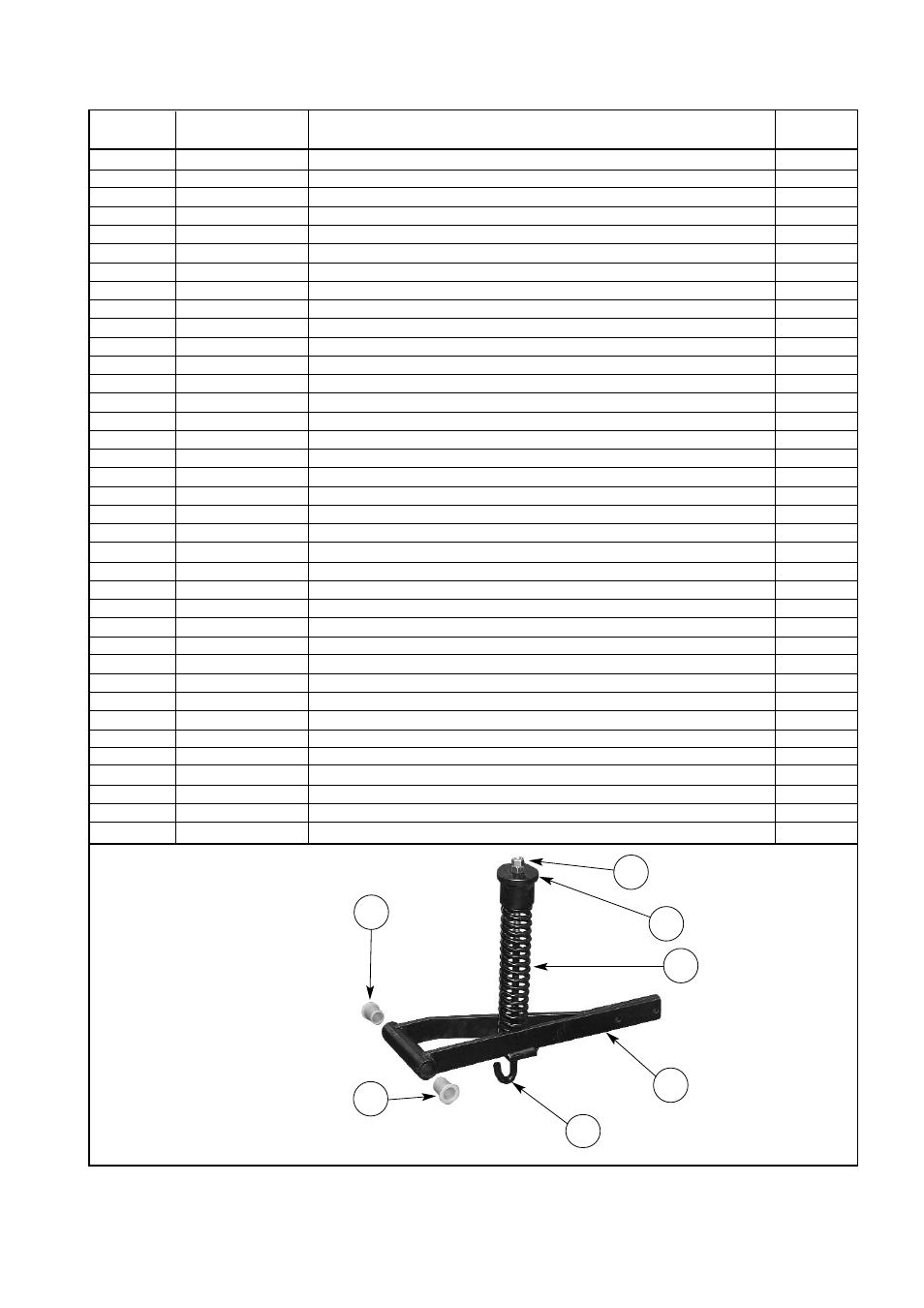

Single Disc Dragbars
Item Part No. Description Qty.
1 27350 Dragbar Assembly - LH Long 3
2 27351 Dragbar Assembly - LH Short 2
3 27352 Dragbar Assembly - RH Long 3
4 27353 Dragbar Assembly - RH Short 2
5 27358 Single Disc Coulter Assembly - Rear LH (Includes Items 9 & 13-21) 3
6 27359 Single Disc Coulter Assembly - Front LH (Includes Items 10 & 13-21) 2
7 27360 Single Disc Coulter Assembly - Rear RH (Includes Items 11 & 13-21) 3
8 27361 Single Disc Coulter Assembly - Front RH (Includes Items 12 & 13-21) 2
9 27362 Coulter Casting W/Assembly - Rear LH 3
10 27363 Coulter Casting W/Assembly - Front LH 2
11 27364 Coulter Casting W/Assembly - Rear RH 3
12 27365 Coulter Casting W/Assembly - Front RH 2
13 10192 Disc 10
14 14443 Bearing Housing 10
15 10197 Single Disc Coulter /axle 10
16 10198 Axle Spacer 10
17 10278 Bearing 6207 2RS1 10
18 45402S M6 x 20 Bolt 50
19 45136 M6 Nyloc Nut 50
20 45140 M16 Nyloc Nut 10
21 45160 M16 H/D Washer 10
22 27370 Spring Cap Assembly 10
23 27773 Spring Rod 10
24 45131 M12 Plain Nut 20
25 45437 M12 x 50 Bolt 20
26 45139 M12 Nyloc Nut 20
27 45159 M12 H/D Washer 20
28 43361 Acetal Bush 20
29 27774 Spring 10
30 27377 Dragbar Axle Assembly 1
31 45417S M10 x 20 Bolt 1
32 45166 M10 Spring Washer 1
33 27460 Corrugated Hose
φ
38x540 (Not shown) 8
34 27461 Corrugated Hose
φ
38x605 (Not shown) 6
35 27462 Corrugated Hose
φ
38x630 (Not shown) 4
36 27463 Corrugated Hose
φ
38x655 (Not shown) 2
37 27280 Single Coulter Front Frame Assy 1
Pt. No. 67372
Issue 0806
23
24
22
4
28
28
29
