Maintenance & Care
Lubrication Instructions
Your new Duncan Ag Vineyard Seeder
will give long and efficient service if
given normal care and maintained
properly
Lubrication
Precautions
Keep the service area clean and dry.
Only service or lubricate the machine
when it is stationary and securely
supported.
Precautions with Grease
Grease nipples and the grease gun should
be carefully cleaned before use to prevent
dirt being forced into the bearings.
Dirty grease should be forced from the
bushes and disposed of safely.
Greases should not be mixed as the
structure may be weakened by the mixing of
different types of thickener, which may
cause softening and loss of grease from the
bearings by running out.
Item Components Lubricant Frequency
*
1 Wheel Bearings (2) Castrol ACX Grease (Refer Page 36) Annually
2 Gearbox (1) Castrol Oil Agri Trans Plus (1.25 Litres) Maintain Level
3 Drive Chains (4) Suitable Roller Chain Lubricant 6 Monthly
4 Single Discs Pre-packed & Sealed (Refer Page 38) Not Required
5 Drive Shafts (Pedestal) Pre-packed & Sealed (Refer Page 44 & 45) Not Required
6 Agitator Shaft Supports Nylon Bushes (Refer Page 50) Not Required
7 Seeder Shafts Nylon Supports (Refer Page 52) Not Required
8 Dragbar Pivots Acetal Bushes (Refer Page 39) Not Required
9 Drive Cassettes (8) Castrol ACX Grease (Refer Page 44) Weekly
10 Wheel Leg Pivots (2) Castrol ACX Grease (Refer Page 36) Weekly
Lubrication Chart

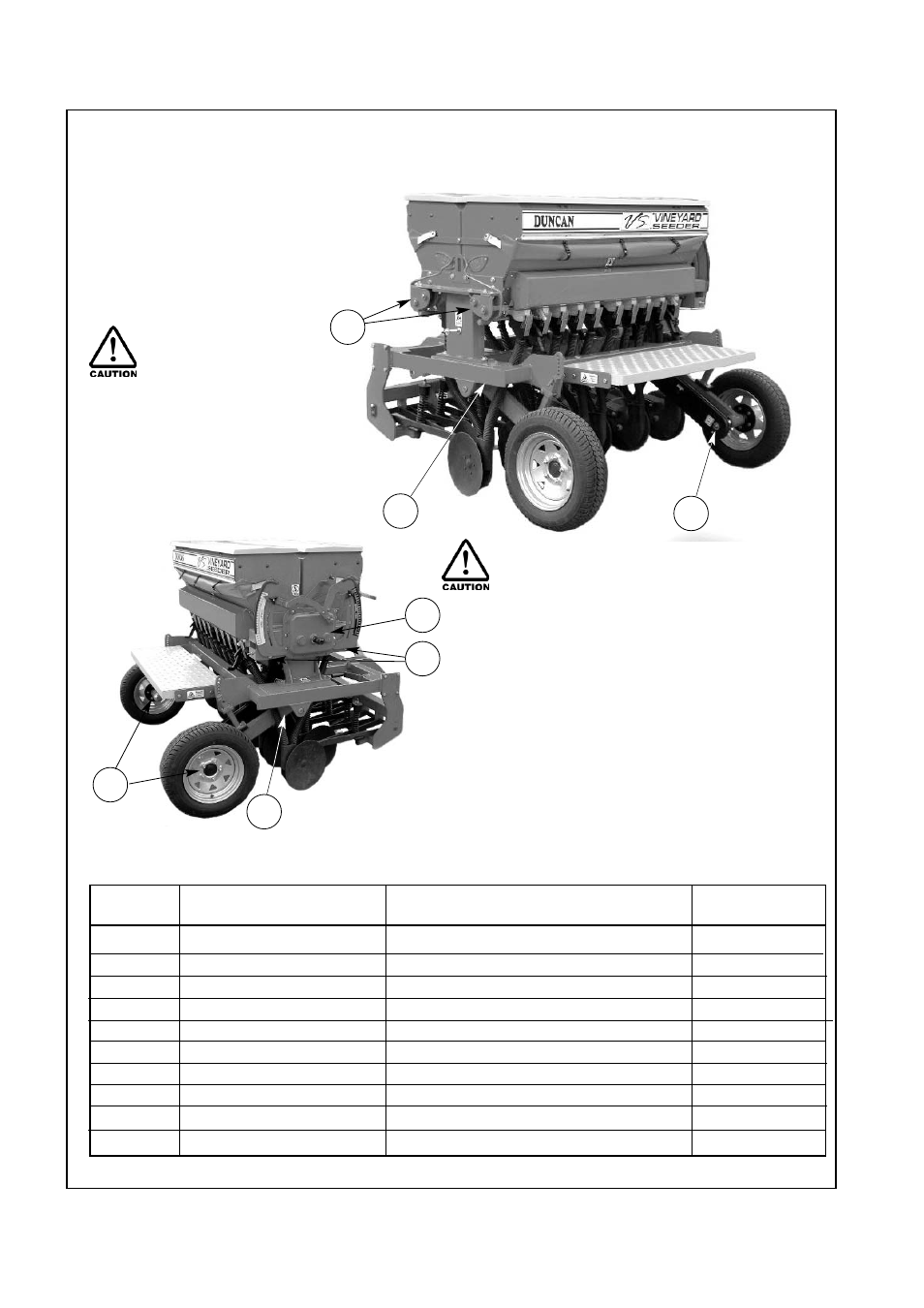

Lubrication Points on the Vineyard Seeder
*
The lubrication frequencies are only a guide. Actual frequency will be dependent on extent of use and ground conditions.
1
3
2
10
9 10
3
Fig 16
Fig 17
