10. FEATURES/CONTROL PANEL
3
5
1
2

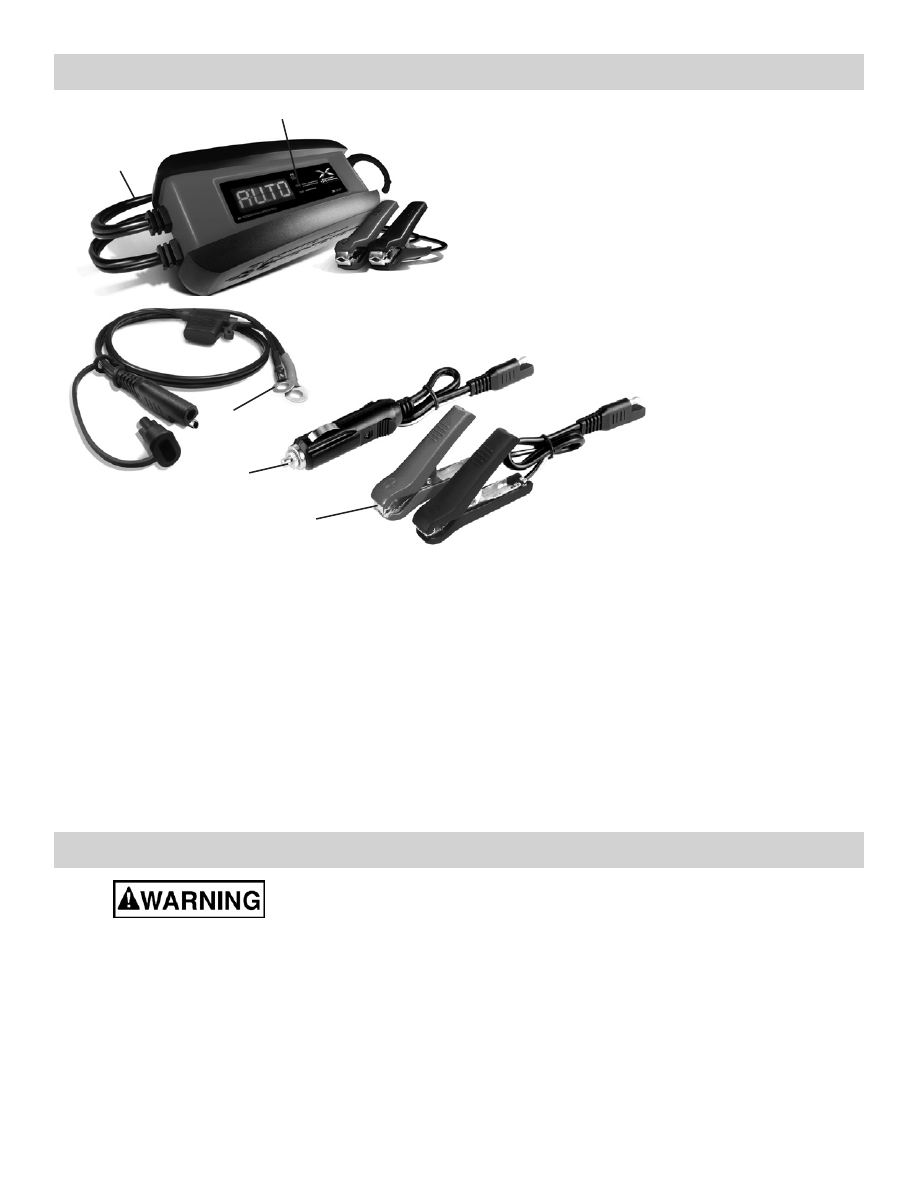

1. Battery Status LEDs
2. AC Power cord
3. Quick-Connect Battery Clamp
Cable Assembly
4. Quick-Connect Cable
with Fuse
5. Cord Set w/12V Cigarette
Adapter
4
10.1 Digital Display
The digital display gives a digital indication of the status of the
battery and charger. See the TROUBLESHOOTING section for a
complete list of messages.
10.2 LED Display
CHARGING (yellow) LED lit: Indicates the charger is charging
the battery.
CHARGED (green) LED lit: Indicates the battery is fully charged
and the charger is in maintain mode .
11. OPERATING INSTRUCTIONS
This battery charger must be properly assembled in
accordance with the assembly instructions before it is used.
The charger does not have an ON/OFF switch. Plug the SP3 into
a 120V AC electrical wall outlet only after battery connections
have been made.
NOTE: This charger is equipped with an auto-start feature. It will
not supply current to the battery clips until a battery is properly
connected. The clips will not spark if touched together.
