4_SADT-104WM

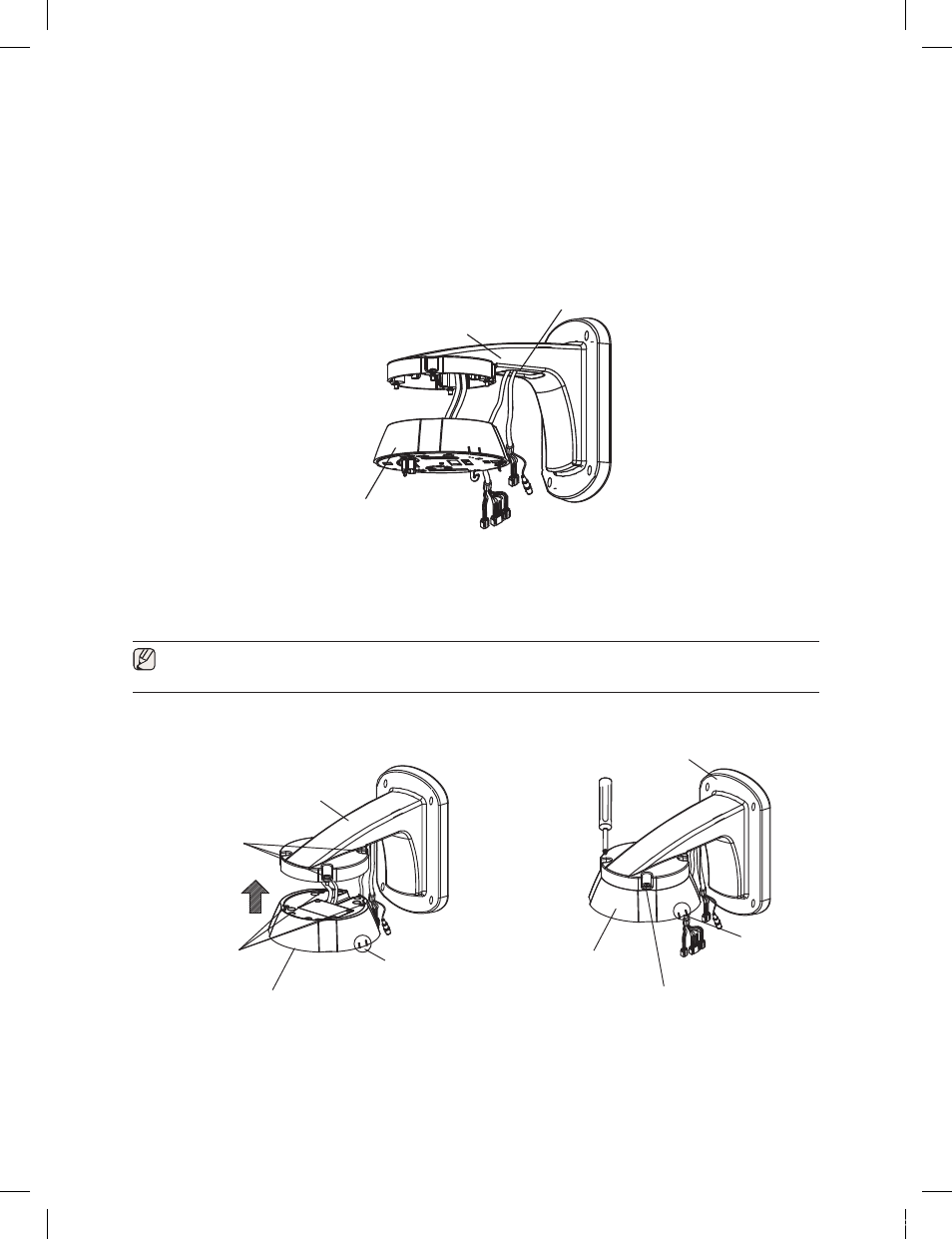

6. Prepare the Camera Adaptor for the applicable camera. Refer to the installation guide for
the applicable camera and configure the initial settings of the Camera Adaptor.
(For more information, see the installation guide for the Camera)
Insert the cable of the Camera Adaptor into the Wall Mount Adaptor before pulling it out
throught the hole of the Cover Fixing Part.
7. Insert the 4 screws on the Wall Mount Adaptor into the corresponding screw holes on the
Camera Adaptor and fix them so that the Camera Adaptor is secured to the Wall Mount
Adaptor.
Ensure that the part “A” of the Camera Adaptor faces the arrow direction in the figure
during the fixation.
WALL MOUNT ADAPTOR
the place for joining a cover
CAMERA ADAPTOR
WALL MOUNT ADAPTOR
SCREW
The place for
joining a screw
CAMERA ADAPTOR
WALL MOUNT ADAPTOR
"A" CAMERA ADAPTOR
SCREW
"A"
