Instructions for the installer, 2 burner and nozzle characteristics table, 3 arrangement of burners on cooking hob – Smeg A41A User Manual
Page 9: Natural gas – g20 20 mbar
Instructions for the installer
43
3.2 Burner and nozzle characteristics table
Burner
Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary
1.05
50
30
360
76
75
Semi rapid
1.8
65
33
450
131
128
Rapid
3.0
85
45
750
218
214
Triple crown
3.3
91
68
1600
240
235
Burner
Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary
1.05
72
360
Semi rapid
1.8
97
450
Rapid
3.0
115
750
Triple crown
3.5
133
1600

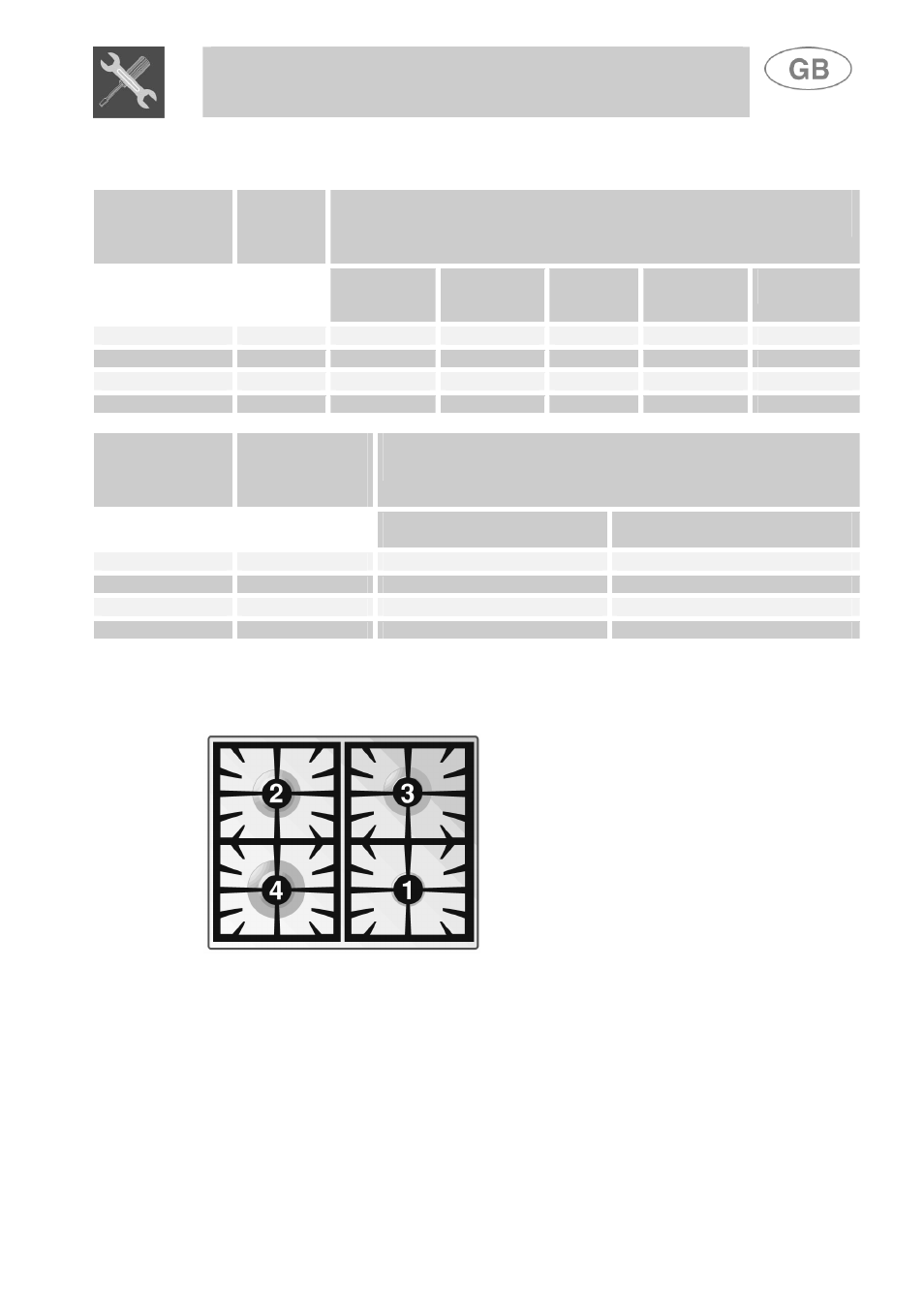

3.3 Arrangement of burners on cooking hob
BURNERS
1
Auxiliary
2
Semi rapid
3
Rapid
4
Triple crown
