Step 1: Attach Backboard Joining Plates to Bottom Backboard
NoTe
Do not fully tighten the ¼-20 x 0.5″ Screws (E) until assembly is complete.
Attach the four Backboard Joining Plates (C) to the Bottom Backboard (B) with eight ¼-20 x 0.5″ Screws (e) and eight ¼″
Lock Washers (F). See Figure 1.

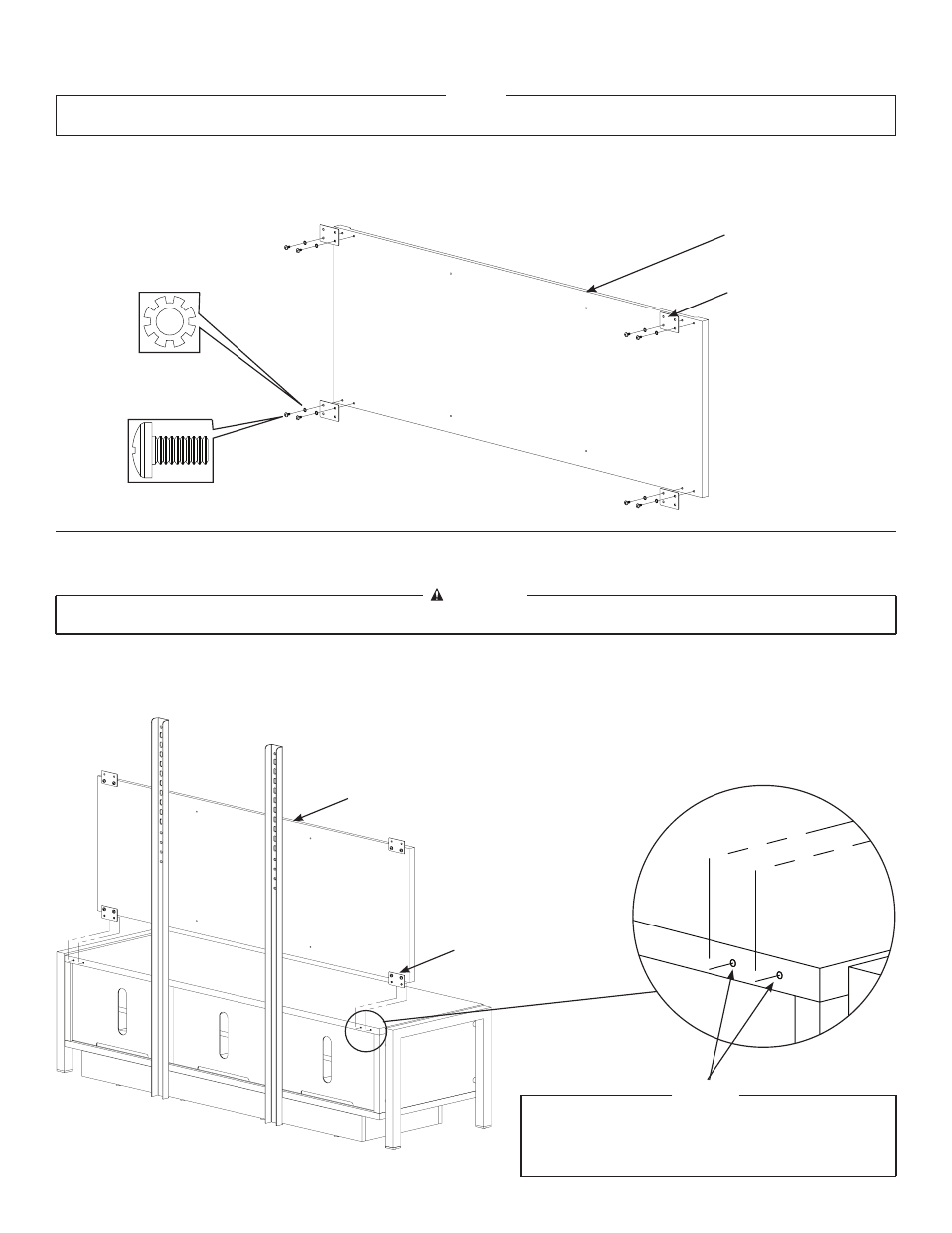

Figure 1
Step 2: Attach Bottom Backboard to JFV65 Lowboy
CAUTIoN
The Bottom Backboard (B) is heavy. To avoid injury or product damage, two people must lift the Backboard.
Position the Bottom Backboard (B) on the JFV65 as shown in Figure 2. The pre-drilled holes on the long edge of the
Backboard should face up.
Figure 2
Screw (e)
Lock washer
(F)
Backboard Joining
Plate (C)
Bottom Backboard (B)
Bottom Backboard (B).
Pre-drilled holes on this edge
Backboard Joining
Plate (C)
NoTe
If these threaded inserts are not present
on your furniture, contact Sanus Customer
Service for a JFRU Update Kit.
