Page 96: Assembl y
ASSEMBLY
SE10-4A/SE15-4A 03/09
Assembly Section 3-12
© 2009 Alamo Group Inc.
ASSEMBL
Y
WINCH AND STAND ACCESSORY

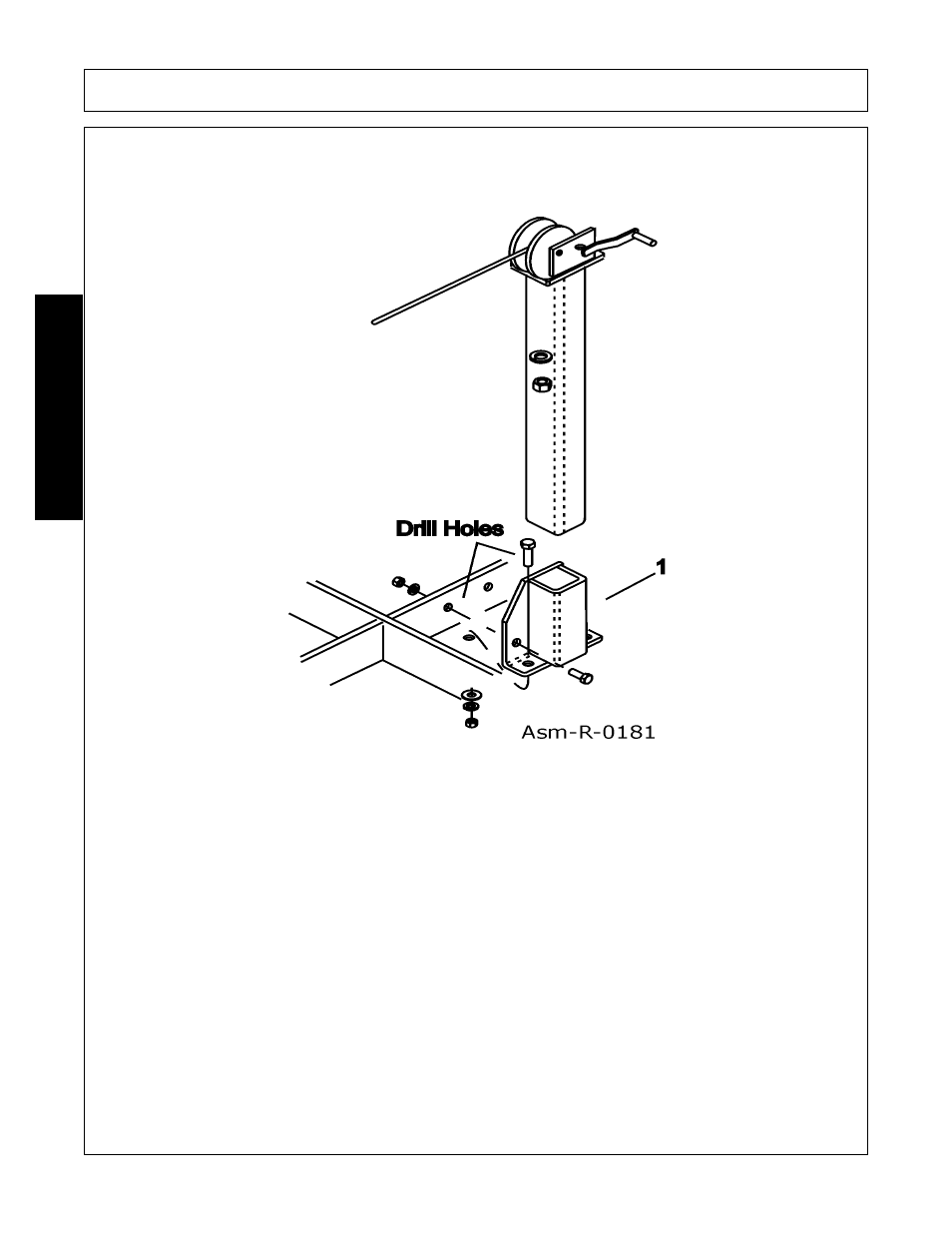

Install Mounting Bracket (1) onto left rear side of Center Section. Install 5/8" x 1-1/2" bolts and locknuts through
holes in frame to retain bracket. FIGURE Asm-R-0181. Holes must be drilled through Deck.
