8

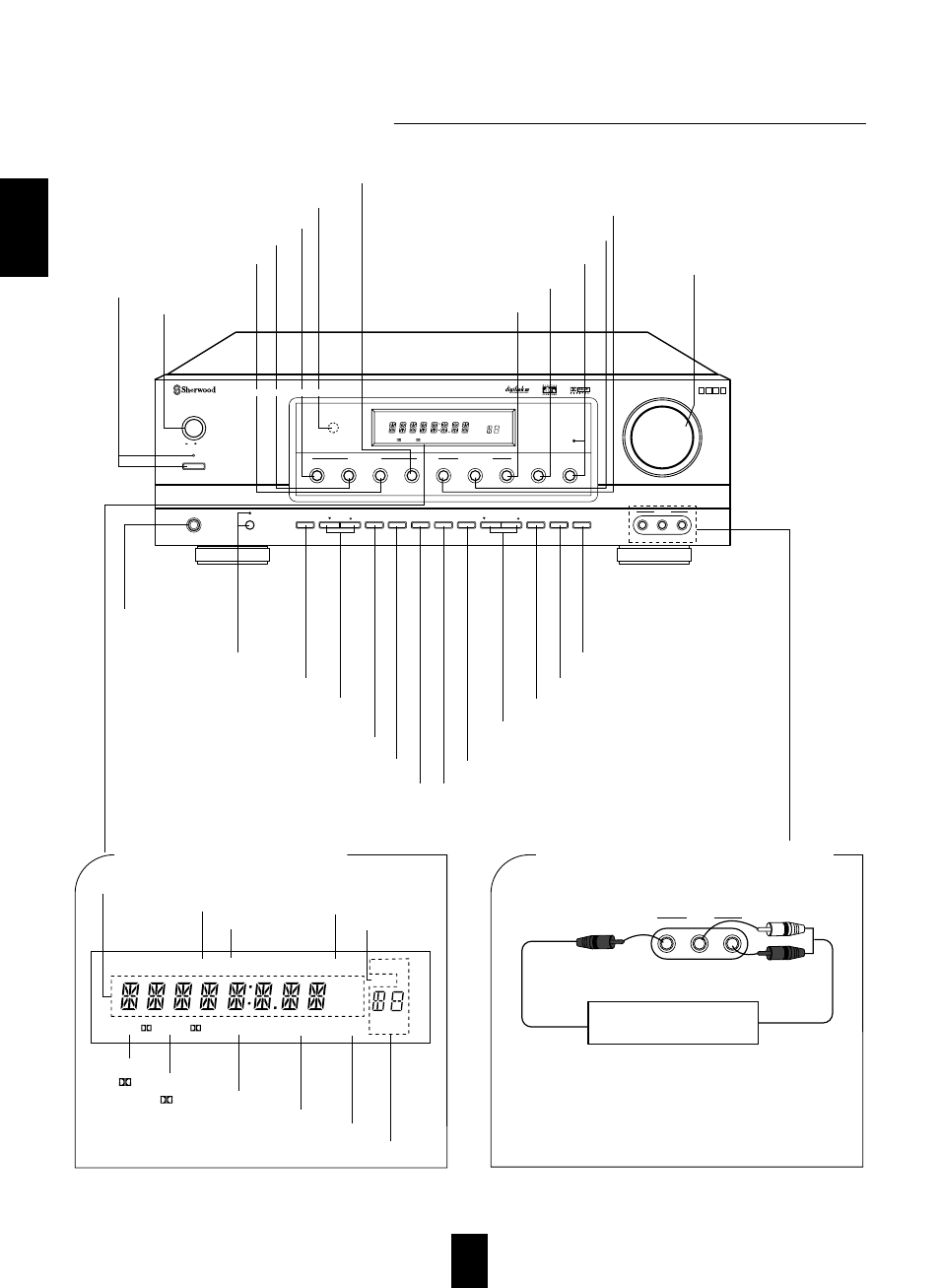

F Frro on ntt P Pa an ne ell C Co on nttrro olls s
REMOTE SENSOR
MASTER VOLUME
TONE
DIRECT
ON/STANDBY
MAIN POWER
STANDBY
ON/ OFF
TUNING/PRESET ADJUST
PHONES CHANNEL SELECTOR
VIDEO L - AUDIO - R
VIDEO 3
BAND FM MODE T/P MODE TONE MODE SPEAKER MODE DYNAMIC RANGE MEMO/ENTER CINEMA EQ
ON/OFF
SPEAKER
INPUT SELECTOR
AUDIO VIDEO TAPE MON. 6CH DIRECT DSP MODE AUTO STEREO
DIGITAL
INPUTS TONE
DIRECT
SURROUND MODE
TOTALLY DISCRETE AMPLIFIER STAGE
T D A S
ST TUNED TAPE M PRESET
Pro Logic DIGITAL DTS THEATER HALL SLEEP
dB
kHz
MHz MEM
ms
INPUT, FREQUENCY, VOLUME LEVEL, OPERATING INFORMATION, etc.
STEREO INDICATOR
TUNED INDICATOR
DOLBY( ) PRO LOGIC INDICATOR
PRESET NUMBER, SLEEP TIME, DELAY TIME DISPLAY
TAPE MONITOR INDICATOR
MEMORY INDICATOR
DOLBY( ) DIGITAL INDICATOR
DTS INDICATOR
■ FLUORESCENT DISPLAY ■ VIDEO 3 VIDEO/AUDIO INPUT JACKS
THEATER INDICATOR
HALL INDICATOR
OUT OUT
Additional video component
The VIDEO 3 jacks may be also connected to an additional
video component such as a camcorder, an LD plyaer or a
video game player, etc.
●
SPEAKER BUTTON/INDICATOR
CHANNEL SLECTOR BUTTON
ADJUST UP/DOWN
( / ) BUTTONS
TONE MODE BUTTON
SPEAKER MODE BUTTON
DYNAMIC RANGE BUTTON
HEADPHONE
JACK
STANDBY BUTTON/
INDICATOR
POWER SWITCH
VIDEO INPUT SELECTOR BUTTON
AUDIO INPUT SELECTOR BUTTON
TAPE MONITOR BUTTON
DIGITAL INPUT BUTTON
TONE DIRECT BUTTON/INDICATOR MASTER VOLUME
CONTROL KNOB
CINEMA EQ BUTTON
MEMORY/ENTER BUTTON
TUNING/PRESET UP/DOWN
( / ) BUTTONS
REMOTE SENSOR
6 CH DIRECT BUTTON
STEREO BUTTON
AUTO BUTTON
DSP MODE BUTTON
▲ ▼
ST TUNED TAPE M PRESET
Pro Logic DIGITAL DTS THEATER HALL SLEEP
dB
kHz
MHz
MEM
ms
BAND BUTTON
TUNING/PRESET MODE BUTTON
FM MODE BUTTON
AUDIO/VIDEO RECEIVER RD-6106
▲ ▼
VIDEO L - AUDIO - R
VIDEO 3
