LISTENING TO A PROGRAM SOURCE
O Op pe erra attiio on ns s
B Be effo orre e o op pe erra attiio on n
Select the desired input source.
3
Enter the standby mode.
The STANDBY indicator lights up.
This means that the receiver is not disconnected from
the AC mains and a small amount of current is retained
to support the memorized contents and operation
readiness.
To switch the power completely off, push the POWER
switch again.
The power is cut off and the STANDBY indicator
goes off.
Each time the STANDBY button on the front panel
or the POWER button on the remote control is
pressed, the receivers turns on to enter the operating
mode or off to enter the standby mode.
In the standby mode, if the INPUT SELECTOR
button is pressed, the receiver turns on
automatically and the desired input is selected.
The SPEAKER indicator lights up and sound can
be heard from the speakers connected to the speaker
terminals.
When using headphones for private listening, press
the SPEAKER button again to switch the speakers
off.
Each time the “AUDIO” button is pressed, the input
source changes as follows;
TUNER CD AUX
(frequency display)
Each time the “VIDEO” button is pressed, the input
source changes as follows;
VIDeo 1 VIDeo 2 VIDeo 3
When the TAPE MONITOR button is set to on so that
“TAPE M” indicator lights up, other inputs can not be
heard from the speakers.
To listen to an input source other than TAPE MONITOR,
be sure to set the TAPE MONITOR button to off.
TAPE MONITOR function
You can connect either a tape deck or a graphic equalizer to
the receiver’s TAPE MONITOR jacks.
To listen to the component connected to these jacks, set the
TAPE MONITOR button to on.
If you connect a 3-head tape deck, you can monitor the actual
recording, not the source sound.
For further details, refer to the operating instructions of the
component connected.
When selecting the 6 CH DIRECT as desired,
6-DIRECT is displayed and the 6 separate analog
signals from a decoder or DVD player connected to
this unit will be heard. You can use the tone controls
and volume control to adjust the signal. (If the TAPE
MONITOR button is set to on, it will be automatically
set to off.)
To cancel the 6 DIRECT function, press the 6 CH
DIRECT button again or select another desired input
source.
These 6 separate analog signals can be heard, only.
They cannot be recorded.

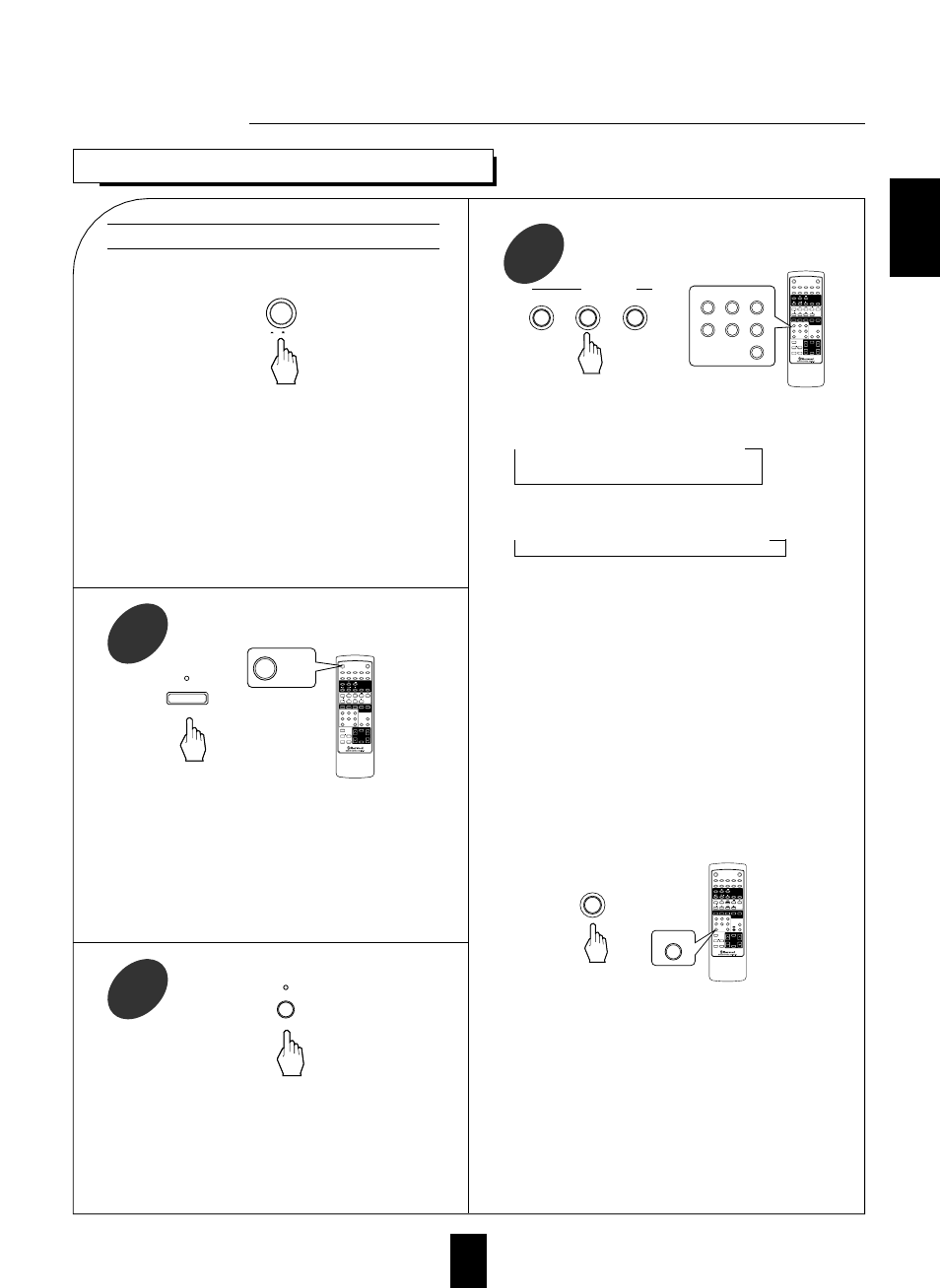

In the standby mode, turn the power on.
