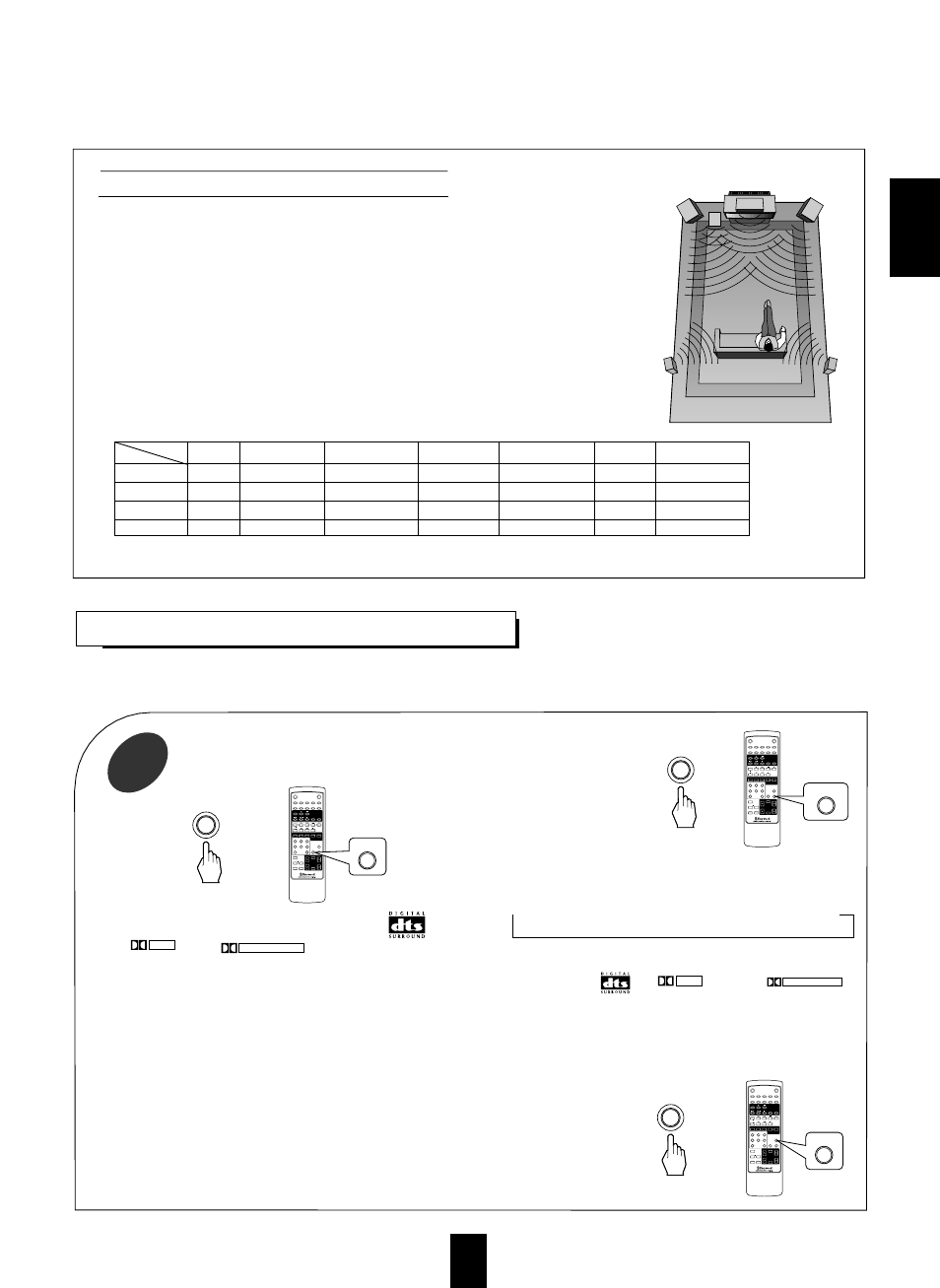

Speaker placement
ENJOYING SURROUND SOUND
Select the desired surround mode.
When selecting the DTS or Dolby Surround
mode.
1
When selecting a
surround mode
among THEATER,
HALL and DOLBY
VIRTUAL modes.
Surround sound effect will not work properly if the signal passes through a graphic equalizer.
Please refer to your equalizer operating instructions for guidance on switching off (or defeating) the equalizer.
FRONT
LEFT
SUB
WOOFER
FRONT
RIGHT
TV set
CENTER
SPEAKER
REAR
LEFT REAR
RIGHT
To obtain the best surround sound effect in your home, place the speakers as follows;
Front speakers: Place each front speaker about 1m (40 ) from the TV set.
Center speaker: Place the center speaker either above or below the TV set to assure
good visualization of center channel program.
Rear speakers: Place the rear speakers approximately 1m above the ear level of a
seated listener on the direct left and right of them or slightly behind.
Subwoofer: Reproduces powerful deep bass sounds. Place a powered subwoofer
anywhere in the front as desired.
The ideal surround system needs all the speakers listed above.
For optimum reproduction of DTS encoded material, DTS suggests that all speakers,
front, center and rear, should be capable of full range reproduction.
To enjoy surround sound best, the speakers to be connected are as follows;
POWER P.SCAN
DECK
DISPLAY SLEEP
T.TONE
D.TIME ADJUST
VIDEO3 DSP MODE AUTO
1 2 3 4 5
6 7 8 9 0
A
B
CD TUNER VIDEO1
AUX TAPE MON. VIDEO2 STEREO
INPUT SELECTOR 6CH DIRECT
DECK SEL.
SYS
CD INTRO REPEAT A B < <
DISC
PRESET USER FILE T.MON DISPLAY
EQUALIZER
CH LEVEL MASTER MUTE
CH SEL.
or
AUTO
AUTO
or
DSP MODE
POWER P.SCAN
DECK
DISPLAY SLEEP
T.TONE
D.TIME ADJUST
VIDEO3 DSP MODE AUTO
1 2 3 4 5
6 7 8 9 0
A
B
CD TUNER VIDEO1
AUX TAPE MON. VIDEO2 STEREO
INPUT SELECTOR 6CH DIRECT
DECK SEL.
SYS
CD INTRO REPEAT A B < <
DISC
PRESET USER FILE T.MON DISPLAY
EQUALIZER
CH LEVEL MASTER MUTE
CH SEL.
DSP MODE
POWER P.SCAN
DECK
DISPLAY SLEEP
T.TONE
D.TIME ADJUST
VIDEO3 DSP MODE AUTO
1 2 3 4 5
6 7 8 9 0
A
B
CD TUNER VIDEO1
AUX TAPE MON. VIDEO2 STEREO
INPUT SELECTOR 6CH DIRECT
DECK SEL.
SYS
CD INTRO REPEAT A B < <
DISC
PRESET USER FILE T.MON DISPLAY
EQUALIZER
CH LEVEL MASTER
MUTE
CH SEL.
or
STEREO
STEREO
To cancel the
surround mode for
normal stereo
operation.
Note:To avoid interference with the TV picture, use only magnetically shielded center and front speakers.
DTS Dolby Digital Dolby Pro Logic Dolby Virtual Other Surround Stereo 6 CH DIRECT
Front Yes Yes Yes Yes Yes Yes Yes
Center Yes Yes Yes - Yes - Yes
Rear Yes Yes Yes - Yes - Yes
Subwoofer Yes Yes Optional - Optional Optional Yes
Modes
When playing program sources bearing the “ ”,
“ ” or “ ” trademark such as
video, DVD or LD software, the DTS, Dolby Digital or
Dolby Pro Logic mode is automatically selected
according to the input signal.
When playing Dolby Digital program sources encoded
into the 2 channel format, the Dolby Pro Logic mode or
the Dolby Digital mode is automatically selected to
according to the encoding process. (In case the Dolby
Digital mode is automatically selected to, pressing the
AUTO button allows this unit to be switched to the
Dolby Pro Logic mode.)
To enjoy the DTS or Dolby Digital mode, be sure that
the program source and the corresponding digital input
are selected correctly. If not, no sound will be heard.
DOLBY
D I G I T A L
DOLBY SURROUND
Each time the DSP MODE button is pressed, the
surround mode changes as follows;
THEATER HALL VIRTUAL
Playing DTS or Dolby Surround program sources
(bearing the “ ”, “ ” or the “ ”
trademark) in THEATER or HALL mode will produce
better surround effects.
When the 6 CH DIRECT is selected as an input source,
the surround mode cannot be selected.
DOLBY
D I G I T A L
DOLBY SURROUND
