6
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942 and other world-wide patents issues and pending.
DTS and DTS Digital Surrou of Digital Theater Systems, Inc. '1996 Digital Theater Systems, Inc. All rights reserved.
Manufactured under license from Dolby Laboratories. Dolby , Pro Logic
and the double-D symbol are trademarks of Dolby Laboratories. Confidential
Unpublished Works. '1992-1997 Dolby Laboratories, Inc. All rights reserved.
MODEL NO. RD- 6106
AUDIO/VIDEO RECEIVER
MADE IN KOREA DESIGNED IN USA
SWITCHED
120V~60Hz
100W 1A MAX
AC OUTLET
OPTICAL COAX 1 COAX 2
AC INPUT 120V~60Hz 180W
SER. NO
T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C R u l e s .
O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s :
( 1 ) T h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d
( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d ,
i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n .
C A U T I O N R I S K O F E L E C T R I C S H O C K
D O N O T O P E N
W A R N I N G : " S H O C K H A Z A R D - D O N O T O P E N "
A V I S ; " R I S Q U E D E C H O C - E L E C T R Q U E - N E P A S O U V R I R "
AM LOOP
FM 75 Ω
ANTENNA
AUX PLAY REC PLAY REC PLAY VIDEO 1
VIDEO 2
SUB WOOFER
TAPE MON. VIDEO 1 CD VIDEO 2 MONITOR
PRE OUT
VIDEO OUT DIGI -LINK
VIDEO IN
VIDEO 1
SUB WOOFER CENTER
FRONT REAR
L
R
6-CH DIRECT INPUT FRONT SPEAKERS (8 Ω )
REAR SPEAKERS (8 Ω )
CENTER SPEAKER (8 Ω )
L
R
DIGITAL IN

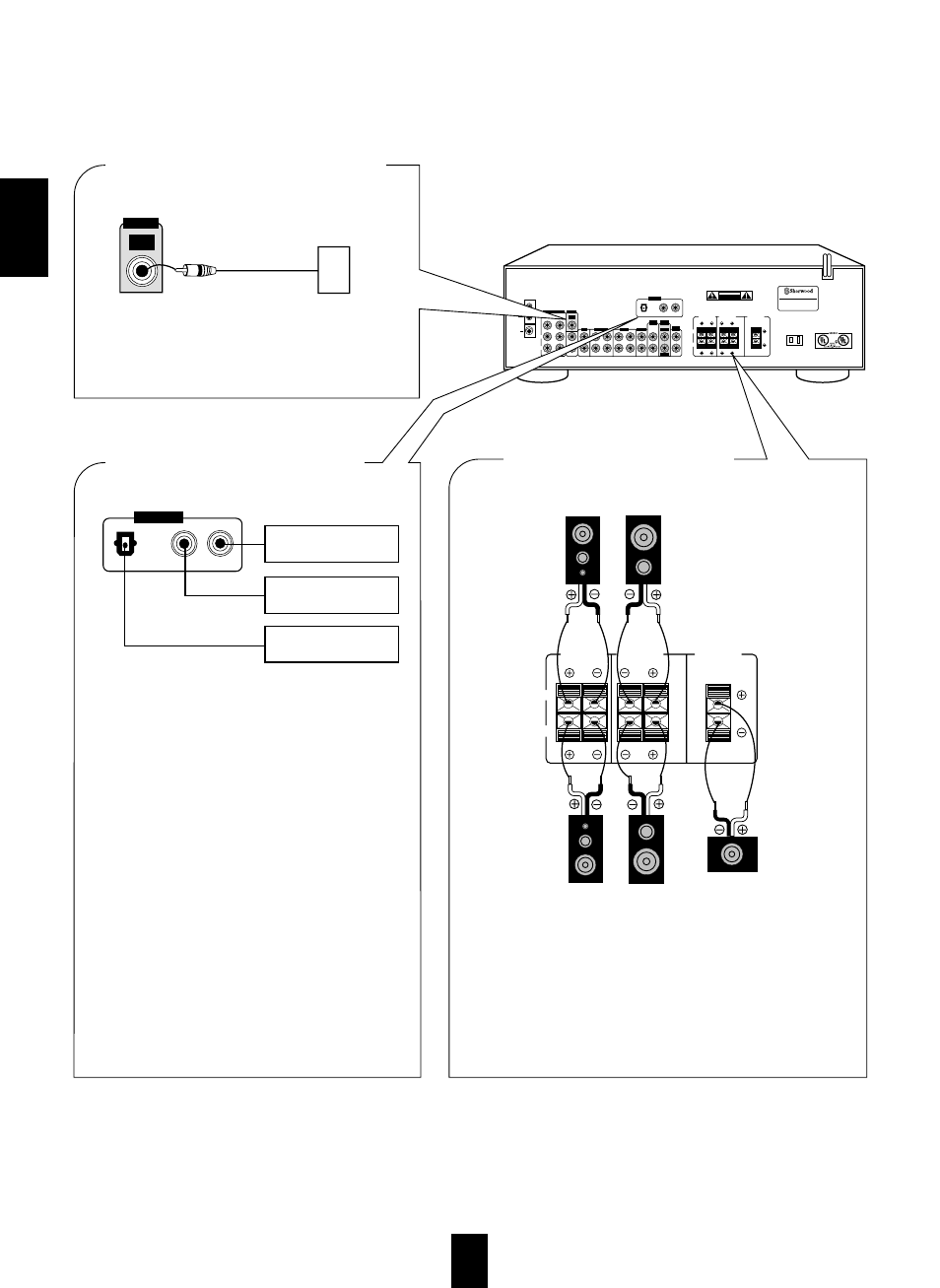

■ CONNECTING DIGITAL INPUTS
● The COAXIAL or the OPTICAL DIGITAL Out's of
the components that are connected to CD, VIDEO 2
and VIDEO 3 of this unit can be connected to these
DIGITAL INPUTS.
● A digital input should be connected to the components
such as a CD player, LD player, DVD player, etc. that
are capable of outputting a signal in the DTS, Dolby
Digital or PCM digital formats.
● For details, please refer to the operating instructions
of the component to be connected.
● When making COAXIAL DIGITAL connections use
75 Ohm Cable. Do not use standard audio patch cords.
● Not all of the commercially available Fiber Optic
cables are suitable for use with this receiver. If you
have a question as to the suitability of any cable,
please check with your dealer or a qualified service
organization.
● Remove the protective cap before making nay
OPTICAL connections. Reinsert the protective cap
when not using the OPTICAL Jacks.
● The speaker terminals are designed to accept either bare wire or
banana plugs.
● If using bare wire, take care to not allow the + and - wires to touch
or short.
● Connect the speaker wires firmly and correctly according to the
channel and position. Observe the proper polarity (+ and -).
● This receiver is designed for use with speakers rated at 8 ohms
impedance or above.
■ CONNECTING SPEAKERS
Front right
Front left Rear left
Powered subwoofer
■ SUBWOOFER PRE OUT connection
● To emphasize the deep bass sound, connect a powered
subwoofer.
FRONT
SPEAKERS
(8 Ω )
REAR
SPEAKERS
(8 Ω )
CENTER
SPEAKER
(8 Ω )
L
R
Rear right
Center
SUB
WOOFER
PRE OUT
OPTICAL COAX 1 COAX 2
DIGITAL IN
Component with
COAXIAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
