Chapter 1
Before You Begin the Installation
3
Front Panel Features
This section contains an illustration of the front panel, along with descriptions of the
features.

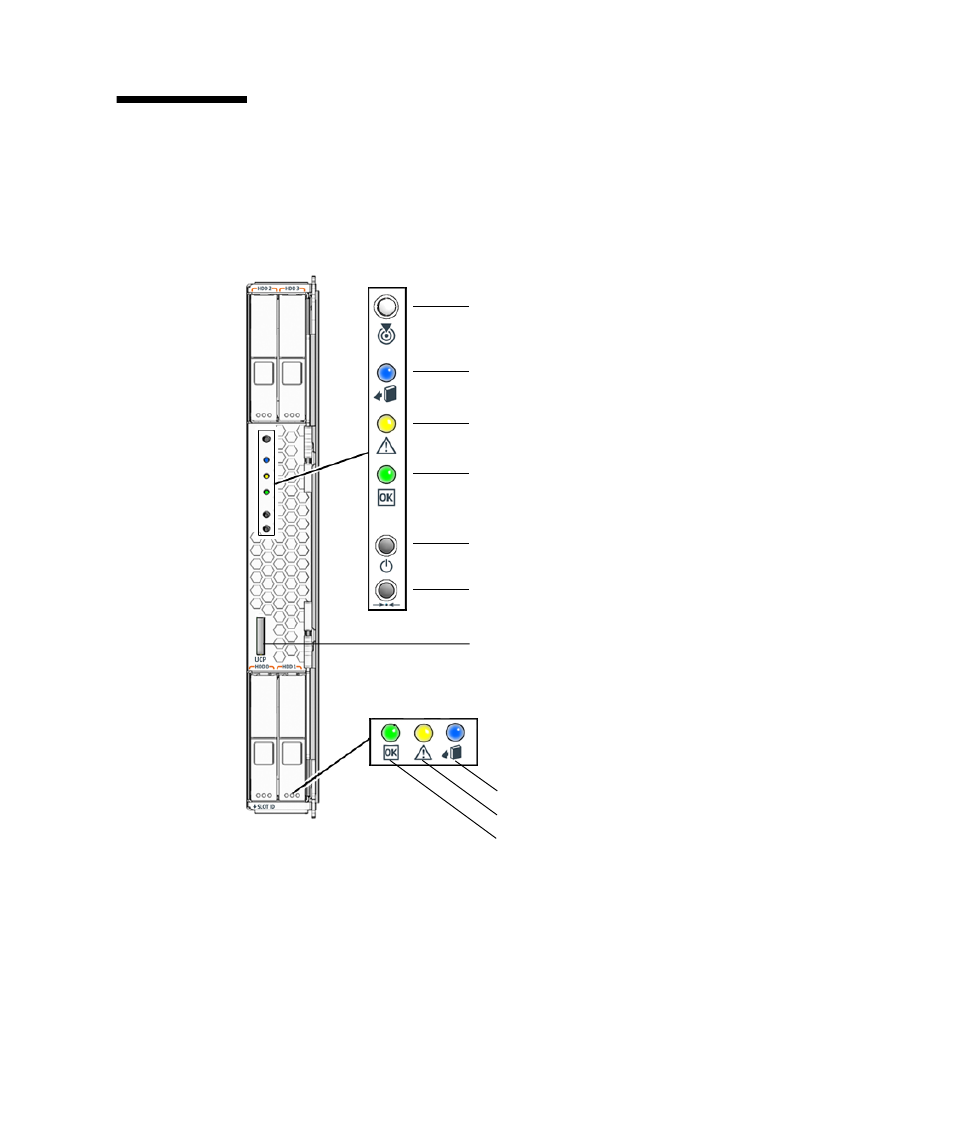

FIGURE 1-1
Sun Blade T6300 Server Module Front Panel
Universal connector port
Locator LED
Ready to Remove LED
Service Action Required LED
OK LED
Power button
Reset button (nonfunctional)
Drive OK LED
Fault LED (not used)
Drive Ready to Remove LED
