DSL/Cable Router User Guide
80

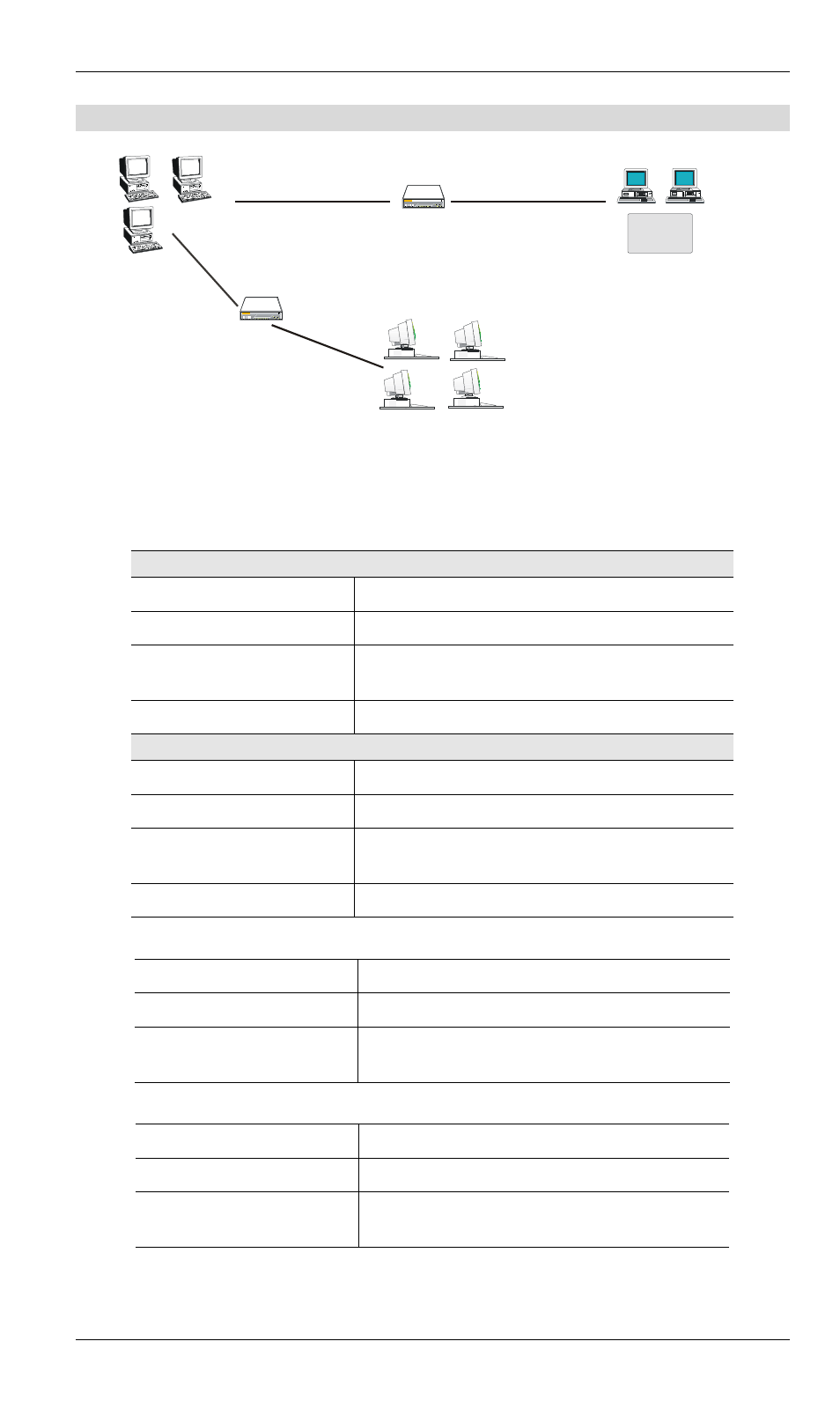

Static Routing - Example
Router B
(192.168.1.90)
(192.168.2.70)
Router A
Segment 0
Segment 2
Segment 1
DSL/Cable
(192.168.254.xx)
(192.168.1.xx)
(192.168.254.1)
(192.168.2.xx)
(192.168.1.80)
Router
(192.168.254.254)
Figure 46: Routing Example
For the DSL/Cable Router's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the DSL/Cable Router requires
2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address
192.168.1.0
Network Mask
255.255.255.0 (Standard Class C)
Gateway IP Address
192.168.254.1 (DSL/Cable Router's local
Router)
Metric
1
Entry 2 (Segment 2)
Destination IP Address
192.168.2.0
Network Mask
255.255.255.0 (Standard Class C)
Gateway IP Address
192.168.254.1 (DSL/Cable Router's local
Router)
Metric
2
For Router A's Default Route
Destination IP Address
0.0.0.0
Network Mask
0.0.0.0
Gateway IP Address
192.168.254.254 (DSL/Cable Router's IP
Address)
For Router B's Default Route
Destination IP Address
0.0.0.0
Network Mask
0.0.0.0
Gateway IP Address
192.168.254.254 (DSL/Cable Router's local
router)
