– 7 –

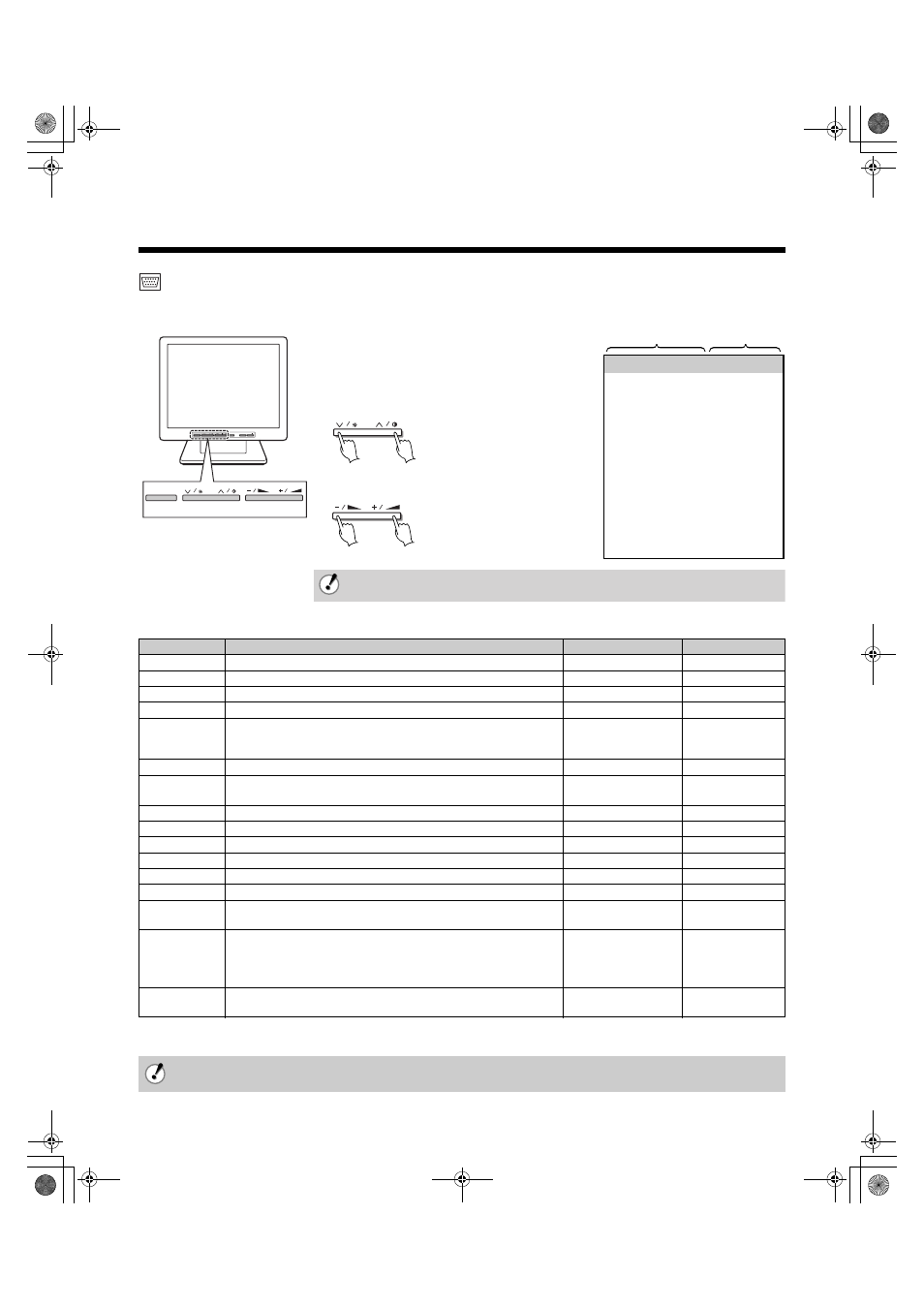

Computer display adjustment

: Adjustment method for VGA signal selection

Operation

Adjustment item

* Use this when pressing the automatic display adjustment control (AUTO) (page 5) does not achieve the desired result. Also, by pressing the

automatic display adjustment control (AUTO), these values will be changed.

Item

Description

Parameters

Default setting

Brightness

Adjust the brightness.

0 – 51

25

Contrast

Adjust the contrast.

0 – 51

25

H-Position*

Adjust the horizontal position of the display.

0 – 51

25

V-Position*

Adjust the vertical position of the display.

0 – 51

31

Clock*

Adjust the clock (when vertical lines can be seen etc.).

• Make fine adjustments until the vertical lines disappear. Adjusting the

clock will also change the width of the display.

0 – 51

25

Phase*

Adjust the phase (when the screen is flickering, etc.).

0 – 51

13

Color Temp.

Select the color temperature.

9300

°

K, 6500

°

K,

User color

User color

User Color R

Adjust the Red (when Color temp. is set to User color).

0 – 51

51

User Color G

Adjust the Green (when Color temp. is set to User color).

0 – 51

51

User Color B

Adjust the Blue (when Color temp. is set to User color).

0 – 51

51

OSD H-Pos.

Adjust the horizontal position of the adjustment panel.

0 – 51

25

OSD V-Pos.

Adjust the vertical position of the adjustment panel.

0 – 51

25

Volume

Adjust the volume.

0 – 51

30

PIP

Select to use Picture in Picture, showing an additional smaller
display in the upper left corner.

Composite, S-Video,

Component, Off

Off

Language

Select the language of the adjustment panel.

English, Chinese,

French, German,

Spanish, Italian,

Japanese

English

Recall

Pressing the +, – buttons together will return the settings to the
default value.

• The settings will be retained even if the unit is switched off, but if the power supply is disconnected, settings will return to default.

• The default language display is English. If the language setting is changed, the menu display will be in the language chosen.

Setting value

Adjustment item

POWER

MODE

AUTO

MENU

MENU

1

2

3

VGA IN

1024x768@60Hz

Brightness
Contrast
H-Position
V-Position
Clock
Phase
Color Temp.
User Color R
User Color G
User Color B
OSD H-Pos.
OSD V-Pos.
Volume
PIP
Language
Recall

25
25
25
31
25
13

User color

51
51
51
25
25
30

Off

English

1

Press the adjustment control (MENU).

R

At the top of the screen, an adjustment panel as

shown in the diagram to the right will be
displayed.

2

Choose the adjustment item.

3

Change the setting value.

4

If necessary, repeat steps

2

and

3

.

Down

Up

• Pressing the adjustment control (MENU) again, or waiting for a number of seconds will cause

the adjustment panel to disappear.
