– 4 –

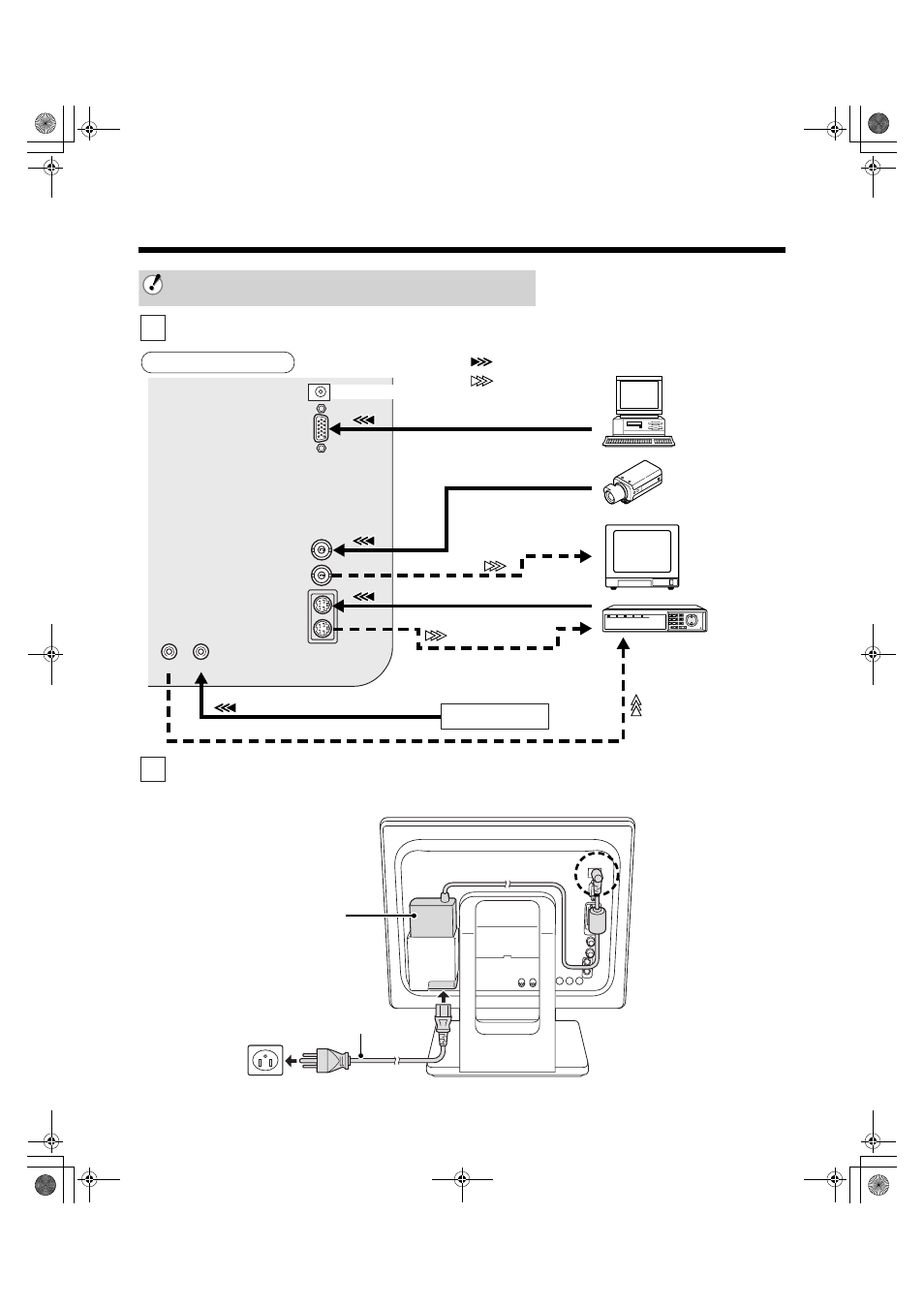

Connection instructions

Connect the devices to the connection terminals at the rear panel.

1

2

• When connecting, ensure the power supply to each unit is switched off.

BNC IN

DC IN

VGA IN

BNC OUT

Y/C IN

Y/C OUT

AUDIO OUT AUDIO IN

Monitor TV etc.

Hard-disk recorder etc.

AUDIO LINE IN

VGA OUT

BNC OUT

Y/C (S-VIDEO) OUT

Y/C (S-VIDEO) IN

AUDIO LINE OUT

BNC IN

CCD Camera etc.

(Included VGA connecting cable)

Computer

: Input signal

: Output signal

Amplifier etc.

Connection example

• The other devices and connection cables required are sold separately.

(Refer to

2

for steps.)

Connect the power cord (DC 12V).

Connect the included AC adapter plug to the power input terminal (DC IN), and then connect the AC cord between the
AC adapter and AC outlet.

• Once the power cord is

connected, the power supply will
reach the main unit.

AC adapter
(Included)

AC cord (Included)
