– 10 –

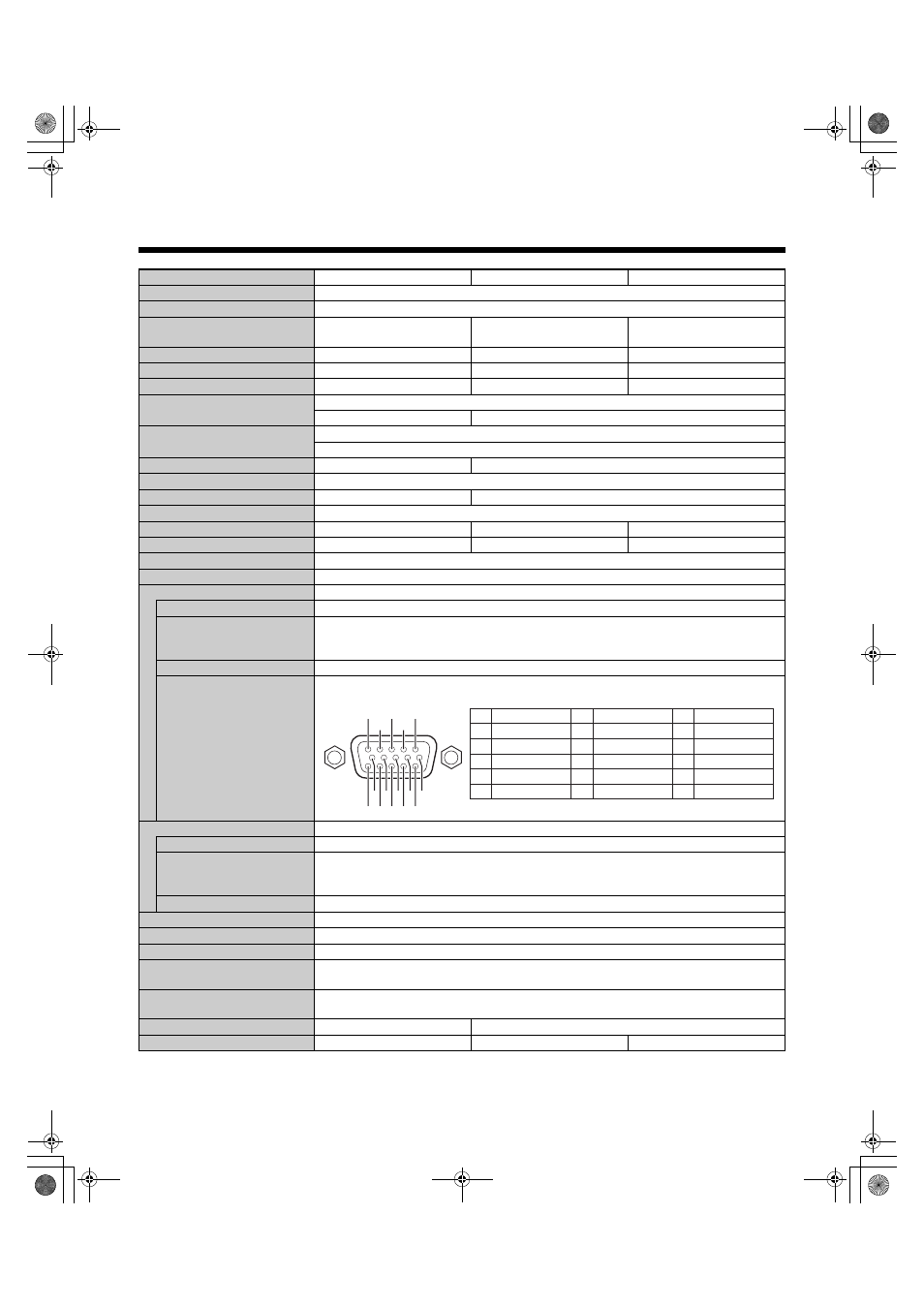

Specifications

Features and specifications are subject to change without prior notice or obligations.

VMC-L1015

VMC-L1017

VMC-L1019

Type

Color video monitor

Color system

NTSC, PAL

LCD display

15" active matrix

TFT LCD panel

17" active matrix

TFT LCD panel

19" active matrix

TFT LCD panel

Screen size

381 mm diagonal

432 mm diagonal

480 mm diagonal

Viewable size (H x V)

304 x 228 mm (4:3)

337 x 270 mm (5:4)

376 x 301 mm (5:4)

Pixel pitch (H x V)

0.297 x 0.297 mm

0.264 x 0.264 mm

0.294 x 0.294 mm

Horizontal resolution

500 TV lines or more (Y/C input mode)

1024 x 768

1280 x 1024

Scanning frequency

Horizontal: 30 K – 80 KHz

Vertical: 56 Hz – 75 Hz

Contrast ratio

350:1

500:1

Brightness

250 cd/m

2

Response time Tr/Tf

6/17 ms

15/10 ms

Display color

16.7 M

View Angle L/R

60°/60°

88°/88°

85°/85°

View Angle Up/Down

40°/60°

88°/88°

Display monitor timing

VESA compatible

Display mode

VIDEO & S-VIDEO & VGA

Input connector

Video signal (BNC IN)

Composite sync signal, 1.0 Vp-p, 75

BNC connector

S-Video signal (Y/C IN)

Separate Y/C signal, mini-DIN connector

Y signal: 1.0 Vp-p, 75

negative sync

C signal: 0.286 Vp-p,75

negative sync

Audio signal (AUDIO IN)

–6 dBs (400 mVrms), RCA pin

VGA signal (VGA IN)

VGA Monitor Connector (15-pin)

Red signal, Green signal, Blue signal: 0.7 Vp-p, 75

, positive sync

Output connector

Video signal (BNC OUT)

Composite sync signal, 1.0 Vp-p, 75

BNC connector

S-Video signal (Y/C OUT)

Separate Y/C signal, mini-DIN connector

Y signal: 1.0 Vp-p, 75

negative sync

C signal: 0.286 Vp-p,75

negative sync

Audio signal (AUDIO OUT)

–6 dBs (400 mVrms), RCA pin

Menu language

English/Chinese/French/German/Italian/Japanese

Audio power output

Approx. 1 W

Power input

DC 12 V/3 A

Operating condition

Temperature: 0°C – 40°C

Humidity: 20% – 85% (non-condensation)

Storage condition

Temperature: –20°C – 60°C

Humidity: 20% – 85% (non-condensation)

Power consumption

Approx. 40 W

Approx. 50 W

Weight (Adaptor included)

4.0 kg

5.0 kg

6.1 kg

Pin No.

1

2

3

4

5

Red signal

Green signal

Blue signal

No use

No use

GND (Red)

GND (Green)

GND (Blue)

No use

GND (sync)

No use

SDA

H sync

V sync

SCL

Pin No.

6

7

8

9

F

Pin No.

G

H

I

J

K

Signal

Signal

Signal

F

6

9 8 7

G

K J I H

5

4

3

2

1
